Product Specifications
Prod Model: |
TZJD-1325BD |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engraving Machine Type: |
CNC Engraving Machine |
Usage: |
Woodworking |
Power: |
High Power |
Drive Type: |
Stepper Drive |
Certification: |
SGS, CE, ISO 9001 |
Control: |
CNC |
Current: |
AC |
Condition: |
New |
Product Description

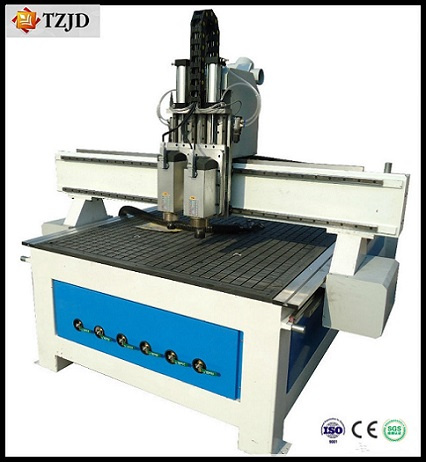

Woodworking machine CNC Router machinery
www.tzjdcnc.com cnc router machine, pneumatic cnc woodworking machine, wood working engraver.
1. The CNC Engraver is with two motors and unique two rack driving,
No deformation and vibration after a long-time work within high speed.
2. Vacuum absorption table, which can guarantee to adsorb the wooden material firmly.
3. Application of driver with high definition subdivision ensures fast speed and high accuracy.
4. Three Axis under the control of Type3 software, high automation.
5. Imported Taiwan HIWIN/PMI linear guide rail, ensure the machine stable movement.
6. Automatic oiling system fulfills the periodic lubrication maintenance just by a slight press.
Description | Paramater |
TZJD-1325BD |
Working Area (X*Y*Zmm) | 1300mmx2500mmx200mm |
X, Y Structure | Gear Wheel Transmission, Shaft Linear Bearings |
Z Structure | Ball Screw, Shaft Linear Bearings |
Table Surface | Vacuum absorption table with vacuum pump system |
Max Engraving Speed | 20000mm/min |
Frame | Cast Square tube welding |
Spindle power(KW) | 3kw/4.5kw/5.5kw/6kw/7.5kw/9kw *2 |
Max. Power Consumption(Without spindle) | 2.0KW |
Spindle Speed | 6000-24000rpm |
Resolution | 0.005mm |
Repeatability | 0.01mm |
Voltage | AC220V,50/60Hz,1PH(option,380V 3PH) |
Drive motor | Stepper/Servo/Yaskwa |
Working Dictate | G Code*.u00*.mmg*.plt |
Operating system | Dsp System/Syntec/LNC |
Necessary function | Oil lubrication system |
Interface | USB |
Flash memory | 128M(U Disk) |
Software Compatability | Type3,Ucancam, Artcam Software |
Running Environemt | Temperature: 0-45 |
Relative humidity: 30%-75% |
Working software | Windows98/2000/xp/7/8 |
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking machine, advertising machine, marble/stone engraving machine, laser engraving cutting machine, metal mould machine, double heads engraving machine, cylinder engraving machine, etc.
The company was one of companies that can research & develop the advanced CNC Machines, which have laid the foundation in the domestic market. Our machines have already exported to USA, Canada, England, Australia, Russia, India and so on.
Tengzhou Jianda CNC Machine Co., Ltd Is the professional CNC router manufacturer. We adopt many computerized numerical patents. Our company is devoted in the research and development of engraving CAD/CAM technology and CNC technology and have obtained remarkable achievement in the design of precise engraving machine as well as artistic carving.
Today, TZJD CNC has developed to a large worldwide Manufacturing Group; And become an excellent leader of the world in this field. Our products have covered woodworking industry, advertising decoration, making label industry as well as crafts and gifts fields. We wishes to develop the double-win together with our customers. Welcome to your valuable advise.
Our products are famous for its low price, good quality and good after sales service. We are still try our best to produce innovative products to you.
