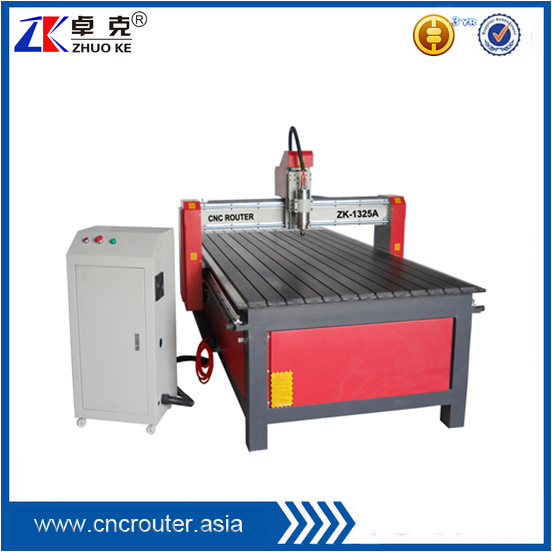

woodworking machinery with NC-Studio (ZK-1325)
1.Application:
Woodworking Applications:
waving board, cabinet door, solid wood door, craft wood door, no-paint door, folding screen, craft window, shoe polisher, game machine cabinet, Ma-jiang Table, computer table and panel type funiture.
Advertising Applications:
making advertising products made from Brand Board, Acrylic cutting, mould and some
other materials processing.
Mould Area:
copper engraving, aluminium and iron engraving, and nonmetallic moulds, like: scagliola,
sandstone, plastic board, PVC pipe, wood sheet etc.
Other Applications:
Art and craft fields, embossment, photo engraving and so on.
2.Configurations:
Square tube machine bed, cast aluminium or iron gantry,3.0KW water cooling
spindle, Artcam,Type3 and UCANCAM Software, NC-Studio control system, 86BYG-450A stepper motor for X Y Z axises, Leadshine MA860H driver, Taiwan Hinwin or PMI
linear square guide rail (φ20) for three axises, gear-wheel for X and Y axis,TBI ballscrew for Z axis, aluminium table,dust collector.
3.Features:
3.0KW water cooling spindle has high precision , long life time , steady working ,
easy to start up .
Three axis all adopt imported Taiwan HINWIN or PMI linear square guide rail,TBI ballcsrew
and bearings, which make the machine work steadily, has heavy loading, good working
stability, high precision, and long life-span of the whole machine.
Good software compatibility, it could compatible with many softwares, like: Type3/Artcam/
Ucancam/CAD, etc.
Adopt high speed stepper motor and drivers, two motors for Y axis, the maximum speed is
35m/min.
Oiling system is easy to operate by one key press.
the separate control system makes the machine can be operated easily.
This model machine has high speed, high efficiency, the maximum speed can reach to
above 35m/min, it can reach to 25 m/min when processing wave board, it can match 4-5 common type machines.
4.Technical Parameters:
| Model: | ZKM1325A |
| Machine body: | Square tube |
| Guideway: | XYZ-axis use linear guideway |
| X,Y-axis working area : | 1300*2500mm |
| Body dimensions(with bracket): | 360*190*160cm |
| Z-axis working area: | 200 or 250 mm |
| Max. Feeding height: | 200mm or bigger
|
| Cut thickness of material: | ≤100mm |
| Max. Speed: | 25000mm/min |
| Working speed : | 0-12000mm/min |
| Mechanical precision: | 0.01mm |
| Compatible Software: | Type 3 ,UCANCAM V9 , Artcam software |
| Max. Power consumption: | 3.0KW |
| Power source: | AC220/50HZ or 380V/50HZ |
| Driver type: | Stepper motor 86BYG-450A |
| Memory: | NC-Studio |
| Spindle: | 3.0KW water cooling |
| Spindle speed: | 0-24000rpm/min |
| Blade diameter: | 3.175mm,4mm,6mm, 12.7mm |
| Control system: | PCI NC-Studio control system |
| Command: | G code ,u00,mmg,plt,HPGL |
| Running circumstance temperature: | 0-45°C |
| Relative humidity: | 30%-75% |
| Optional: | Rotary axis , vacuum table and dust collector |
After-sale service
1.with machine , have detailed machine manual , software manual , controller manual ,
especially for new clients , our factory make a vivid traing CD
2. 24 hours , on line or phone , technical support
3. welcome to visit our factory , learning machine face to face for free.
4. one year , freely guarantee , during one year , if any spare parts broken in machine ,
our factory freely change a new one for you
5.longlife time freely provide technical support
