Product Specifications
| Prod Model: |
klb5545 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Worm and Wormwheel |
| Toothed Portion Shape: |
Curved Gear |
| Manufacturing Method: |
Rolling Gear |
Product Description

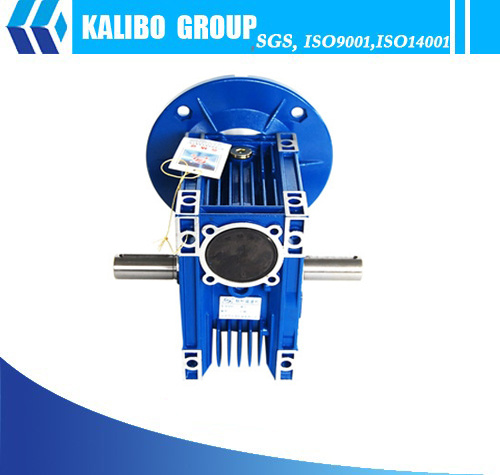

Worm Gear Speed Reducer (RV SERIES)
Features
Wide transmission rate, strong output torque
Structure: Base-mounted, input shaft, input flange, additional single or double output shafts
Compact mechanical structure, light weight, small volume
Good temperature change resistance
Smooth operation with lower noise or vibration
Easy mounting, free linking, high efficiency
Wide range of application
Applications
Widely used in material handing, automation, machine tool, aerospace, food, packing, pharamceutical, printing industry, conveyor belt and other related industries toworkflow of production line
Technical data:
1) Sizes: 025 -030-040-050-063-075-090-110-130-150
Available versions for single unit,
NMRV - fitted for motor flanged coupling
NRV - with input shaft,
NMRV-E motor flanged coupling with worm extension shaft,
NRV-E with double extension worm shaft,
Power up to 15 kW
2) Speed ratio, 5 7.5 10 15 20 25 30 40 50 60 80 100 for single unit of gear box
3) Input power: Ranging from 0.06 to 15kW
4) Output torque ranges from 2.6 to 1, 195N.
5) Ground worm shaft 20CrMnTi with carburizing and quenching. The hardness of surface is 56-62HRC with carbonized layer 0.5-0.8mm;
Worm wheel: The material of the worm mandrel is HT250, and worm ring gear, ZQSn10-1
6) Quality control complies with ISO 9001 quality management system.
|
Our advantages |
|
Manufacture and export experience |
More than 17 years |
|
Total staff |
660 people |
|
Total Annual Sales Volume |
US$10 Million - US$50 Million |
|
Total Annual Purchase Volume |
US$1 Million - US$5 Million |
|
Export Percentage |
91% - 100% |
|
Factory Size |
150, 000 square meters |
|
Number of R& D Staff |
More than 70 people |
|
Number of QC Staff |
More than 10 people |
|
Management Certification |
ISO 9001: 2000 |
KALIBO HOLDING GROUP Co., Ltd is a joint-stock enterprise. It was established in 1995, locating in the Heaven of the world "Hangzhou". And the following companies are inseparable part of it:
Zhejiang Kalibo Precision Machinery Co., Ltd; Zhejiang Kalibo Trading Co., Ltd; Zhejiang Huagang Chain Drive Co., Ltd; HangZhou Kashuai Trading Co., Ltd etc more than ten subsidiary companies. It is a one of the modern, non-regional enterprises group collection in science, industry, trade and export field.
It is main committed to designing, manufacturing and exporting these professional CNC Machine tools(Gear Hobbing Machines), Chain drive series(roller chains, drive chains, conveyor chains, special non-standard chains), Mechanical equipments, Advertising printing machines, Heat transfer-printing machines, Cash washers, electric balances and relevant mechanical accessories etc; As well as services: Above these Electrical and mechanical equipment installation, commissioning, repair, maintenance, etc.
Above the products, hope to find a possible way to cooperate with you.
Any question or advice, please feel free to mail or dial us at your convenience.
