| Price: | US $ 100000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T |

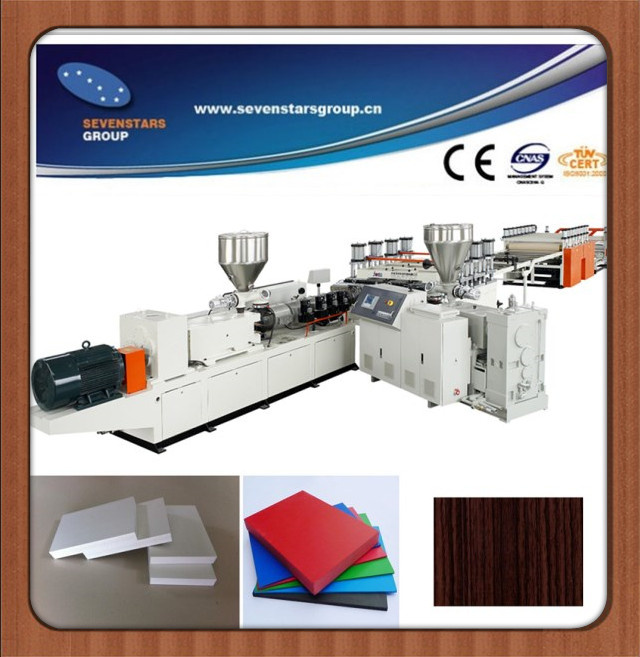

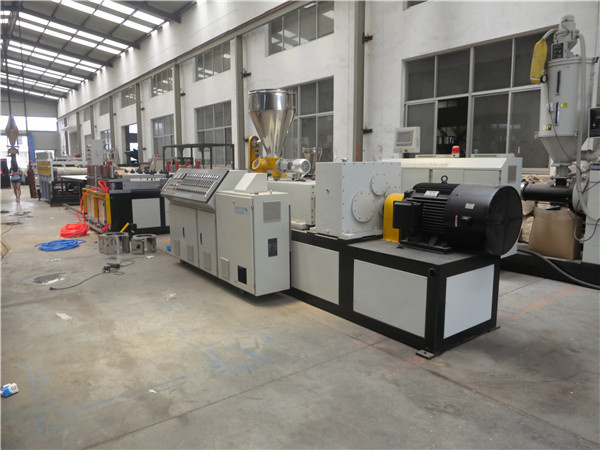

Specification of Pvc foam board Machine | ||
Name | Description | DETAILS |
1 | SJSZ 80/156 Conicaltwin Screw Extruder | ABB frequency converter, SIEMENS conto actor, OMRON Japan |
2 | Mould | |
3 | Foaming Machine | 4 phase calibrating device |
4 | Cooling tank and bracket | Length:6000mm |
5 | Haul-off unit Gear transmission | 8 couples (Cylinder clamping and loosening) |
6 | Automatic Cutting unit | 1set (controlled by ABB inverter) |
7 | Stacker machine | 1set |
8 | Colling Chiller 20P | 1set |
9 | Dust exhaust device | 2 sets |
Auxiliary machine | ||
1 | 500/1000Mixer | 500L or 1000 L mixer (controlled by Inverter) |
2 | 500 Grinder | Feeder controlled by ABB Inverter, With automatic dust collector |
3 | SWP 380 Crusher | Rotation blades 9 pcs |
ATTENTION | ||
1 | Main motor frequency controller :Siemens or ABB | |
2 | Temperature controller : RKC | |
3 | AC controller :Schneider | |
4 | Thermal overload relay :Schneider | |
5 | Switch :Schneider | |
6 | All electrical units :OMRON/RKC/Siemens | |

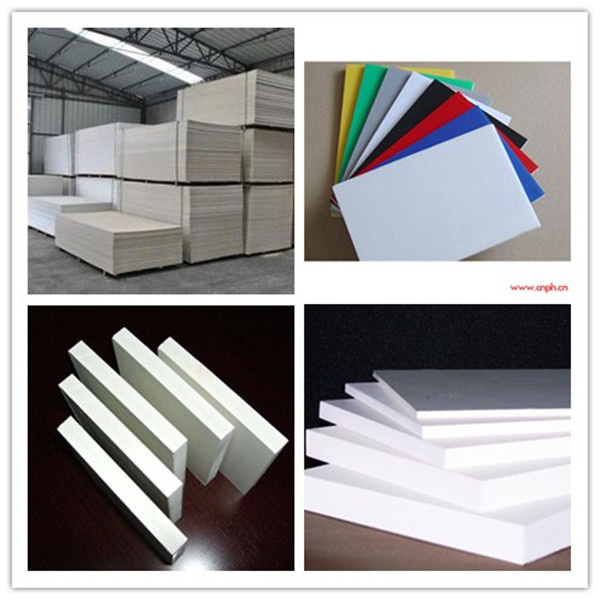

| Specifications | |||||||||||
| Standard board size | 1220mm*2440mm (48"*96") | LONGTH CAN BE ADJUSTED ACCORDDING TO CUSTOMERS' REQUIREMENTS | |||||||||
| Thickness: | 10mm (3/8") | 12mm | 13mm (1/2") | 15mm | 16mm (5/8") | 18mm | 19mm (3/4") | 20mm | 24mm | 25mm | 25.4mm (1") |
| Densities: | 0.37kg/cm3-1.40kg/cm3 | ||||||||||
| Surface: | smooth/smooth | smooth/wood grain pattern(timber ridge) finish | |||||||||
| Colours: | WHITE or ALL COLOR FEASIBLE ACCORDDING TO CUSTOMERS' REQUIREMENTS | ||||||||||
| Tolerances: | densities: | +/- 0.03 | |||||||||
| length: | -0 to +10mm | ||||||||||
| width: | -0 to +5mm | ||||||||||
| thickness: | +/- 4% | ||||||||||
| Prod Model: | BDX |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor Of The Machine: | Siemens |
| Electric Elements: | Siemens and Schneider |
| Foam Board Width: | 915mm, 1220mm, 1830mm, 2050mm |
| Foam Board Thickness: | 4-30mm |
| Surface Treatment: | Hot Stamping |
| Machine Length: | 25m |
| Capacity Of The Machine: | 350-400kg/H |
| Product Type: | PVC Board |
| Board Layers: | Single Plate |
| Automation: | Automatic |
| Computerized: | Computerized |
| Certification: | ISO9001:2008 |
