Product Specifications
| Prod Model: |
WS-PDR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inductance: |
1uh~220uh |
| Rated Current: |
0.27A~4.7A |
| Process: |
Wire Wound |
| Material: |
RoHS |
| Package: |
SMD |
| Lead Time: |
Fast |
| Structure: |
Core |
| Type: |
Choke Inductor |
Product Description

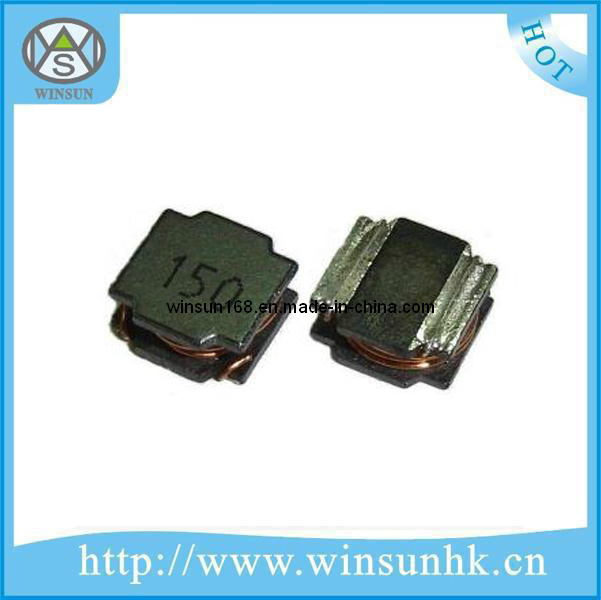

WS-PDR SERIES UNSHIELDED WIRE WOUND SMD POWER INDUCTOR
FEATURES:
Low profile
High saturation current
Magnetic shielded
SMT type
APPLICATIONS:
Portable communication equipment
Notebook Computer
LCD television
Power supply for VTRs
DC/DC converters etc.
SPECIFICATIONS
Inductance Range:1uH~270uH
Rated Current : 0.27A~4.7A(Max)
DCR : 0.018~4 Ω (Max)
Operating temperature range :40 to +85°C
Storage temperature range: 10 to +40°C
DIMENSIONS : (unit: mm)
ELECTRICAL CHARACTERISTICS:
(WS-PDR Series)
Payment and Shipping:
1, Lead time about 3~5 days.
2, Payment: T/T; Western union; Paypal ect.
3, Shipping: by DHL, Fedex, TNT, UPS, EMS ect
