Product Specifications
| Prod Model: |
XK-450 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
55/75kw |
| Reducer: |
Hard Tooth Gear Box |
| Bearing: |
Bearing Rolling |
| Roller: |
Cast Irol |
Product Description

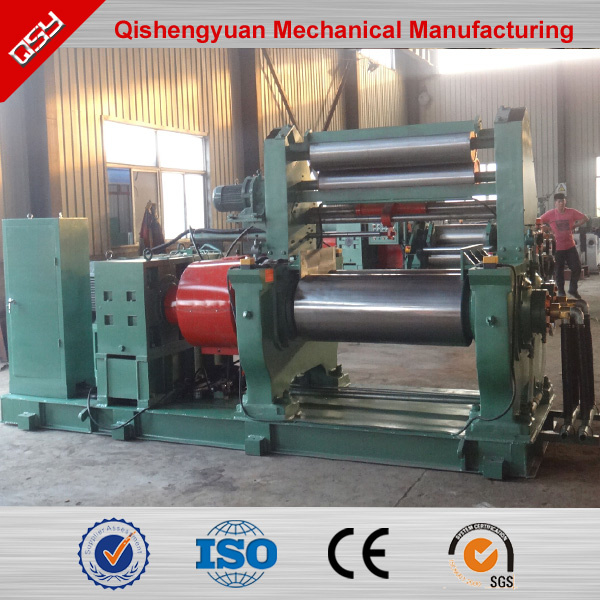

XK-450 rubber mixing mill
1.Main features:
1. Special design with the automatic blender for rubber auto mixing, which will reduce the workers'
working load.
2. The roller adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wear-proof with long service life. The internal cavity is processed to make temperature well proportioned to the roller surface.
3. The machine is also equipped with an emergency brake device. When an emergency arises, just push the emergency stop button, the machine will stop immediately. It is safe and reliable.
4. The machine is equipped with an overload protection device to prevent the main components from being damaged.
5. The transmission system adopts a hardened tooth-surface reducer, which has a compact structure with higher transmission efficiency, lower noise and longer service life.
6. The base frame is a whole framework, which is convenient for installation.
7. The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.
2.Features
1.terials of Rolls :Cast iron alloy (LTG-H), after quenching and precision processing,hardness HS,68~75.
2.in bearing : Dual-listed rolling bearings, which reduces energy consumption by 30%.
3.ll gap adjustment : electric automatic
4.tor: Frequency control of motor speed
5.ducer: Airtight leaching oil type, ZSYE reducer (There are a variety of choice, the price is different), Almost no noise, safety
Photos:
Specification:
Mode | XK-160 | XK-230 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | XK-550B | XK-660 |
working diametetr of rolls
(mm) | 160 | 230 | 250 | 300 | 360 | 400 | 450 | 560/510 | 550 | 660 |
working length of rolls
(mm) | 320 | 600 | 620 | 750 | 900 | 1000 | 1200 | 1530 | 1500 | 2130 |
front roll surface speed
(m/min) | 8.95 | 10.21 | 14.1 | 15.1 | 16.25 | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 |
| Rfiction ratio | 1: 1.35 | 1: 1.19 | 1: 1.17 | 1: 1.25 | 1: 1.25 | 1: 1.27 | 1: 1.27 | 1: 1.2 | 1: 1.22 | 1: 1.24 |
Max. nip
(mm) | 4.5 | 7 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 |
| Capacity per batch(kg) | 1-2 | 6-10 | 8~15 | 15~20 | 20~25 | 18-35 | 25-50 | 35~50 | 50~60 | 165 |
Motor power
(kw) | 5.5 | 15 | 18.5 | 22 | 30 | 37 | 55 | 90 | 110 | 245 |
Dimensions:
L × W × H(mm) | 1380× 860
× 1320 | 2800× 1200
× 1120 | 3400× 1500
× 1500 | 3400× 1500
× 1550 | 3780× 1850
× 1750 | 4350× 1850
× 1785 | 5200× 2380
× 1840 | 5845× 2284
× 1978 | 5870× 2475
× 2045 | 7465× 3662
× 2080 |
| Keyword | Rubber Mixing Mill, Rubber Mixer, Rubber Machine, Rubber Mixing Machine |
Qingdao Qishengyuan Mechanical Manufacturing Co., Ltd. Was located in beautiful Jiaonan the west coast of Qingdao city Shandong province China. Our company is specialize in Rubber machinery production enterprise with R & D, design, production, sales and service.
The company covers an area of 12000 square meters, construction area of 8000 square meters, with self import and export rights, and has passed the ISO9001: 2008 & CE quality management system certification, Great Service is our mission. Hight Quality is our Obligation.
Our Company by virtue of years of production technology, We have rich experience technicians, We specialized produce Rubber two roll mixing mill machine, Rubber crusher mill machine, Rubber Kneader machine, rubber calender machine, rubber press vulcanizer machine, rubber refiner machine, waste tire recycling plants, Batch off cooling plants, rubber cutting machine, rubber strainer machine, Tires production line, Conveyor belt production line and so on.
We can design the machine as customer requires.
