Product Specifications
| Prod Model: |
PY |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue,Black,White,Grey |
| Thread: |
BSPP,BSPT,NPT |
| Button: |
Oval,Round |
| Logo: |
OEM,Eason,Esp |
| Material: |
Plastic |
| Connection: |
Male |
Product Description

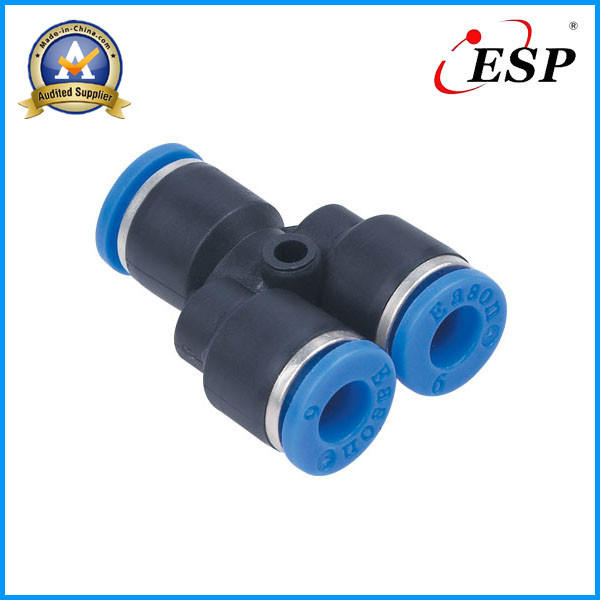

One-Touch Tube Fittings
Convenient One-Touch fittings provide instant tubing connections
Elliptical release ring facilitates pneumatic installations in confined spaces
Light manual pressure on the elliptical release ring is all that is required to instantly disconnect each tube - No special tools required
Nickel plated brass threaded bodies provides corrosion and contamination resistance
Rugged polymer (PBT) housing
All NPT & R (BSPT) threads are pre-coated with Teflon sealant and require no additional sealing
Inch system fittings: Tube sizes are inches, threads are UNF or NPT
Metric system fittings: Tube sizes are in millimeters, threads are M or R(PT, BSPT)
G-thread fittings: Tube sizes are in millimeters
One-Touch Tube Fitting Specifications
Fluid Types Air (No other type of gas or liquid)
Working Pressure Range 0~150PSI 0~9.9KgF/cm2(0~990KPa)
Negative Pressure -29.5 Hg -750mm Hg(10 Torr)
Working Temperature 32~140° F 0-60° C
Suggested Tube Material Nylon and Polyurethane
| MODEL | ΦD | ΦP | T | L | E | A | B | H(Hex) | weight(g) |
|---|
| PB04-M5 | 4 | 10.7 | M5*0.8p | 27.5 | 34.5 | 4 | 14.4 | 10 | 8.8 |
| PB04-M6 | 4 | 10.7 | M6*1.0p | 27.5 | 34.5 | 4 | 14.4 | 10 | 8.8 |
| PB04-01 | 4 | 10.7 | R1/8 | 31 | 34.5 | 7.5 | 14.4 | 10 | 10 |
| PB04-02 | 4 | 10.7 | R1/4 | 32.5 | 34.5 | 9 | 14.4 | 14 | 14.7 |
| PB06-M5 | 6 | 12.7 | M5*0.8p | 31.5 | 39.5 | 4 | 15.5 | 12 | 12.6 |
| PB06-M6 | 6 | 12.7 | M6*1.0p | 31.5 | 39.5 | 4 | 15.5 | 12 | 13.2 |
| PB06-01 | 6 | 12.7 | R1/8 | 33.8 | 39.5 | 7.5 | 15.5 | 12 | 13.3 |
| PB06-02 | 6 | 12.7 | R1/4 | 35 | 39.5 | 9 | 15.5 | 14 | 17.6 |
| PB06-03 | 6 | 12.7 | R3/8 | 35.5 | 39.5 | 9 | 15.5 | 17 | 22 |
| PB06-04 | 6 | 12.7 | R1/2 | 37 | 39.5 | 10.5 | 15.5 | 21 | 28.6 |
| PB08-01 | 8 | 14.7 | R1/8 | 37 | 45 | 7.5 | 17.5 | 14 | 18.4 |
| PB08-02 | 8 | 14.7 | R1/4 | 38.5 | 45 | 9 | 17.5 | 14 | 19.4 |
| PB08-03 | 8 | 14.7 | R3/8 | 38.5 | 45 | 9 | 17.5 | 17 | 23.6 |
| PB08-04 | 8 | 14.7 | R1/2 | 40 | 45 | 10.5 | 17.5 | 21 | 32.7 |
| PB10-01 | 10 | 18.4 | R1/8 | 43.8 | 54 | 7.5 | 19.8 | 17 | 34 |
| PB10-02 | 10 | 18.4 | R1/4 | 45.3 | 54 | 9 | 19.8 | 17 | 34 |
| PB10-03 | 10 | 18.4 | R3/8 | 45.3 | 54 | 9 | 19.8 | 17 | 34 |
| PB10-04 | 10 | 18.4 | R1/2 | 16.8 | 54 | 10.5 | 19.8 | 21 | 42 |
| PB12-01 | 12 | 20.4 | R1/8 | 44.5 | 54 | 7.5 | 20 | 19 | 42 |
| PB12-02 | 12 | 20.4 | R1/4 | 46 | 54 | 9 | 20 | 19 | 44 |
| PB12-03 | 12 | 20.4 | R3/8 | 46 | 54 | 9 | 20 | 19 | 42 |
| PB12-04 | 12 | 20.4 | R1/2 | 47.5 | 54 | 10.5 | 20 | 21 | 46.5 |
| PB14-03 | 14 | 23.3 | R3/8 | 56.8 | 62.5 | 10.5 | 22.8 | 24 | 53.8 |
| PB14-04 | 14 | 23.3 | R1/2 | 56.8 | 62.5 | 13.5 | 22.8 | 24 | 68 |
| PB16-03 | 16 | 25.7 | R3/8 | 55 | 63 | 10.5 | 24 | 24 | 72.5 |
| PB16-04 | 16 | 25.7 | R1/2 | 58 | 63 | 13.5 | 24 | 24 | 71.5 |
