Product Specifications
Prod Model: |
Y09-3016 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Power: |
Electronic |
Flow Rate: |
2.83L/Min |
Weight: |
0.6kg |
MOQ: |
1 |
Port: |
Shanghai |
Sample Time: |
1s-99h |
Sample Method: |
Monitor |
Display: |
LCD |
Type: |
Mini |
Usage: |
Particle Counter |
Theory: |
Electronic |
Product Description

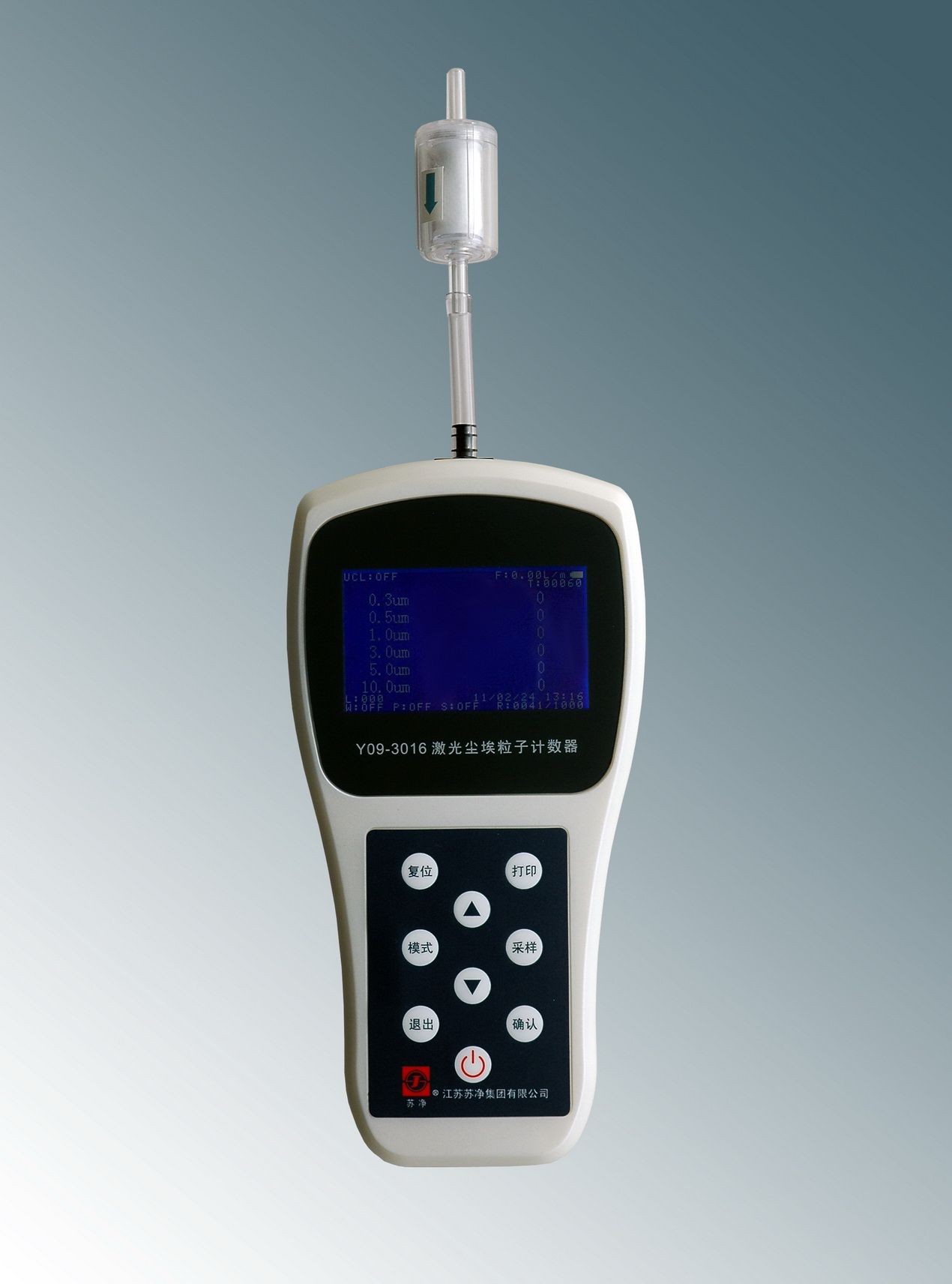

Y09-3016 airborne handheld laser particle counter is ergonomically designed to fit in the palm of your hand. The counter is very light and offers true portability while retaining the features and sensitivity of larger particle counters.
Specifications
Outside Dim
130*220*45 mm³ (Wide*Deep*High)
Display
LCD
Weight
0.6Kg
Battery
Lithium Ion Battery, 7.2V, 2200mAh
Power Source
Li-ion Charger, 8.4 V DC, 1A; 9 to 250 V AC, 50 to 60 Hz
Size Channels
0.3, 0.5, 1, 3, 5, 10µ M
95%UCL calculation, Display Particle Concentration(particles/m³ )
Flow Rate
2.83L/min Imported Pump
Light Source
Laser Diode (10 years Mean Time Between Failures)
Zero Count
≤ 10min
Environmental
Temperature: 10° C-40° C
Humidity: 20%-90%RH, No Coagulation
Atmosphere Pressure: 86Kpa-106Kpa
Alarm
Low Battery, 100, 1000, 10000 Class
Coincidence Loss
5%, 2, 000, 000ps/cf
Operating Time
5 hours
Outputs
RS-232 to pc or printer via optional cable
Location Labels
0-999
Data Storage
1000 Samples (Circular Buffer, including Date, Time, Count, Flow Rate and Label, with PC software)
Standard Equipment
Suitcase, Charger, Sampling Tie-in, the Equipment that cleans itself, Communication Wire and Communication Software
Optional Equipment
Built-out Printer
