Yh-862bd+ Rework Station with Air Gun Bracket
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
862BD+ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Case Color: |
Blue Housing |
| Inner Box Size: |
31.5*22*22cm |
| Outer Box Size: |
43.8*32*66.5cm |
| Qty: |
6PCS / Carton |
| Goods Weight: |
3.58kg |
| Outer Carton G.W.: |
21.59kg/CTN |
Product Description

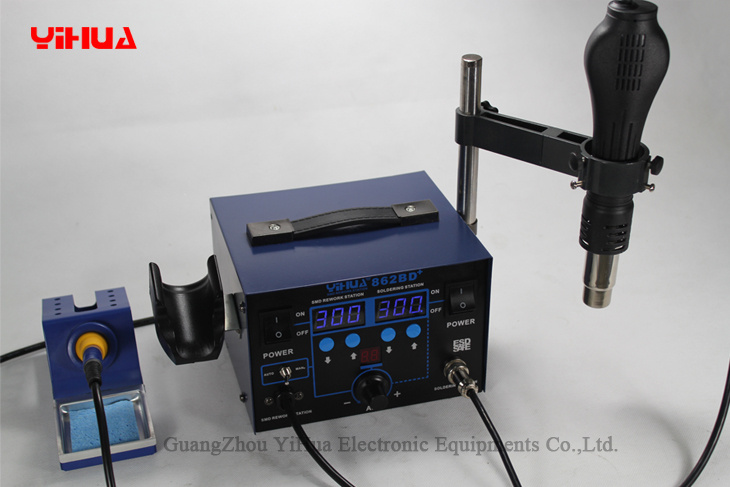

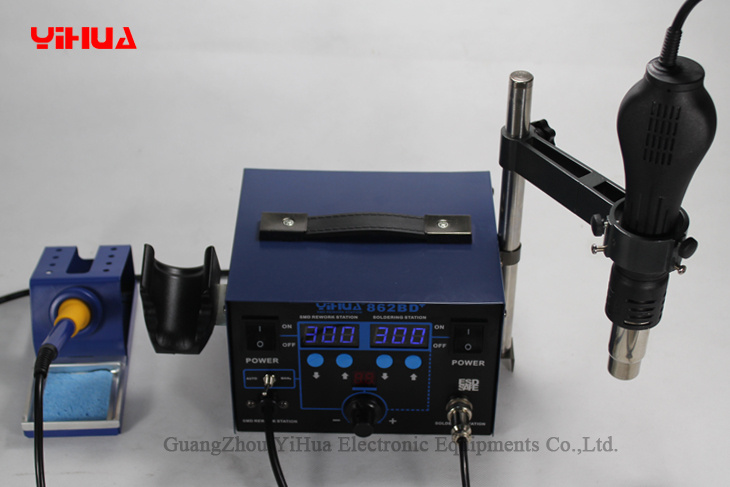

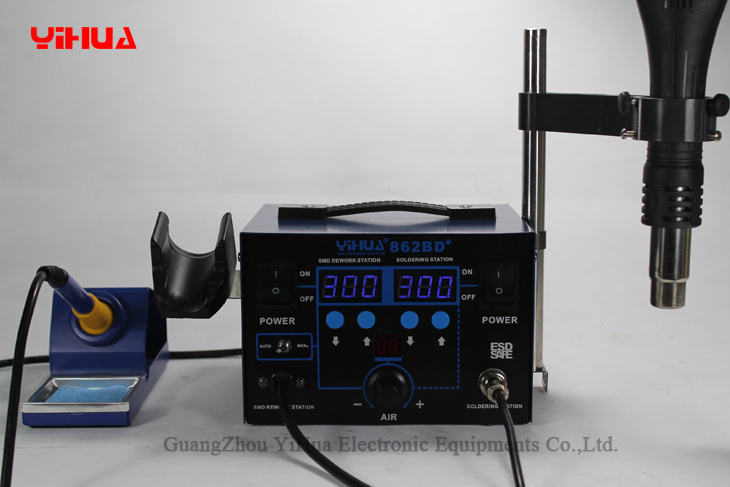

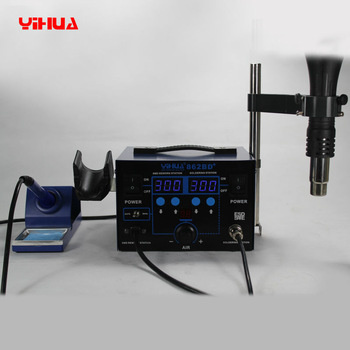

YH-862BD+ REWORK STATION WITH AIR GUN BRACKET
Product Features
1.Celsius/Fahrenheit Display Temperature Function: To satisfy market demand in different regions, the Company has designed a temperature display mode.
2.The air gun/soldering iron features -50ºC to +50ºC temperature compensation
3.The air gun features manual/automatic work mode conversion
4.The soldering iron features a sleep function that can be set from 0-99 minutes
5.Greater air volume adjustment convenience with an hot air gun adjustment range of 20-80.
6.Temperature controls utilize core technology, adopting Samsung microprocessor-PID programming for high-speed 100ms real-time tracking of air gun outlet temperatures and soldering iron tip temperatures, with real-time calibration! Outlet temperatures are extremely stable.
7. Soldering iron handle wire employs a high-temperature silicone wire (undamaged when 300o soldering tip contacts silicone wire for 30 seconds); the heating element employs an imported high-power heating element for fast temperature compensation, particularly suitable for desoldering crude terminals, large joints, and difficult to reach spots, not to mention general solder joint desoldering.
8.The air gun handle wire similarly employs a high-temperature silicone wire, a silent brushless-motor fan, stainless steel tubing, and a cutting-edge ceramic-framed heating core for extremely stable and reliable performance!
9..Machine components are equipped with self-detection functionality for complete, intelligent overheating, short-circuit, open-circuit, overload, and fault indication and protection
10.The back of the machine features a main power supply switch. For added energy savings and greater safety, turn off the main power supply switch when the machine will not be used for a long period of time.
11.The unique ABS fan anti-lock function allows for maximum safety. When the fan unexpectedly ceases function and work stability can no longer be controlled, the system will immediately cut off the air gun power supply to ensure safety of the user and the environment.
Display
Product Parameter
| Machine parameter |
| Rated voltage | AC 220V±10% 50Hz |
| Total Power | 730W±10%(max) |
| 300ºC Constant Temperature Power (High-Speed PID Programmed to Energy Savings) | 250W±10% |
| Operating Environment | 0~40ºC Relative humidity<80% |
| Storage temperature | -20~80ºC Relative humidity<80% |
| Dimensions | 13.5*15.7*18.5cm |
| weight | 4.5KG |
| Performance Parameter | Hot air gun | Soldering iron |
| Operating Voltage | AC 220V±10% 50Hz | AC 26V±10% 50Hz |
| Output power | 650W | 75W |
| temperature range | 100ºC~480ºC | 200ºC~480ºC |
| Air Supply Mode | Brushless-Motor Fan | --- |
| airflow | 120L/min(max) | --- |
| Temperature stability | ±2ºC (static) | ±2ºC (static) |
| Display Mode | Red LED Digital Display | Red LED Digital Display |
| Calibration Mode | PID Digitally Programmed Calibration | PID Digitally Programmed Calibration |
| Temperature correction | PID digital program proofreading | PID digital program proofreading |
| PID Temperature Calibration Cycle | Rapid 20ms | Rapid 20ms |
| Heating Core | Ceramic Framed Heating Core | Imported High-Powered Heating Core |
| PID temperature cycle | Fast 200ms | Fast 200ms |
| Tip-to-Ground Impedance | --- | <2Ω |
| Tip-to-Ground Voltage | --- | <2mV |
| | | | |
Standard configuration:
machine 1 set specifications: 1pcs
Air gun handle: 1pcs nozzle: 4pcs (5mm 8mm 10mm 13mm)
IC puller: 1pcs handle frame: 1pcs
Iron handle (including a heater and tips) 1pcs
Hot air gun bracket 1 set
These are 220V units you may need a transformer to use the machine in your country. we also do accept special orders for 110V / 230V/ 240V units
Guangzhou Yihua Electronic Equipment Co., Ltd. Provides high-quality repairs, soldering and de-soldering of equipment, SMD hot air rework station, DC power source R&D, manufacturing and sales. It currently is China's largest-scale and most dynamic enterprise of its kind. Yihua Electronics grew from its former military enterprise at the "083" base and maintains the tradition of military-standard quality to this day.
The company is known for its excellent technical art and cutting-edge technology, and is hugely popular among customers in China and abroad. There are two brands under Yihua Electronics, "YIHUA" and "WEP", and the company has successfully passed ISO9001-2008 certification. All products bear the European CE seal, as well as SAA, KC, RoHS, and National Electronics Safety and Quality Supervision and Testing Certification, and have passed France's BV (Bureau Verita) on-site auditing process and the Swiss SGS audit. The company holds dozens of patents, and is gradually taking its place as the undisputed industry leader.
The company relies on strong R&D capacity, releasing batch after batch of high-tech products with independent intellectual property rights to domestic and foreign markets, and gradually strengthening its position as an industry leader. The company specializes in R&D, innovation, and manufacturing of welding stations, hot air rework stations, and DC power supplies. From basic components to integrated controls, from basic heating elements to complete products with multiple functions, we produce them piece by piece. We understand customer needs and we focus on design, applying our new R&D capacities, producing core features and concepts that are leaders in the industry, helping protect the environment, and responding to user needs. Technologies include handle safety protection, heat-generating solid phase technology, PID precise temperature control technology, anti-wind protection, temperature correction, hot air gun automatic /manual switching, and soldering iron sleep mode. A number of related technologies and features have been widely used in industry.
The company has also always focused on its goals of developing as a "high-tech company, resources savings enterprise, " following the business philosophies of "focused, professional, dedicated. " As a result, the company has become the largest, most professional, and most successful enterprise in the industry, and has been named by a reputable authority as first of the top ten soldering brands.
Yihua Electronic Equipment is ready to become the most important enabler for professionals around the world.
