Product Specifications
| Prod Model: |
YLC1-DN50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mechanical Life X 10°:20: |
Number of The Contacts:3p+No |
| Protective Characteristics: |
Enclosed Rlay |
| Load: |
High Power Relay |
| Theory: |
Thermal Relay |
| Size: |
Miniature |
| Usage: |
Household Appliances Relay, Communication Relay |
| Action Principle: |
Electromagnetic Type |
Product Description

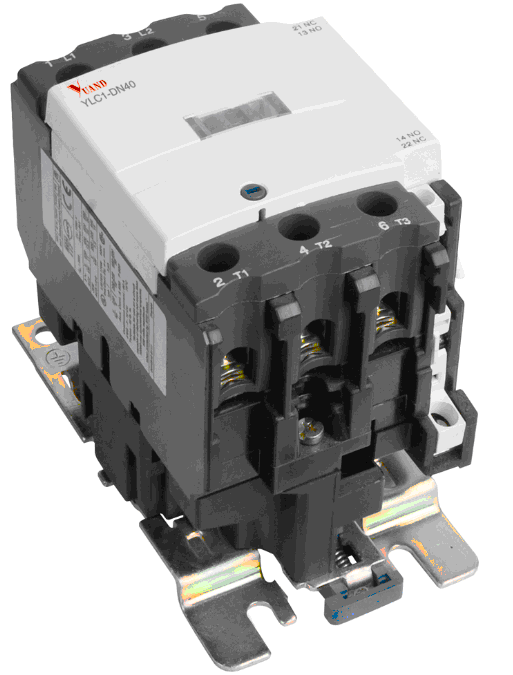

YLC1-D series AC contactors are suitable for frequency 60/60Hz rated operation current 9-330A under AC-3 duty. It is mainly used for making/breaking electric circuits at a long distance and for frequent starting/stoppling & controlling AC motor starter The products are produced according to IEC60947-4-1 & GB14048.4.
|
Specification |
|
Rated operational current |
|
le max AC-3(Us ≤V) 9A 12A 18A 25A 32A 38A |
|
leAC-1(0 ≤60 o ) 25A 32A 40A 50A |
|
Rated insulation voltage 690A |
|
Number of poles |
3 3 4 3 3 4 3 |
|
220V/240V 2.2KW 3KW 4KW 5.5KW 7.5KW 9KW |
|
380/400V 4KW 5.5KW 9KW 11KW 15KW 18.5KW |
|
Rated operational 415/440V 4KW 5.5KW 9KW 11KW 15KW 18.5KW |
|
Power in AC-3 |
550V 5.5KW 7.5KW 10KW 15KW 18.5KW 18.5KW |
|
660/690V 5.5KW 7.5KW 10KW 15KW 18.5KW 18.5KW |
|
1000V - - - - - - |
|
Auxiliary contacts |
range comprising up to 4 NC or NO instantantaneous.up to 1NO+1NC time delay and up to 2 NO protected contacts and 2 screen continuity terminals |
|
Compatible manual or auto thermal overload relays |
Class 10A 0.10.....10A 0.10......13A 0.10.....18A 0.10....32A 0.10....38A 0.10....38A |
|
Class 20A 2.5.....10A 2.5.....13A 2.5.......18A 2.5......32A |
|
Supperssor modules(d.c.and low consumption contactors have built-in supperssion limiting diode as standard) |
Varisto |
|
|
Diode |
|
|
RC circuit |
|
|
Bidirectional |
|
|
Ratey |
|
|
Interfaces |
Relay+override function |
|
|
Solid state |
|
|
Contactor type references |
~or =3P YLC1-D09 YLC1-D12 YLC1-D18 YLC1-D25 YLC1-D32 YLC1-D38 |
|
~4P - YLC1-D12 - YLC1-D25 - - |
|
=4P - YLC1-D12 - YLC1-D25 - - |
|
Reversing contactor type references |
~3P YLC1-D09 YLC1-D12 YLC1-D18 YLC1-D25 YLC1-D32 YLC1-D38 |
|
=3P YLC1-D09 YLC1-D12 YLC1-D18 YLC1-D25 YLC1-D32 YLC1-D38 |
|
~4P - YLC1-D12 - YLC1-D25 - - |
|
=4P - YLC1-D12 - YLC1-D25 - - |
|
|
|
Wenzhou Yuanda Electrical Equipment Co., Ltd was formed in 1989. Is located in the largest manufacturing base of low-voltage electric equipment of China Liushi-"ELECTRIC DEVICE METEROPOLIS OF China". We are only about 25 Kilometers far from the WENZHOU airport and Railway Station. It is very convenient to connect with the world whether by air, by land or by sea. The company covers more than 10, 000 squre meters, Has qualified employees about 600, "We are growing sgtonger every day".
Our company is a specialized enterprise of manufacturing pure electomagnetic type mini Circuit Breaker(MCB), Earth Leakage Circuit Braker(ELCB), Moulded Case Circuit Breaker(MCCB), Power Supply, AC/DC Contactor, Relay, Starter and other electrical components. We can engage in import & export trade by ourselves, All of our products conform to the standards of IEC1008, IEC898, VDF0664, BS4293, and IEC1009 etc, and have got CE, CB, UL, CCC, RoHS Approvals and testing reports. And we have got theISO9002 International Quality System.
We accept OEM and small trial orders, Contact us now for more imformation. All inquiries will be replied with in 24 hours. We also cordially welcome all cilients to orders with us by any means of communication.
"YuanDa People"insist that Quality First. Client First, Credit First!
