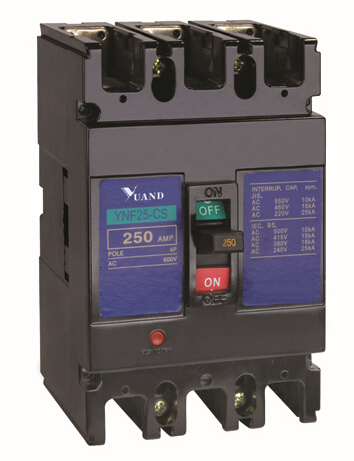

Ynf-CS Moulded Case Circuit Breaker

Name: Ynf-CS Moulded Case Circuit Breaker
Brand: china-manufacturer-directory.com
SKU: 748253165
Availability: InStock
Rating: 4.8 (24 reviews)

Price:	US $ 2-2.5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	240/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Application YNE-CS Series circuit breaker features reliable and steady performance,reasonable strcture.Beau- tiful appearance and small volume ect.It can be used in the circuit of 50Hz or 60Hz,rated voltage up to 600V,It is used to distribute electric energy indiscretion network and overload or short circuit protection power equipment,and also can be used in transformation of circuit in frequency under the normal conditions.

Outline diemensions(mm)

Type pole nomlber Code	YNF- 30CS	YNF- 30CS	YNF-60CS	YNF- 100CS	YNF- 250C	YNF- 400CS	YNF- 630CS	YNF- 800CS	YNF- 1250CS		YNF- 250CP	YNF- 60CP	YNF- 100CP		YNF- 250CP
Type pole nomlber Code	2 3 2 3 2 3 2 3 3 3 3 3 3 3 3 3 3
a	4567.5	50	75	50	75	60	90	105	140	210	210	210	50	50	60	105
b	96	130	130	15	165	257	257	257		406		130	130		155	165
c	52	68	68	68	86	103	103	103		140		68	68		68	68
d	67	86	86	86	110	132	155	155		190		90	90		90	92

Prod Model:	YNF-250CS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Number Of Poles:	3p
Rated Current(a):	125,150,175,200,225,250
Rated Insulation Voltage(V):	600
Mode Of Connection:	Mode After Board Insertion Mode
Rated Frequency:	AC 50/60Hz
On&off Capacity:	AC380V/18ka 415V/10ka
Arc-extinguishing Medium:	Air
Structure:	MCCB
Breaking Capacity:	Low Voltage Circuit Breakers
Poles Number:	3
Certification:	CCC
Operation:	Manual Type
Installation:	Fixed
Speed:	High-Speed Circuit Breaker

Wenzhou Yuanda Electrical Equipment Co., Ltd was formed in 1989. Is located in the largest manufacturing base of low-voltage electric equipment of China Liushi-"ELECTRIC DEVICE METEROPOLIS OF China". We are only about 25 Kilometers far from the WENZHOU airport and Railway Station. It is very convenient to connect with the world whether by air, by land or by sea. The company covers more than 10, 000 squre meters, Has qualified employees about 600, "We are growing sgtonger every day".

Our company is a specialized enterprise of manufacturing pure electomagnetic type mini Circuit Breaker(MCB), Earth Leakage Circuit Braker(ELCB), Moulded Case Circuit Breaker(MCCB), Power Supply, AC/DC Contactor, Relay, Starter and other electrical components. We can engage in import & export trade by ourselves, All of our products conform to the standards of IEC1008, IEC898, VDF0664, BS4293, and IEC1009 etc, and have got CE, CB, UL, CCC, RoHS Approvals and testing reports. And we have got theISO9002 International Quality System.

We accept OEM and small trial orders, Contact us now for more imformation. All inquiries will be replied with in 24 hours. We also cordially welcome all cilients to orders with us by any means of communication.

"YuanDa People"insist that Quality First. Client First, Credit First!
