Key Specifications/Special Features

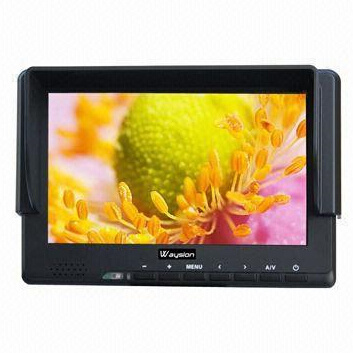

?Descriptions:Specific LCD monitor used for full HD video camera
Seizing much clearer world
Application for full HD video camera in CCTV monitoring andmaking movies
HDMI and YPbPr input, to connect with full HD video camera
LCD aspect ratio: 16:9
LED backlight, 20,000 hours (minimum)
Multi mounting methods to view under different angles
?Specifications:Resolution (H x V): 800 x 480 pixels
Aspect ratio: 16:9
Contrast: 500:1
LCD brightness: 450cd/m²
Viewing angle: 120°/140°(H/V)
Operating temperatures: -20 to 70°C
Storage temperatures: -30 to 80°C
Input voltage: 12V DC (XLR DC connection)
Input signal: HD-SDI (optional), HDMI, YPbPr, AV1/AV2
Battery: 4,200mAh/7.2V (optional)
Current: 650mA
Standby current: d50mA
Power consumption: d8W
Audio output: d1W
Speaker: x1 (front)
Sizes (L x W x D): 188 x 131 x 33mm/194 x 134 x 73mm (with sunshade)
Weight: 510/568g (with sun shade)
?Accessories:Sun shade x 1 piece
DV battery mount plate A x 1 piece
DV battery mount plate B x 1 piece
12V 1.5A DC adapter x 1 piece
Remote control x 1 piece
Manual x 1 copy
Bracket x 1 piece
4,200mAh/7.2V Li-ion battery (optional) x 1 piece
HDMI to mini HDMI cable (optional) x 1 piece
Shoe mount (for camera only) (optional) x 1 piece
