Feature:
1. Easy operation, flexible starting, accurate color-register
2. Equipped with meter counter, which make it possable to stop the machine automatically at the set meters of film or when the material is cut off
3. Pneumatic cylinder to lift and lower printing plate cylinder and it will stir The printing ink automatically after lifting
4. The printing ink is spreaded by the anilox cylinder with even ink color
5. Reliable drying system
6.360 angles continuous and adjustable longitudinal register device
7. The inverter to control motor adapts to different printing speed
Descriptions:

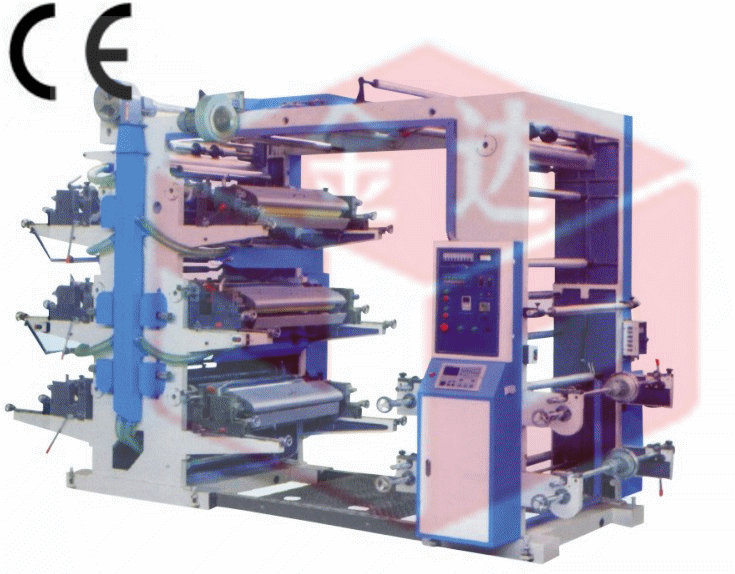

Flexographic printing machine, also called aniline press which uses photosensitive resin plate as the printing plate of printing machine. It adopts environmental ink and has advantage of low edition-producing cost, this is an ideal machine for mass lots, large variety production manufacturer I
t is also snitable for printing HDPE, LDPE, PP. Cellophane paper, rolling paper etc.
Type
| YT-600
| TY-800
| YT-1000
|
Max.Width of Printing
| 550mm
| 750mm
| 950mm
|
Max.Printing Length
| 914mm
| 914mm
| 914mm
|
Max.Diameter of Printing Length
| Φ450mm
| Φ450mm
| Φ450mm
|
Printing Speed
| 5-50m/min
| 5-50m/min
| 5-50m/min
|
Printing Color Number
| 4(6)
| 4(6)
| 4(6)
|
Format Mater Thickness
| 0.02-0.06mm
| 0.02-0.06mm
| 0.02-0.06mm
|
Total Power
| 19kw
| 19kw
| 19kw
|
Machine Weight
| 3.7T
| 4T
| 4.3T
|
Overall Dimensions(L×W×H)mm
| 3850×1850×2250mm
| 3850×2050×2350mm
| 3850×2250×2350mm
|
Ruian Jinda Package Machinery Co., Ltd., established in 1986, is a professional and leading manufacturer of plastic processing machine Company in Rui'an city China mainland.
As the ONLY ONE PVC Stretch Cling Film Machine manufacturer in Rui'an city China(mainland), we are a professional and long history supplier( Actually since year 1986, up to day 26 years) to supply such equipment as Plastic Bag Sealing-cutting Machines, Printing Machines, Bubble Film Machines, Film Blowing Machines and other Packing Machines.
In order to offer our products with the best quality, we have just placed down a considerable investment on advanced production technologies to improve our existing facilities.
Presently, we have the ability to produce 2 and 3-layer Co-extrusion Film Blowing Machines, and 3-layer POF Hot-shrinkable Environmental Polyolefin Film Blowing Machines.
You are welcome to come and take a look at our current line-up and it will be our pleasure to provide you the most competitive price products with high quality.
Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
