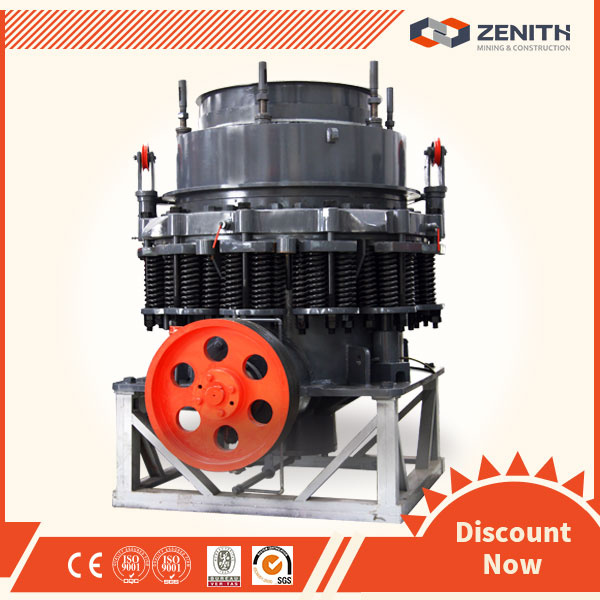

Introduction Spring Cone Crusher
The Zenith S series Spring cone crusher is designed to crush high or medium hardness material, such as iron ore, copper ore, limestone, quartz, granite, etc. and is normally used as second or third crushing equipment in metallurgy, road construction, chemical engineering and so on. There are mainly standard type and short-head types according to different discharge size. This series offers the highest crushing efficiency and final product quality with the lowest cost so that they are well received by the customers.
Main features of the spring cone crusher
1.Good granularity of the end products; good stability;
2.Easy to clean chamber; high reliability;
3.Easy maintenance,and easy to operate;
4.Low production costs; wide application;
5.Each part lubrication respectively.
Application of the spring cone crusher
The spring cone crusher is widely used for all kinds of medium and fine crushing rocks with compressive strength under 350MPa in mining, cement industry, sand industry, metallurgy and other fields. It is especially suitable for materials with Mohs hardness under the range of 5-16, such as iron ore, non-ferrous metallic ore, granite, limestone, quartzite, sandstones, pebbles, etc.
Technical Data Spring Cone Crusher
Model | Cavity | Recommended Minimum Discharge Setting A (mm) | Feed Opening With Min.Recommended Discharge Setting A(mm) | Capacities In Tons Per Hour Passing Through The Crusher At Indicated Discharge | Power(KW) |
Opening Side"B" | Closed Side"B" |
36" (3') | Fine | 9 | 102 | 83 | 45-93 | 75 |
Coarse | 13 | 175 | 159 | 59-165 |
Extra Coarse | 25 | 178 | 163 | 129-198 |
51" ( 4.25' ) | Fine | 13 | 137 | 109 | 106-183 | 185 |
Medium | 16 | 210 | 188 | 132-304 |
Coarse | 19 | 241 | 216 | 171-349 |
Extra Coarse | 25 | 259 | 238 | 230-450 |
66" ( 5.5' ) | Fine | 15 | 209 | 188 | 180-324 | 240 |
Medium | 22 | 241 | 213 | 252-437 |
Coarse | 25 | 269 | 241 | 299-634 |
Extra Coarse | 38 | 368 | 331 | 431-680 |
84" ( 7' ) | Fine | 19 | 278 | 253 | 381-1028 | 400 |
Medium | 25 | 334 | 303 | 605-1284 |
Coarse | 31 | 369 | 334 | 786-1450 |
Extra Coarse | 38 | 460 | 425 | 886-1637 |
