| Price: | US $ 5.0/Meter |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 100/Meter |
| Pay Type: | L/C,T/T |
| Prod Model: | R13 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: | Hebei,China |
| Name: | Petroleum Transport Hose |
| Model Number: | En856 R13 |
| Inner Tube: | Nitrile |
| Reinforcement: | High--Tensile Wire Spiral |
| Cover: | Black Neoperene Blend |
| Quality: | Longer Service Life |
| Application: | Agricultural Machinery |
| Package: | Plastic & Others |
| Business Type: | Manufacturer |
| Color: | Black |
| Material: | Synthetic Rubber |
| Capability: | Hydraulic Hose |
Product Structure
Material:Korea LG or France Lanxess original rubber & high-tensile steel wire
Tube:Oil resistant synthetic rubber
Reinforcement:One high tensile steel braid
Cover:Synthetic rubber with high ozone,weather and heat resistance
Application
high pressure hydraulic oil lines used in the hydraulic system of multifunctional mining machinery and engineering machinery which use petroleum or water based hydraulic fluids.
Hydraulic rubber hose structure drawing
The general package of 1SN hydraulic hose is plastic or woven bag
with pallet under the hose, which can be seen below. We, however, can
also provide special package according to customer's requests.

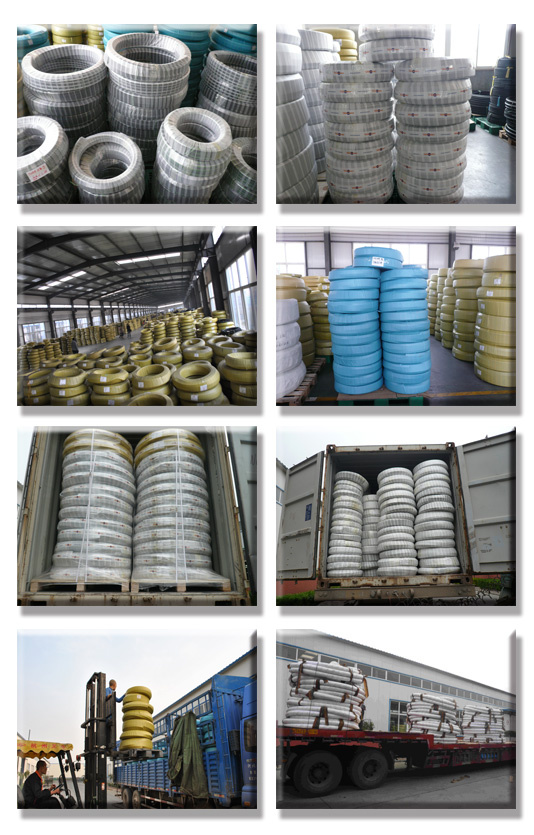

Pictures of packaging and shipping
1.We can offer OEM Services
2.We can provide FREE SAMPPLE for our customers
3.We can crimp hose assembly for our customers.
4.We welcome clients to visit our factory leading to better understanding of our production.
We are the leading manufacturer specialized in designing and manufacturing different kinds of hydraulic & high-pressure rubber hose in China with the experience of more than 20 years, manufacturing according to the ISO9001:2008, ISO/TS 29001 and API Q1. We help our customer develop special hydraulic rubber hose for their application and OEM service offered.
Pictures of our factory and lab
Q1. Do you produce smooth or cloth wrapped cover?
Both, we can produce both cover, which depends on customer's request.
Q2. Do you produce embossed marking?
Yes, we do provide embossed and printing markings with different color.
Q3. Can you produce product with my own brand?
Yes, we have been offering OEM services for 20 years.
Q4. Does your product have different color hose?
Yes, we currently provide black, grey, red, blue and yellow.
Q5. How long does my order take to be delivered?
It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
| Product | Hose ID | W.D. | C.O.D | Max W.P. | Min B.P | Min B.R. | Weight | ||||||||||
| Number | |||||||||||||||||
| Dash | mm | in | Min | Max | Min | Max | Min | Max | Mpa | psi | Mpa | psi | mm | Kg/m | |||
| mm | mm | mm | mm | mm | mm | ||||||||||||
| R13-12-19 | 12 | 19 | 3/4 | 18.6 | 19.8 | 28.2 | 29.8 | 31.0 | 33.2 | 35 | 5076 | 140 | 20305 | 240 | 1.62 | ||
| R13-16-25 | 16 | 25 | 1 | 25.0 | 26.4 | 34.9 | 36.4 | 37.6 | 39.8 | 35 | 5076 | 140 | 20305 | 300 | 2.62 | ||
| R13-20-32 | 20 | 31.5 | 1 1/4 | 31.4 | 33.0 | 45.6 | 48.0 | 48.3 | 51.3 | 35 | 5076 | 140 | 20305 | 420 | 3.62 | ||
| R13-24-38 | 24 | 38 | 1 1/2 | 37.7 | 39.3 | 53.1 | 55.5 | 55.8 | 58.8 | 35 | 5076 | 140 | 20305 | 500 | 4.62 | ||
| R13-32-51 | 32 | 51 | 2 | 50.4 | 52.0 | 66.9 | 69.3 | 69.5 | 72.7 | 35 | 5076 | 140 | 20305 | 630 | 5.62 | ||
