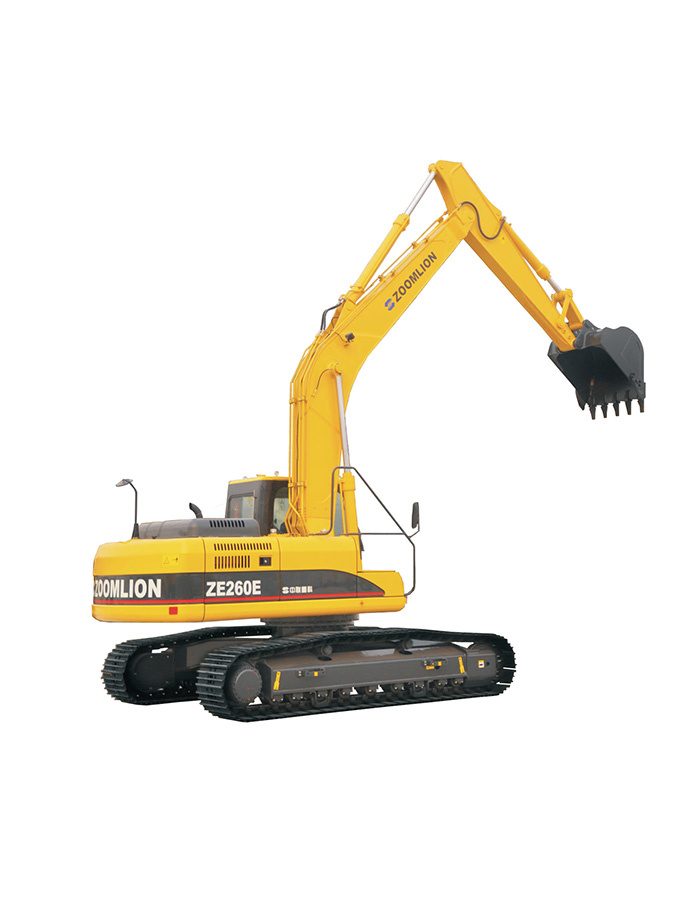

Product Specifications
| Prod Model: |
ZE260E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Crawler Excavator |
| Size: |
Medium-Sized |
| Condition: |
New |
| Certification: |
ISO9001: 2000 |
Product Description
(a)Supreme Power, High Reliability and Low Fuel Consumption
Original packaging Comings engine which is equipped with electric throttle device can adjust fuel consumption according to the engine power, realize automatic idle speed and acceleration and decrease fuel consumption. The environmental protection
Performance is improved and accords with environmental emission standard of European II.
Large capacity fuel prefilter and oil-water separator improves fuel quality, decreases the early wearing of fuel injection nozzle and extends the service life of engine cylinder.
The air filter uses macro-scale structure and is equipped with air prefilter to realize three-stage filtering which ensures clean air admission and decreases the early wearing of cylinder components. It particularly satisfies for harsh working environment of heavy dust and wind.
The muffler uses large capacity airflow section technology, which significantly improves the effect of muting and reduces noise effectively.
(b)Advanced and reliable hydraulic control system
New complete electric control selective system
According to different working loads, design different power selection methods, perform optimum performance in the precondition of reducing fuel consumption and make the engine and the main pump power reach the best state.
|
Model |
ZE260E |
|
Standard bucket capacity (SAE) |
1.20 m3 |
|
Operating weight |
24500kg |
|
EngineModel |
Cummins 6BTAA5.9-C178 |
|
Rated power |
133kW (178hp)/2000rpm |
|
system/boost |
32.4/35.3MPa |
|
Flow |
2×220L/min |
|
Bucket rod digging force |
125kN |
|
Bucket digging force |
173kN |
|
Max.tractoring force |
215kN |
|
Travelling speed |
5.6/3.1 km/h |
|
Dimension |
10000mm×3190mm×2990mm (To cab top) |
|
Max.digging reach |
10190mm |
|
Max.digging depth |
6870mm |
|
Max. digging height |
10000mm |
