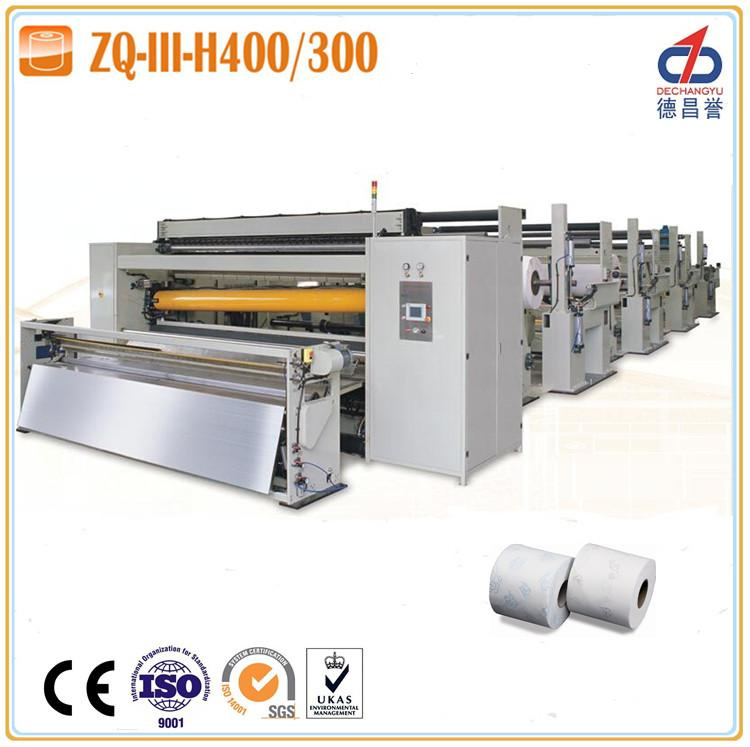

ZQ-III-H400 Fully-Automatic Toilet Paper Machine/Toilet Paper product making machinery
*Other names:non stop machine,paper machine,tissue machine, tissue rewinder,paper making machine,toilet roll rewinder,toilet roll machine,toilet tissue machine,kitchen towel machine,kitchen towel rewinder
What is the details of this machine?
1.Patented-tech rewinding roller, make coreless paper rolls rewinding less weinkles and look better.
2.Servo motor controls web-break (abrupt acceleration) when the log is almost finished,decreasing failure rate and maintenance cost
3.High-precision NC machined large diameter blade shafts, German blade, Siemens high-class CNC system, guarantee perforation accuracy and clearness, and the finest tightness
4.Could adjust the perforating size at will;
5.Each functional unit is driven by independent motor, could select edge embossing unit, embossing unit, lamination unit according to demand.
Main Technical Parameters
Machine name |
ZQ-III-H400 |
Model |
1760/2500/2900/3600 |
Max width
of raw paper |
2000/2400/2850/3600 mm,
other sizes to be specified |
Design speed |
400m/min |
Guarantee Operation speed |
with core:350m/min; coreless:250m/min |
Max outer diameter
of raw paper |
2500mm/2000mm/1500mm, other sizes to be specified |
Inner diameter
of raw paper core |
3",76 mm, other sizes to be specified |
Outer diameter of finished product |
65-140mm, other sizes to be specified |
Outer diameter of raw paper core |
25-50mm, other sizes to be specified |
Product finish condition |
Total length / diameter |
Perforation size |
6-helix perforating blade (made in Germany),drived by independent |
Adjustable perforation length |
Core pulley stepless adjusting |
Perforation length |
6 blades:105-140mm 3 blades: 210-280mm |
Rewinding type |
Non-stop, continuously |
Driving type |
Separated drive |
Coreless roll technology |
Patented tech of constant-vacuum system to start winding |
Web trimming type |
riding roller speeds up |
Procedure control |
Simens multi-shaft motion control system |
*Options |
*Backstand |
1~4 ply (plies), with shaft/ shaftless to be specified |
*Edge-embossing |
Independent pneumatic,steel to steel, please specified |
*Embossing |
single embossing, double embossing, steel
to steel (point to point/convex to plane),
steel to felted , steel to paper woolen , steel
to rubber , pneumatic, to be specified |
*Lamination |
Multiple type, please specified |
*Reciprocating type tail sealer |
15logs/min, please specified |
*Double-floor reciprocating type tail sealer |
25logs/min, please specified |
Further recognise this machine and us….
Why choose us?
1.We are Alibaba/Made-in-china assessed 13 years Gold Supplier.
2.We are the famous science and technology professional enterprise specialized in researching, developing, manufacturing and selling of tissue paper converting machine,best production capability ,best quality control, best service .
3.Approved the ISO9001-2000 Quality System Certification , CE Certification, SGS Certification, etc and owned many product patents.
4.100% QC inspection and debugging Before Shippment.
5.100% rest assured after-sales service.
Our service
Pre-Sale Services:
According to your need of actual situation and budget, our perfessional sales team will provide professional consultation and best solution with strong technical support.(such as raw paper purchasing suggestion, jumbo roll dimension needed, packing ways for transportation, suitable machine and processing craft recommendation with detailed explanation especially in embossing and lamination, etc.)
After-Sales Service:
1.We also provide the door to door abroad installation, equipment debugging, technical training service;
2.Warranty:1 year quality assurance
3.Building customer files, solving various technical problems for user;
4.Our technical team give you 100% rest assured global presence service even over the warranty period.
FAQ
Q1: What is the Warranty for the machine?
A1: For the machine,we have 1 year warranty.If any quality problems occurred under normal condition in this period ,we will take on the cost of maintenance and replacement and other related cost.
Q2: How to operate and maintain the machine?
A2: First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has more than 20 years experience in this industry, we have accumulated much more contact information of upstream & downstream firms, in the field of raw material, auxiliary material and package of tissue. We belive our professional team can give you best solution for your production configuration.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: Actually, we will replace it for free when wear out in warranty period; Out of the warranty time, you can buy it from us with favorable price or from other place near you, most of our accessories and wearing parts are standard for you.
