Zt High Frequency Plastic Welding Machine -Embossing & Cut-off Type
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
3/Set |
| Pay Type: |
L/C,T/T |
ZT High Frequency Plastic Welding Machine -Embossing & Cut-Off TypeSpecification:| Model | ZT-110 | ZT-110-2 | ZT-110-3 |
| Oscillation Frequency | 27.12MHZ |
| Power Supply | AC380V 50HZ |
| Input Power | 8.5KVA | 15KVA | 18KVA |
| Oscillation Tube | 7T85RB | 7T69RB | E3130 |
| Rectifier | silicon detector |
| Max Pressure (kg) | 5T |
| Max Gap of Electrodes | 70 |
| Press Strokes(mm) | 70mm |
| Size of Upper Electrode (mm) | 300x160mm |
| Lower Electrode Size (mm) | 450x350mm |
| Operation mode | Air-Hydraulic Intensifier |
| Net Weight(kg) | 760kgs |
| Gross Weight(kg) | 840kgs | 900kgs |
| Packing Measurement(mm) | 2150(L)x1000(W)x1760(H)mm |
Features:High frequency output
High frequency
Synchronous
Hydro-Pneumatic
Double head
Semi-AutomaticApplication range:
suitable for PVC PU EVA synthetic and real leather embossing,for making shoe upper,insole,vamp,trade mark,inflatable label,tag,logo,wallet,bag,PVC stretch ceiling,inflatables,etc. Our service:
The warranty time of all the machines is 12 months,engineer available to service machinery overseas, please feel free to contact us through Trademanager or send inquiry to us at any time.

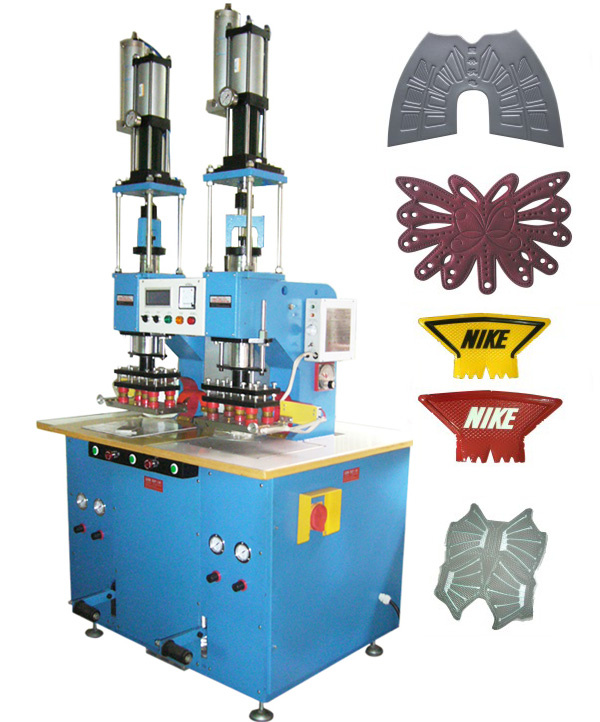

Machine Pictures:
| Prod Model: |
ZT-110 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Brand: |
Zt |
| Power: |
AC380V 50Hz |
| Frequency: |
27.12MHz |
| Press Strokes: |
70mm |
| Net Weight: |
760kgs |
| Packing Size: |
2150(L)X1000(W)X1760(H)mm |
| Usage: |
PVC PU TPU Pet EVA Leather Embossing |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
Quanzhou Zhongtai Machinery Co., Ltd is loaded in Jinjiang, the 'Shoes and Clothing' capital" in China. Our company is a professional automatic and semiautomatic shoe making machine enterprise that integrates the development, production and sale.
Our company has strong technology and senior R&D persons, and we have advanced fine machining equipment, exquisite processing technology and perfect testing methods.
Our company is in strict accordance with our quality system, guarantees the quality of our products, and perfect after-sales service to make our company develop quickly.
We can supply our clients including the machinery, operation technique and row materials. Our main products: KPU shoes making machine, high frequency welding machine, laminating machine, press machine, laser engraving machine, ultrasonic spot welding machine, automatic insoles for transfer printing.
With complete technical service system, we will be responsible for equipment installation, commissioning and technical training, to provide warm, considerate and timely service.
