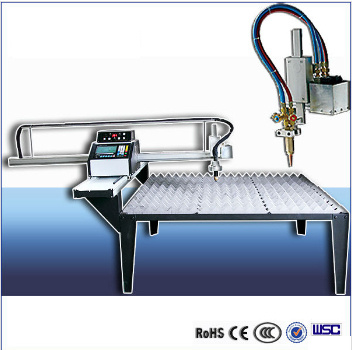

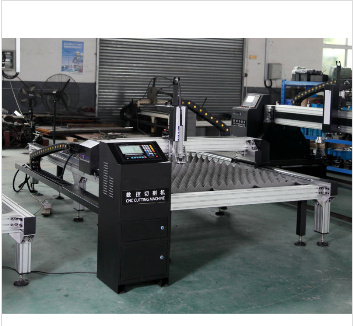

Zz Series Portable CNC Plasma Cutter

Name: Zz Series Portable CNC Plasma Cutter
Brand: china-manufacturer-directory.com
SKU: 765895255
Availability: InStock
Rating: 5 (52 reviews)

Price:	US $ 2000-5000/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Specifications

1.CE certificate
2.one year free warrantee for the machine
3.best supplier of cnc aluminum cutting machine
4.OEM service

Product Description

(1)Working stability, high frequency interfere effectively plasma, lightweight portable;

(2)Support two cutting ways of flame and plasma;

(3)Economic benefits, the structure and design is contracted. it adopts humanistic positive man-machine conversation and operate easily;

(4)Cutting has high quality, high effect level, high precision;

(5)English and Chinese interface can free to convert;

(6)Pre-sale will train and after-sale will track service.
portable cnc plasma cutter can be programmed to cut any plane shape parts composed of beeline and arc, which are same as large gantry cutting machines. It is equipped with a 7 inch LTD with dynamic and static graphical display. It is directly perceived and very easy to learn .It can be programmed to cutting parts directly, and also can be operated in computer translating instructions into a program file by CAD program, and then deducing it via U hardware. The standard positioning of this machine is flame cutting, external hanging plasma cutter is also workable.

Product advantage:

Less investment, the higher cutting efficiency, lower operating and maintenance cost!

when cutting the thickness of the steel plate under 30mm , It has better advantage . Cutting costs about one-tenth of the laser cutting edge and one-sixth of water jet cutting.

portable cnc plasma cutter is suitable for large, medium and small mines, widely used in automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.

Software and material

CAD drawings and computer graphics can be reduced to G code which used to cutting components,

Code file G deposit ORM, and input into the cutting machine, the system will automatically make the G code convert cutting program.

This product with USB interface, convenient program transmission. In material software Set cutting compensation.

(1) Numerical Controls

1,7 inches and high resolution LCD of Monitor . Displaying cutting graphics and cutting orbits. Operate more simplified.

2,Keyboard and buttons operating mode.

3,Support USB file. Also it can be manually edit cutting program (G code).

4,2 axis line and circular interpolation.

5,Support suspend workin-process suspending, forward, backward, speed governing and so on.

6, System has power failure of memory function and back parameter and automatic perforation cutting function.

7, System has manual and electric going up and down control function.

8, Has cutting gap compensation function.

9, Electronic clutch operation, convenient and realize rapid positioning (and stop button).

10, The temperature fan, and start up when need pneumatics. It can extend fan's life-span.

11, System can store 30 files, and each file can 2000 lines. U dish can be stored 2GB.

12, High-speed 16-bit single chip, FLASH storage procedures and external USB read transmission program.

(2)Component parts

1,It is made up of the horizontal, vertical guide rails, and host.

2,The host part, the MOD adopts to prevent magnetic structure, ensure reliable and stable operation of the CNC system.

3,Driven is 1.8 track support motor.

4, Horizontal and vertical guide use aluminum core shaft, In side has strengthened by mechanical principle, making its shape.

(3)Function

Any back, the memory of power failure, shifting the torch, cutting any interruption, and electronic clutch switches etc. It is convenient to the manipulator.

(4)Programming Software

ZZ programming software (optional FASTCAM - TL) based on AutoCAD automatic programming and material system.

FASTCAM is designed for all kinds of NC cutter with cutting software, the software can help the user completing various complex parts drawing, programming, material, using convenient, also bring the obvious economic benefit.

Specification

Technological Parameters	portable cnc plasma cutter
Model	ZZ-1020F(H)	ZZ-1225F(H)	ZZ-1525F(H)	ZZ-1530F(H)
Input Power	220 ± 10%V AC 50Hz /60 Hz 220W
Cutting Modes	Plasma Cutting (Working with plasma generator) & Flame Cutting
Effective Cutting Range (X*Y mm)	1000*2000	1250*2500	1500*2500	1500*3000
Effective Cutting Range can be customized.
Track length width thickness(mm)	250027360	300027360	300027360	350027360
Track Holder Quantity	2 pieces	3 pieces	3 pieces	4 pieces
Cutting Speed	0 - 3000 mm / min ( Max. 4000 mm / min)
Flame (Gas) Cutting Thickness	Piercing Capacity: 5 - 80 mm Edge Start: 5 -120mm
Plasma Cutting Thickness	Depends on the Capacity of the Plasma Generator
Working Precision	± 0.2 mm / min
Torch Height Control Style	Motor Drive / H means The Automatic Arc Voltage Torch Height Control
Flame Cutting Options	Oxygen + Acetylene Gas or Oxygen + Propane Gas
Gas Pressure	Max 0.1Mpa
Oxygen Pressure	Max 0.7Mpa

NAME		portable cnc plasma cutter
MODEL NUMBER		ZZ-1020F(H)	ZZ-1225F(H)	ZZ-1525F(H)	ZZ-1530F(H)
VERSION		F: STANDARD VERSION H:WITH PLASMA THC VERSION
EFFECTIVE CUTTING RANGE (MM)		1000×2000	1250×2500	1500×2500	1500×3000
FASTCAM SOFTWARE		STANDARD VERSION: WILL BE SUPPLIED WITH MACHINE
		PROFESSIONAL VERSION
CUTTING TABLE		ONE UNIT OF 1500*1500MM EFFECTIVE CUTTING RANGE TABLE
		TWO UNITS OF 1500*1500MM EFFECTIVE CUTTING RANGE TABLES
PACKAGE SIZE AND WEIGHT (MM/ KG)	HOST SIZE AND WEIGHT	570×460×590 N.W.:28 G.W.:35	570×460×590 N.W.:28 G.W.:35	570×460×590 N.W.:28 G.W.:35	570×460×590 N.W.:28 G.W.:35
	TRACK SIZE AND WEIGHT	2640×410×330 N.W.:85 G.W.:105	3140×410×330 N.W.:95 G.W.:115	3140×410×330 N.W.:95 G.W.:115	3640×410×330 N.W.:105 G.W.:125
PACKAGE SIZE AND WEIGHT OF CUTTING TABLE (MM/ KG)		ONE UNIT OF (1500*1500MM EFFECTIVE CUTTING RANGE ): 1740×350×300 N.W.:60 G.W.:80
		TWO UNITS OF (1500*1500MM EFFECTIVE CUTTING RANGE ): 1740×350×330 N.W.:120 G.W.:160

Prod Model:	NCM-ZZ-1020F(H)/ ZZ-1225F(H)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type For Cutting Machine:	CNC Cutting Machine
Certification:	CE, ISO 9001:2000, Cu-Tr
Automation:	Automatic
Condition:	New
