Acm a Luminum Composite Panel Material
||US $ 2.8-15.2/Square Meter
Granite-colored aluminum composite panelPassed ISO9001: 2000 Standard Quality System, Get the CE and SGS, ISO14001PVDF Aluminum Composite Panel
Aluminum Composite Panel/aluminum composite panel/PVDF Aluminum Composite Panel
Photoed by Real samples
1) Interior aluminum plastic composite panel
2) Exterior aluminum plastic composite panel
3) Fireproof aluminum plastic composite panel
4) Brushed aluminum plastic composite panel
5) Nano aluminum plastic composite panel
6) Exclusively for the use of kitchen equipment aluminum Wood composite panel
7) Outdoor advertising board
1220mm× 2440mm× 3mm; 1220mm× 2440mm× 4mm
Accepted thickness: 2mm, 3mm, 4mm, 5mm, 6mm
Accepted width: From 1000mm to 2000mm
Such as: 1220mm, 1250mm, 1500mm, 1575mm,
Accepted length: According to buyers requirement
Aluminum thickness: From 0.04 to 0.5mm
PVDF or PE
Any color is accepted

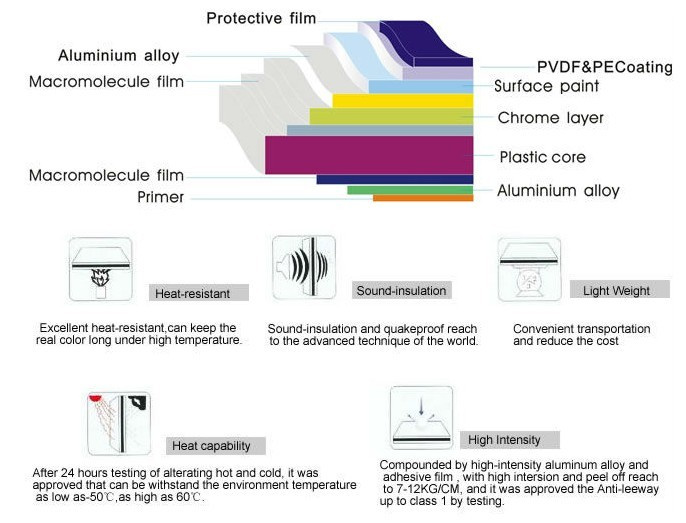

1) Well weather-resistance, high rigidity, easy for maintenance, only neutral cleanser and water needed for its self-clean performance;
2) Easy finishing with conventional woodworking tools. Short time needs for project;
3) Good workability, fire-resistance, heatsound insulation;
4) High flexibility and impact-resistance, superior surface flatness, lightweight, rigid;
5) Various colors are available according your needs;
6) Competitive price and quick delivery.

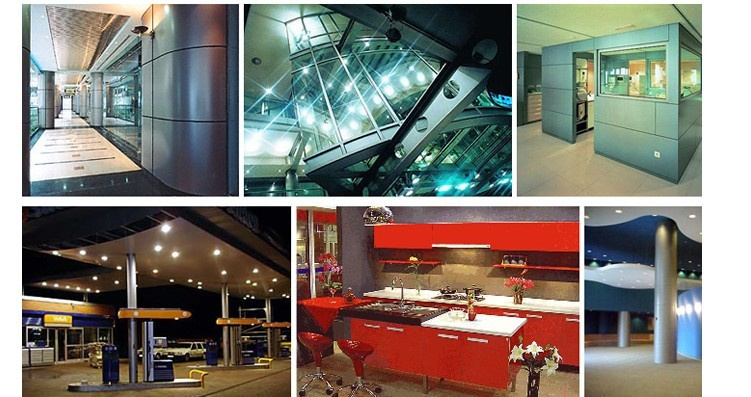

-Exterior applications as:
Wall cladding, facades, roofs and canopies, tunnels, column covers or renovations.
-Interior applications as:
Wall cladding, ceilings, bathrooms, kitchens and balconies.
-Advertisement and market applications as:
Display platforms, signboards, fascias and shop fronts etc.
1) 3-layers PVDF coating, material is sourcing from PPG (U. S. A) INDUSTRIES, INC. HYLAR5000
2) Aluminum coils supplied by SOUTHWEST ALUMINUM (GROUP) Co., Ltd. ALCOA (U. S. A)
3) Protective film from Novacel, France
4) PE-incore is from SINOPEC QILU COMPANY Ltd.
5) Adhesive polyfin film is made by SK Korea, more than 90 degrees.

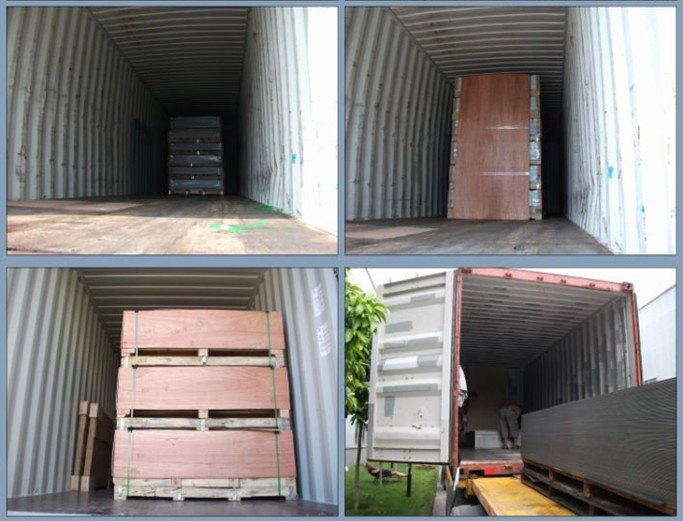

Quantity in a 20'container(for standard size: 1220× 2440mm
3mm panel, 1250PCS-1850PCS
4mm panel, 900PCS-1500PCS
5mm panel, 750PCS-1200PCS
6mm panel, 650PCS-1000PCS
|Aluminum Sheet||A1100-H12||Reasonable Price And Good Performance|
|A1100-H16||High Strength Rustproof|
|A3003-H24||Little High Price Best Performance|
|Core Material||Fireproof A2||Noncombustible Inorganic|
|Fireproof B1||Fireproof Non-toxicity Polyethylene (White)|
|Normal||Non-toxicity Unbroken LDPE(Black)|
|Coating||PVDF||25~37 Um ,KYNAR500 PPG|
|PE||15~20 Um Polyester|
|Surface Treatment||PVDF/PE coating, Brush, Mirror, Wooden, Marble, Nano etc|
|Back||Primer||10 Micron washing Paint|
||North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
||Lucite White, Black, Red and Other SPA Color
|Control Sysem For Jacuzzi SPA:
||Sparelax Control or Balboa Control
|Way Of Control:
||Whirlpool/Massage Bathtubs, Jacuzzier Price
||Outdoor Tub, Jacuzzier Price
Guangzhou XingHe Aluminum Composite Panel Co., Ltd. Was established in 2001. It is situated in the Make industrial park in Yuwotou, Panyu District of Guangzhou city, which is superior in location and convenient in transport. The area of the manufacturing site is more than 20, 000 sqms. It is an enterprise specialized in manufacturing series of aluminum and plastics boards. With its great financial strength, the company purchased from Germany an advanvced test devices. We use high-quality materials from the U. S. And Sweden and adopt advanced aluminum and plastic board and sophisticated supporting production technology from Japan to manufacture high and intermediat class aluminum and plastic boards for interior and exterior finishes. The company has great financial strength, advanced equipments and a team of experienced professional managers and engineering technical personnel. The production capacity is ranked at the top of the industrial.
Our products successively passed the random inspection of the building material research center of the state and aluminum and plastic board product quality supervision and test center and were confirmed to be the industrial standard. They are recommended by the Ministry of the Construction as excellent products and examined and appraised by the Bureau of Building Materials Industry of China as a "green building material products".
Thanks to the earnest and sincere crediblity, perfect quality and after-sale service of the company, the products have been in active demand in every part of the country since they are introuced into the market and were chosen by a number of priority projects and large buildings. At the same time, the company applies, in a view to mordernize our marketing networks, the scientific marketing theories in building the marketing networks in Europe and Southeast Asia region. We warmly welcome and look forward to the cooperation with dealers and customers. We will provide you with qualified products and cordial services.
Guangzhou Xinghe Aluminum Composite Panel Co., Ltd conforms to GB/T17748-1999 China National Standard, passed ISO 9001: 2000, confirmed as the most recommended enterprises the environmental Friendly Products by China Building Materials Industry Association and China Building Material Industry Standardized Research Institute. The famous brand name Xinghe, Nanyang, Kingaluco etc are not only popular in domestic market, but also overseas market, such as West Europe, Middle East, South-East Asia as well as South America.
Xinghe Aluminum Composite Panel Co., Ltd., don't want to boost ourselves as the biggest factory, but we are the most professional one with good quality control, friendly services as well as competitive prices. So for your esteemed company, if you are convenient, warmly welcome you to our factory. Or you can order small quantity to check the quality etc. Whats more, OEM services are also welcome, we can fully help you to win your market, so that finally to achieve win-win.
