Product Specifications
| Prod Model: |
0230PW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type1: |
Wall Socket |
| Grounding: |
Standard Grounding |
| Rated Voltage: |
230V |
| Rated Current: |
13A |
| Application: |
Residential / General-Purpose |
| Color: |
White |
| Clad: |
PC |
| Type2: |
Double Pole |
| Characteristics: |
RCD Safety Socket, No Switch |
| Brand Name: |
Baokezhen |
| Type: |
Without Switch |
| IP Rating: |
Socket |
Product Description

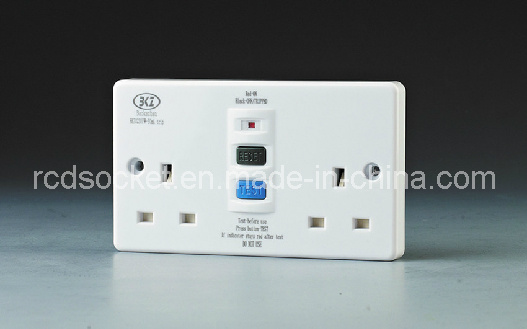

0230PW wall socket
1. Double RCD plastic socket, unswitched
2. PC material, Passive RCD
3. Dimension: 146*86mm
4. RoHS, CE, BS, EMC
Specification
Model: 0230PW RCD wall socket
Double RCD plastic socket, unswitched
Rated Voltage: 230V -50Hz
Current Rating: 13A Max
Rated trip current: 30mA
Trip speed: Less than 40ms
Cable capacity: 3*2.5mm2
Minimum back box depth: 35mm
Body material: PC
Size: 146*86mm
Standard: CE BS7288 BS1363
Test and Reset buttons, test button is for safety checks, and manual reset;
Provides residual circuit protection
