Product Specifications
| Prod Model: |
0cr25al5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Bright |
| Condition: |
Bright, Annealed |
| Product Type: |
Sheet |
| Carbon Content: |
Low Carbon |
| Material: |
Fe Cr Al |
Product Description

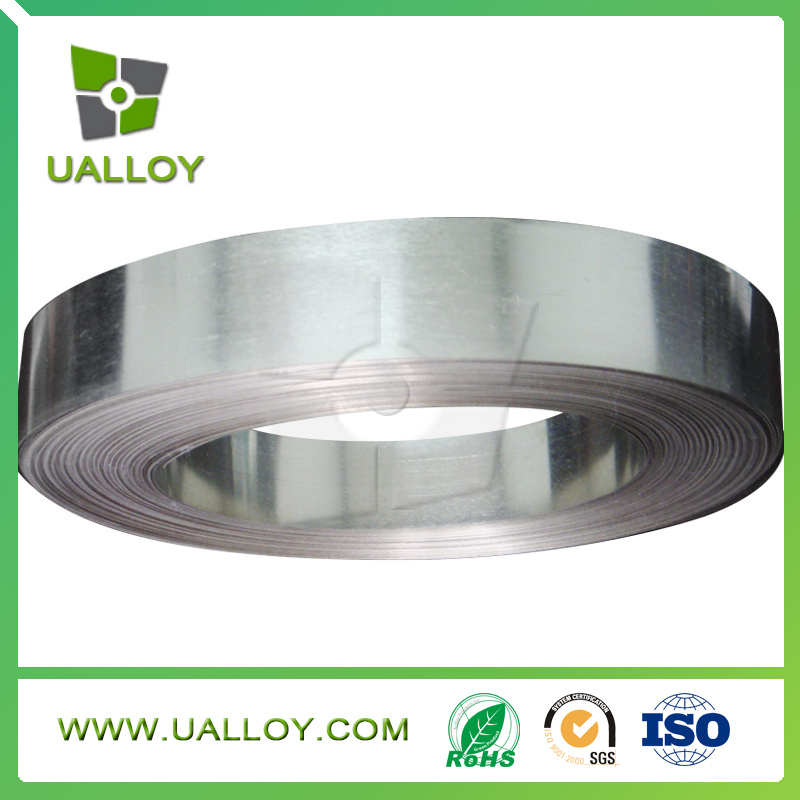

0cr25al5 Resistance ribbon/Fecral alloy heater
Grade: 0Cr25Al5
1. Performance: High resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.
2. Usage: It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.
3. Sizes:
1). Electric ceramic cooktop resistance strip:
Thickness: 0.04mm-1.0mm
Width: 5mm-12mm
Thickness&Width: (0.04mm-1.0mm)× 12mm(above)
2). Low resistance ribbon:
Thickness&Width: (0.2mm-1.5mm)*5mm
3). Industrial furnace ribbon:
Thickness: 1.5mm-3.0mm
Width: 10mm-30mm
4. Products and services
1). Pass: ISO9001: 2000certification, and ISO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery.
Other FeCrAl Alloy: 1Cr13Al4, 1Cr15Al5, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb etc
Please email us for more information
| Properties/Grade | 0Cr25Al5 |
| Main Chemical composition(%) | Cr | 23.0-26.0 |
| Al | 4.5-6.5 |
| Fe | Balance |
| Re | opportune |
|
|
| Max. continuous service temp. of element | 1250 |
| Resistivity at 20oC (μ Ω · m) | 1.42+-0.06 |
| Density (g/cm3) | 7.1 |
| Thermal conductivity(KJ/m· h· oC) | 46.1 |
| Coefficient of lines expansion(α × 10-6/oC) | 16 |
| Melting point (approx. )( oC) | 1500 |
| Elongation at rupture (%) | ≥ 12 |
| Micrographic structure | Ferrite |
| Magnetic properties | magnetic |
Hangzhou Ualloy Material Co., Ltd is a high-tech enterprise which specialized in making all kinds of alloy strip such as high resistance alloy, low-resistance copper nickel alloy, precision alloy, FeCrAl alloy for exhaust purifier.
HangZhou Ualloy Material Co., Ltd have a full production line from melting, surface cleaning, rolling and slitting, full set of testing machine and can meet all kinds of technical requirement from customer. Our product is widely used in heating equipment, big steel mill, mineral, electrical equipment, food machinery, auto industry, aerospace industry. Our product not only is popular in domestic market, but also been exported to all over the world.
Our company aims to be the best-quality alloy strip producer in the world. We insist on developing the more advanced alloy strip technology, to serve all the customer, improve people's living level, make a more green earth in the future.
