Qingzhou Guohua Construction Machinery Co., Ltd. >> 1.0t Compact Small Wheel Loader ZL10F with Articulated Engine

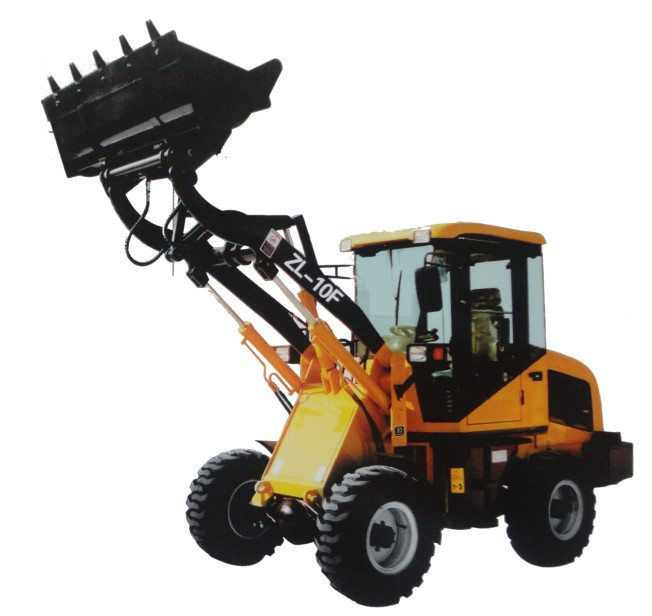

1.0t Compact Small Wheel Loader ZL10F with Articulated Engine

Name: 1.0t Compact Small Wheel Loader ZL10F with Articulated Engine
Brand: china-manufacturer-directory.com
SKU: 675333142
Availability: InStock
Rating: 4.7 (125 reviews)

Supplier:	Qingzhou Guohua Construction Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ZL10F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Optional
Rated Power:	20kw
Drive:	4 Wheel Drive
Overall Dimensions:	480016502600mm
Walking Mode:	Wheeled
Type:	Small Loader
Load And Unload Method:	Front Discharge
Certification:	CE
Condition:	New

Product Description

1. Compact wheel loader adopts Xinchai Diesel Engine, which has strong horsepower, improved energy efficiency and low fuel consumption, at the same time, can choose economical diesel engine such as"changchai";
2. It designed and buitl to deliver exceptional performance and versatility, ease of operation and serviceability.
3. The steamline design makes the appearance attractive and modern.

Model: ZL10F
	Item	Parameters
Performance	1 . Rated Load	1000 kg
	2. Total Weight	2530 kg
	3. Rated Bucket Capacity	0.5 m3
	4. Max. Tractive Force	30KN
	5. Max. Breakout Force	≥ 32 KN
	6. Max. Gradeability	38°
	7. Dumping Height	2800mm
	8. Dumping Reach	980 mm
	9. Raising Time	≤ 4.5 s
	10. Total Cycle Time	≤ 9 s
	11. Overall Dimensions (L x W x H)	480016502600 mm
	12. Min. Turning Radius	3000 mm
Engine	13. Model	CHANGCHAI 485 / XINCHAI 490
	14. Type	Four-cylinder, Horizontal, Water- cooled Evaporative, Four-stroke Engine
	15. Rated Power	20 kw
	16. Rated Speed	2200 rpm
	17. Min. Fuel Consumption Ratio	≤ 215 g/kw· h
Transmission	18. Model	Mechanical Shift
	19. Gear Shift	3 Forward, 1 Reverse
	20. Max. Speed	25 km/h
Drive Axle	21. Model	50 Drive Axle
	22. Wheel Tread	1370 mm
	23. Wheel Base	2150 mm
Hydraulic System	24. System Working Pressure	16 Pa
Hydraulic System	25. Fuel Tank Capacity	70L
Brake System	26. Driving Brake	Drum Brake
Brake System	27. Parking Brake	Flexible Shaft Controlled Disc Brake
Tyre	28. Type Specification	1200-16
	29. Front Tyre Pressure	0.40 Mpa
	30. Rear Tyre Pressure	0.35 Mpa

Located in the small construction machinery manufacturing base of China, Qingzhou City of Shandong Province, Qingzhou Guohua Construction Machinery Co., Ltd. is a professional small machinery manufacturer specialized in manufacturing of wheel loader, mini-loader, log loader, log grab, grass loader, grass grab, hay loader, hay grab, bale loader, bale grab, snow grader and forklift, as well as the gearbox for these compact construction machineries.

Founded in 1997, our factory covers an area of 15, 000 square meters and now has more than 180 workers. Equipped with complete production equipment, all necessary test devices and 6 senior engineers with over 15 years of experiences in mini machinery R & D, we can manufacture any type of compact construction machineries according to customers' design and requirements (ODM service). We also can provide OEM service for our worldwide customers and partners.

Thanks to our state-of-art technology, all our machineries have reliable performance and efficient operation and are CE approved. Besides providing the whole unit of different machineries, we also can provide quality accessories and parts for those machineries, such as multi-way directional valve (integrated with the priority valve), travel valves, precise filter, gear pump, instrument desk, entire vehicle lines, etc.

Due to the compact design, stable performance and competitive prices, our products sell well in the worldwide market and get favorable comments from our partners and customers at home and abroad. We warmly welcome worldwide distributors, buyers and customers come to visit us to build a mutually beneficial cooperation.
