Product Specifications
| Prod Model: |
110H3P-5025, 110H3P-020, 110H3P-5016, 110H3P-3013 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angle: |
1.2degree |
| Holding Torque: |
8n.M |
| Phase: |
3 Phase |
| Length: |
102-250mm |
| Type: |
Electromechanical |
| Number Of Stator: |
Three-Phase |
| Excitation Mode: |
HB-Hybrid |
| Number Of Poles: |
Other |
| Brand: |
Jk |
| Function: |
Other |
| Operate Mode: |
Driver |
| Certification: |
CE and RoHS |
Product Description

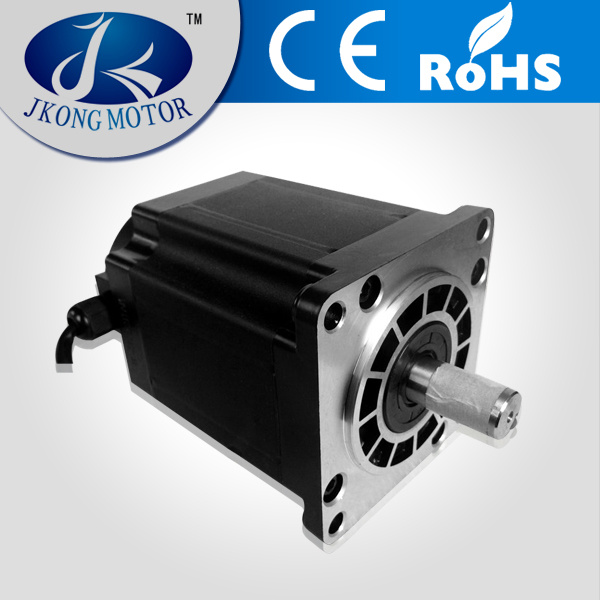

110mm 3phase high torque hybrid stepper motor NEMA42 /
110BYG350A, 110BYGH350B, 110BYG350C
/ high torque 110mm step motor/220v input Step motor/110v input stepping motor
Descrition:
NEMA42stepping motor, 110mm 3 Phase stepper motor.
21N, M Stepper motor, high torque stepper motor with 110mm size.
28 N. M stepping motor.
Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor,
Advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor.
Cnc router stepper motor.
WHY YOU CHOOSE US:
We are a professional manufacturer for Stepper motor, Stepper driver, BLDC motor and DC motor. We can supply OEM service.
Our products all with CE and ROHS.
Welcome you visit our company Changzhou Jingkong Motor&Electric Appliance Co., Ltd
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best products to clients at competitive price.
High quality.
Competitive price,
Good Packing,
Fast Delivery.
Timely after-sales service.
Believe that we will do our best!
|
Model No. |
Step Angle |
Motor Length |
Current
/Phase |
Resistance
/Phase |
Inductance
/Phase |
Holding Torque |
Motor
Length |
|
( °) |
(L)mm |
A |
Ω |
mH |
N.m |
Kg |
|
JK110H3P-3008 |
1.2 |
102 |
3 |
3.15 |
17 |
8 |
5 |
|
JK110H3P-3013 |
1.2 |
132 |
3 |
4.2 |
22.6 |
13 |
6.6 |
|
JK110H3P-5016 |
1.2 |
183 |
5 |
2.14 |
17.5 |
16 |
9 |
|
JK110H3P-5020 |
1.2 |
220 |
5 |
2.4 |
24.4 |
20 |
11.1 |
|
JK110H3P-5025 |
1.2 |
250 |
5 |
2.9 |
27 |
25 |
13 |
Changzhou Jingkong Motor&Electric Appliance Co., Ltd. Was found in 2005 located in High Technology Industry Zone in changzhou, China, has more than 100 staff and occupies an area of more than 1, 500 square meters. Now we are already passed RoHS and CE testing.
We offer excellent stepper motors, Stepper Motor Driver, DC Servo Motor, stepper Motor Power Supply, Stepper Motor Kit, CNC router. These are the best motors on the market. Stepper Motor is used on CNC router, CNC lathes, small to MID-sized CNC mills & milling machines, Laser Engravers and Laser cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. The stepper motor also has been used in precision telescope positioning systems and robots. Low inductance and high torque make these Motor the best choice.
We are an professional manufacturer for stepper motor, stepper driver, BLDC motor and DC motor.
We make hybrid stepper motor, hybrid gear stepper motor, hybrid stepper motor driver, brushless DC motor.
For stepper motor mainly have 20mm(8), 28mm(NEMA 11), 35mm(NEMA 14), 39mm(NEMA 16), 42mm(NEMA 17), 57mm(NEMA 23), 60mm (NEMA24), 86mm (NEMA 34), 110mm (NEMA 42) and so on.
Competotive price and high quality. Hope can cooperate with you.
