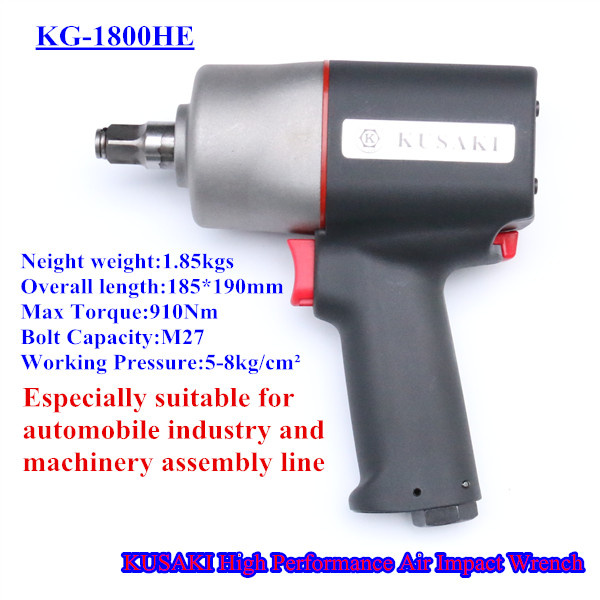

Product Specifications
| Prod Model: |
KG-1800HE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Square Drive (Inch): |
1/2" |
| Capacity Bolt Size (Mm): |
M24 |
| Free Speed (Rpm): |
8000rpm |
| Max Torque (Nm Ft-Lb): |
680nm 500ft-Lbs |
| Overall Length (Mm): |
185mm*150mm |
| Air Hose (I.D): |
3/8" |
| Air Inlet (PT): |
1/4" |
| Air Consumption (Cfm L/Min): |
4.2cfm 119L/Min |
| Net Weight (Lbs/Kgs): |
4.18lbs 1.90kgs |
| Type: |
Impact Wrench |
| Working Style: |
Rotary Type |
Product Description
Specification
Square drive (inch): 1/2"
Capacity Bolt Size (mm): M27
Free Speed (rpm): 8000rpm
Max Torque (Nm ft-lb): 850Nm 626ft-lbs
Overall Length (mm): 180*150mm
Air Hose (I. D): 3/8"
Air Inlet (PT): 1/4"
Air Consumption (cfm L/min): 4.2cfm 119L/min
Net Weight (lbs/kgs): 4.18lbs 1.90kgs
Feature:
---Twin hammer impact structure;
---Steady high speed output;
---Clear multiple speed; Handle exhaust with silencer;
---Ergonomic design; Comfortable grip;
---Housing material is made of recyclable composite;
---Environmental protection and durability;
---Light weight;
---Suitable for aftersale service of automobile,
---Assembly of motor cycle and various assembly lines for screw tightening and loosening;
---Also for construction steel structure, railway, ship machinery assembly.
---Small volume, light weight, small vibration, low noise, large power output;
---Torque speed promotes fast and strong, can quickly finish work assignments;
---According to the different requirements of work assignment, adjust the size of the rotational speed and torque;
---The operation is simple and safe.
|
KG-1800HE |
Square drive (inch) |
1/2" |
this tools have stronger motor .it was advanced than all the competitor . single handle change switch . stable peformance and high quality . |
|
Capacity Bolt Size (mm) |
M24 |
|
Free Speed (rpm) |
8000rpm |
|
Max Torque (Nm ft-lb) |
910Nm 670 ft-lbs |
|
Length*Hight(mm) |
180*190mm |
|
Air Hose (I.D) |
3/8" |
|
Air Inlet (PT) |
1/4" |
|
Air Consumption (cfm L/min) |
10.59cfm 300L/min |
|
Net Weight (lbs/kgs) |
4.18lbs 1.90kgs |
|
Packing (carton size) |
435mm*235mm*330mm 8pc/Ctn |
|
Delivery time (days): |
3-10days |
|
MOQ(PCS): |
10 pcs |
|
FOB PRICE : |
|
NingBo QiHui Machinery & Electronic Co., Ltd. Has the sales center in beautiful seaport Ningbo city, production base in Taizhou city. It is professional in design, produce and sell high quality industrial pneumatic tools. The company is managed according to ISO2008, TS16949 managing system. We have exclusive product research and design department, quality control department and skillful technicians. There are six assembly lines in working. The products are produced by precision facilities. We have inspection equipment imported from Germany. Our heat treatment facility is from Japan. All of the products got CE certificate. Our final test of the products is one by one to check the capacity, packing material to be double checking, 15% random inspection of lifetime is the final, when all of the inspection results are ok, goods will be allowed to send out to customers.
Our company is market oriented, quality is the essential. Our products has the characteristics of light weight, high efficiency, durable, benefit and environmental protective, are supplied to the industries such as automobile after-sales maintenance, industry workshop assembly line, shipbuilding and repair, oil field and mining to solve the problem happen in these fields. We are cooperating with the end-user companies like BYD, BMW, GEELY, Honda, we also have dealer located in different areas as long-term partners. We provide OEM/ODM service, the warranty of the tools is one year. Welcome your suggestions to improve our production and development.
