Product Specifications
| Prod Model: |
ZMUX-30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 19 Inch Rack: |
1u (Height) |
| Type: |
Wired |
| Information Content: |
Voice |
| Certification: |
SGS |
| Usage: |
1 ~ 30 Service Channels by G.703 E1 Lines |
| Support Network: |
No |
Product Description

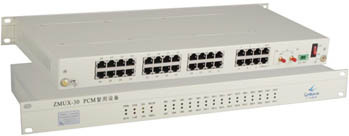

ZMUX-30 PCM multiplexing equipment transmiss 1~30 FXO/FXS, 2/4W E&M RS232, RS422, RS485, V.35, Ethernet, CAN bus module user service over 1 E1/2M (G.703).
Built-in power supply: -48VDC,
External power supply: 220VAC, optional dual power access.
E1 Physical interface::CC4 or BNC 75 Ohm or RJ45 120 Ohm
Dimension: 19 inches rack 1U 480mm(W)*44mm(H)*210mm(D)
Features:
User interfaces are designed as modular,one module corresponds to a channel user interface.
It can provides 30 channels universal module slots and support a variety of modules intermixing,accordance with the customer's actual business and the number of assembly module, a device that meets all business communications needs of customers.
Each module works independently, and don't affect each other.
Easy expansion, the expansion module to an empty cartridge slot, plug and play, do not need any debugging.
A simple installation and connection cable ,they can be opened normally.
User Interface:
Voice:
Loop relay module (FXO module, connected to PBX switch)
Analog line module (FXS module, connected to telephone)
Hotline / public phone / service phone module
Audio:
2W audio module
4W audio module
2W EM module
4W EM module
Data:
Asynchronous RS232/V.24/V.28 module
RS422 module
RS485module
Synchronous RS232 module (DTE or DCE)
10Base-T Ethernet module (n * 64k bandwidth)
X.21 / V35 module (n * 64k bandwidth)
G.703 syntropy 64K digital module
CAN bus module
Guangzhou Yinxun started as an R&D house in 1986, two senior experts who mastered licensed technologies in telecommunications began to commercialize their innovations into products.
Since the establishment of our factory in the year 2002, we have been dedicated to the development and production of telecom-carrier-class PCM E1 access and transmission products such as PCM multiplexers, phone optic mux, E1 failover (protection) switch, DXC, PDH multiplexer equipment and optic integrated access device as well as some accessory patch panels (such as ODF, VDF, DDF), cabinets and industrial switching power supply, etc. Most of our products feature modular design with single PCB layout, flexible configuration and easy operations and maintenance. Customers across 25 countries rely on us for reliable OEM services, innovative &cost-effective products and responsible customer care services. Some of our clients are big players in the world, such as Lucent, China Telecom, China mobile, etc.
Customers across 25 countries rely on us for reliable OEM services, innovative &cost-effective products and responsible customer care services. Some of our clients are big players in the world, such as Lucent, China Telecom, China mobile, etc.
We have our own research center made up of several senior engineers, three of them have more than 10 years' R&D experience. Send us your ODM requirements, and within 30 days, our R&D team will give you a solution.
Located near Canton fair at Tianhe district in Guangzhou, our 3, 000-square-meter factory complies with the ISO 9001: 2000 standard. Equipped with five semi-automated production lines, we can turn out 1, 000 units for each model monthly. All of our products are 100% inspected and under 48 hours burn-in test before dispatch
We source ICs, capacitors and resistors from Japan, USA and components from well-respected OEM manufacturers.
Some of our products carry network access license for telecom devices issued by China's Ministry of Industry and Information Technology, and some hold quality certificates from Shanghai branch of Bell Laboratories. To ensure a qualification rate of 99.9 percent, our strict QC is composed of seven testing processes that are carried out in-house based on the guideline of international SGS testing criteria.
Currently, we provide OEM, ODM and one-stop sourcing solutions for buyers in Europe, the Middle East and South Asia. In China and Africa, Guangzhou Yinxun has been regarded as one of the most famous producers in PCM and optical fiber access devices producers for the cost -effectiveness and reliable quality. To start benefiting from our strong R&D ability and OEM services worldwide - please inquire our sales today.
