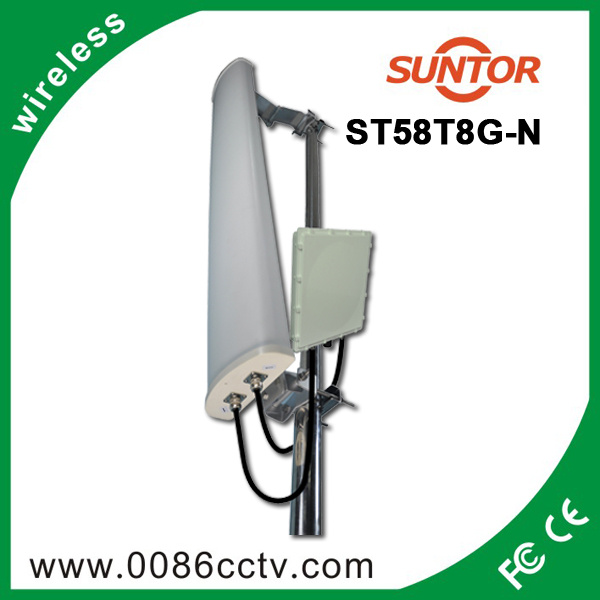

1-30km Wireless WiFi Video Transmitter and Network Bridge Transmission (ST58T8G-N)
Product Specifications
| Prod Model: |
ST58T8G-N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Sdram: |
32 Mbyte |
| Flash: |
8 Mbyte |
| Antenna: |
External High-Gain Dual-Polarized Antenna |
| Application: |
AV, RS485, Internet and WiFi Transmission |
| Receiver Chip: |
Atheros Ar7240+ Ar9280 |
Product Description
1-30km Wireless wifi video transmitter and Network Bridge Transmission (ST58T8G-N)
Feature:
1. ST58T8G-N support 802.11an work mode, belonging to the industrial grade outdoor wireless bridge, dual antenna design, the maximum support 300Mbps transfer rate.
2. Design transmission distance of 30 kilometers,
3. Support the transmission of multimedia signals
4. Support the Spanning Tree Protocol
5. Support bandwidth control, up to 8 multipoint, you can write eight different MAC address.
6. Support AP mode, bridge mode, client mode and repeater mode is very easy to use,
7. This product of good choice among the engineering, the signal is very stable.
8. Main features:
High-speed wireless data connection
External high-gain dual-polarized antenna
29dB high-power output
The design of water corrosion
Industrial-grade hardware and software design
Suitable for large projects.
Package Contents :
* 18dbi Directional Patch Antenna
* High Power AP (AP/Client/WDS)
* Power Adapter 12V DC@ 1.25A/1.5A
* PoE Base Unit
* Mounting Kit
Application:
|
Standards Compliance |
IEEE 802.11a/n; IEEE802.3; IEEE802.3u |
|
CMOS chip |
Atheros AR7240+ AR9280 |
|
SDRAM |
32 M Byte |
|
Flash |
8 M Byte |
|
Network interface |
2 x 10/100 Base-T RJ45 interface |
|
Radio Frequency Type |
OFDM |
Transmission Rate |
- 802.11a: 54, 48, 36, 24, 18, 12, 9, 6Mbps
- 802.11n:
20-MHz bandwidth: MCS 0~15 support data rate
40-MHz bandwidth: MCS 0~15 support data rate |
|
Frequency |
5.15~5.35 GHz
5.47~5.7 GHz
5.745~5.825 GHz |
|
Transmission Power |
Up to 29 ± 2 dBm |
|
Sensitivity |
-92dBm @ 11Mbps, -73dBm @ 54Mbps, -73/-69dBm @ HT20/HT40 MCS15 |
Security Systems |
- 64-bit/128-bit/152-bit WEP encryption
- WPA/ WPA2 (-PSK using TKIP or AES) WPA/ WPA2 (-EAP using TKIP);
- 802.1x Authenticator; Hide SSID in beacons |
|
Antenna Type |
External dual antenna type |
Operation mode |
Operation Mode – AP/ Client Bridge/ WDS Bridge PtP and PtMP (up to 8 links)
Channel Selection (Setting varies by Country)
Transmit power adjustable stepper 1dBm |
Teng Yuanzhi Shenzhen Electronic Co., Ltd. is specialized in high-end wireless video monitoring system, colsed-circuit monitoring system satellite communication system, CATV and microwave remote video surveillance system. Wireless control and image transmission system development and application of high-tech private enterprises. The company is one of the wireless microwave transmission systems and network multimedia communications pioneer and leader.
The company has the strong technology and R&D capacity reserve, also has the climax R&D team, we are all committed long-distance microwave communicate industry, serviced security information and radio & TV industry. To create a peaceful harmonious society, we have the responsibility to revitalize the national science & technology. In today's world, the high-quality Remote microwave video transmission system has been widely used in various industries. Including: Government departments, Military, Security system, Oil field, Construction Corps, Large mining, Factories, Construction sites etc., for others large places discommodiousness span the cable need to set up the remote transmission. We are supplying for customers the wireless communication networking, wireless video surveillance and video conferencing integrated complete set of solve project. At present, our company has developed and had a few categories of products, high-end applications for the mobile, high-resolution image transmission system, base on 2.4/5.8GHz license-exempt bands wireless network transmission systems and traditional analog microwave remote image transmission system, the transmission distance from a few tens of meters to several kilometers. Change system can be applied to mountain, forest, countryside, desert, rivers, islands, oil, electricity, construction sites and other places the transmission environment.
The Remote image transmission system can transmit real-time, long-distance and high-definition video images, because of the image carrier frequency so high, has a strong immunity and transmission long distance, so it be popularitied by customers in the industry and has achieved good social benefits.
