Features
1/3" SONY Exmor Sensor Progressive Scan,1.3MP;
Support static IP(IP address,subnet mask,gateway and DNS setting available);
Support PPPOE, RTSP, VLC, NTP,UPNP;
Streaming switchable(Audio streaming or video streaming);
Support Image adjustable(Brightness, contrast, hue, saturation);
Support VBR nad CBR, VBR setting;
3D DNR, D-WDR, Antifog, Antistemble;
PoE optional;
5 user IE viewing in the same time,4 mask zone;
4CH multiscreen play back in the same time.

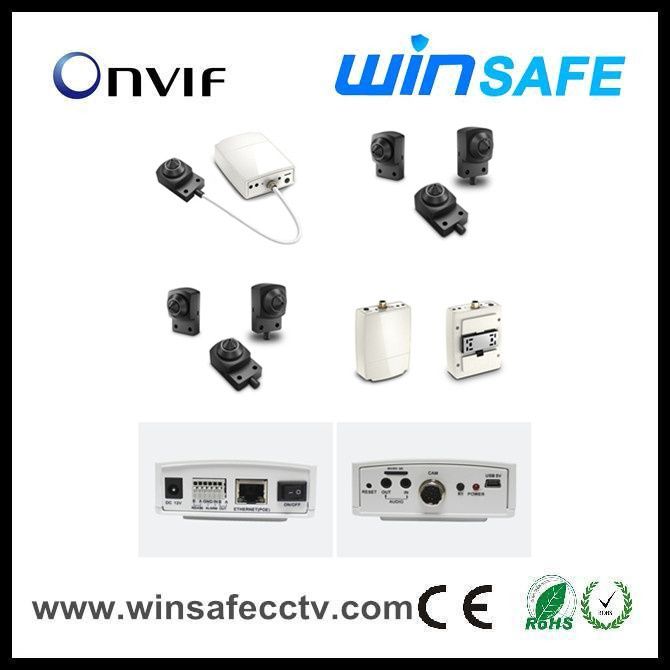

Specification |
|
|
| Model | WS-IP315 |
| Hardware |
| SOC | Hi3518A |
| Pick-up Device | 1/3" Sony progressive scan EXMOR CMOS,1.3Megapixel |
| Effective Pixel | 1280(H) x 1024(V) |
| Interface |
| Optical Lens | Interfaces | Pinwhole 3.7mm/4.5mm |
| Iris | N/A |
| Focal Length | N/A |
| Audio Talkback | 1 CH 3.5mm AV interface |
| Audio Output | 1 CH 3.5mm AV interface |
| Network Interface | Lan | 10/100M BASE-TX, RJ-45 connector |
| RS485 | RS485 port optional |
| Alarm I/O | 1ch Alarm input or 1ch alarm output |
| Memory Slot | Micro SD Card slot, Max 32GB |
| Audio & Video encoding |
| Video Compression | H.264 Main Profile; MJPEG Baseline |
| Resolution | Main Stream | 1280*1024/1280*960/1280*720; 1-25fps(Adjust) |
| Mub Stream | 720*576/640*480/640*352/352*288/320*240;1-25fps(Adjust) |
| Video Bitrate | 30Kbps -- 16Mbps, Supports CBR/VBR |
| Title OSD Settings | Support channel name, date, and video stream information overlay |
| OSD location is adjustable |
| Privacy Mask | 4 configurable regions |
| Image Orientation | Image Flip and Mirror |
| Auto Image Control Functions | Auto Exposure Control(AEC); Auto White Balance(AWB);Auto Gain Control(AGC) |
| Manual Image Controls | Color saturation, hue, gamma, sharpness(edge enhancement) |
| Others | Anti Fogging/Anti Trembling/IR Detection/IRIS |
| Audio Compression | G.711A/G.711I/G.726 |
| Two Way Audio | Support |
| Date Transmission and Storage |
| Date Storage | Video and Image |
| Recording | Recording set up to record by Auto or manual(motion and alarm trigger, schedule) |
| Alarm Output | FTP, E-Mail |
| Network Protocol | TCP/IP\UDP\RTP\RTSP\RTCP\HTTP\DNS\DDNS\DHCP\FTP\NTP\PPPOE\SMTP\UPNP |
| Wireless product(-W) | N/A |
| ONVIF protocol | Support 2.2 version |
| Remote View | PC | IE 6.0 Above, firefox, google chrome |
| Mobile Phone | Support Windows Mobile, Symbian, iPhone, Android system |
| Max.User Access | 5 users |
| General Parameters |
| Environmental Casing | Aluminum alloy housing, Indoor Use |
| Installation | Different bracket optional |
| Operation Temp. | - 10 °C -- 50°C |
| Operation Humidity | 0% -- 85%RH |
| Power Supplier | DC12V |
| POE | Optional |
| Power Consumption |
|
| Dimension | L3.8mm x W2.3mm x H2.3mm(Camera) & L90mm x L110mm x H30mm(function box) |
| Weight | 350g |
Originally founded in 2002, WINSAFE Technology Co., Ltd. is a private high-tech entity specialize in CCTV and video surveillance products. We design\produce and sell all kinds of CCTV products and video conference products that are of high quality\good service and competitive prices to overseas customers
We manufacture a full-line of innovative CCTV and video surveillance products, such as Weather Proof PTZ Cameras for fast deployment, which can be installed in vehicle systems, surveillance tower, systems, rapid deployment case and also on tripods, IP & Analog PTZ Cameras, IR PTZ Cameras, HD-SDI IP & Analog PTZ Cameras, Household IP Cameras, DVR & NVR, PTZ Controller, Dome Cameras, Video Conference Cameras etc.
At present, The Company owns a 3, 000 square meters factory with 200 employees, which includes16 R&D engineers with rich experience in the line of security and IT products, . We promote new technologies every 6 six month, also we can produce the products at customer's request for we have a complete manufacture and quality managing system of products.
Our products are widely applied in surveillance systems of Bank, airport, traffic, supermarket, apartment, office, army etc. We serve for more than 30 countries, such as USA, Canada, Mexico, UK, German, Switzerland, Italy, Spain, France, Japan, Vietnam, Indonesia, Malaysia, Singapore, etc. Meanwhile, we are providing ODM/OEM services to global brands.
