Product Specifications
| Prod Model: |
ZL15F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
A498bt1 |
| Bucket Capacity: |
0.55m3 |
| High Quality: |
Best Price |
| Size: |
4250X1850X2650mm |
| Fork: |
Pallet Fork Grapple Fork |
| Munltifnction Job: |
4 in 1 Bucket |
| Type: |
Small Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
CE |
| Condition: |
New |
Product Description
SpecificationsCS915 compact wheel loader with CE
(1)Deluxe cab with good view
(2)Transmission: Hydraulic
(3)Joystick
(4)EURUO 3 Engine
Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments.70% of our products are made for export. We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.

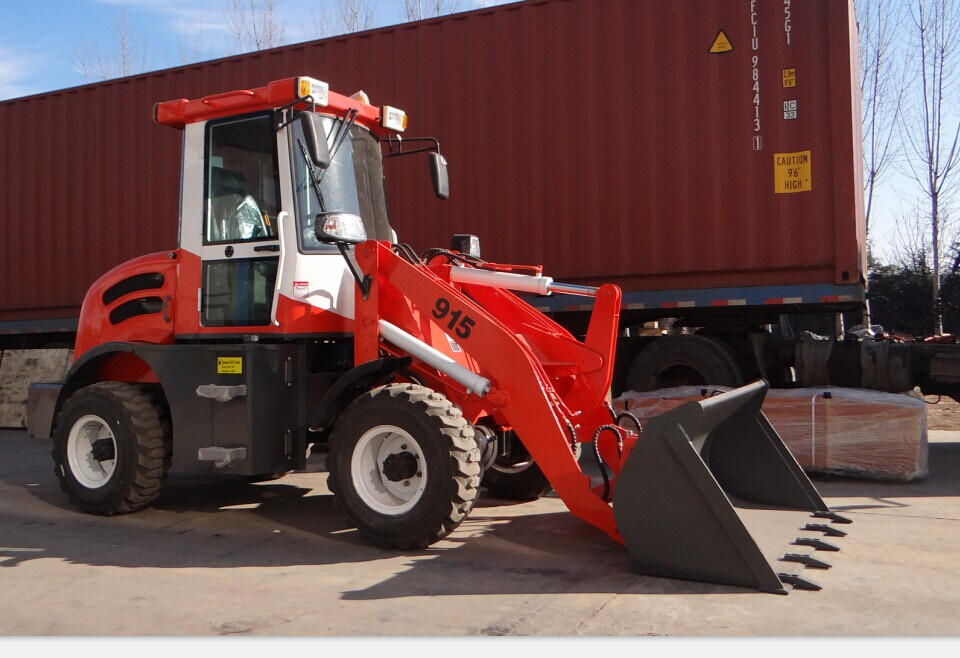

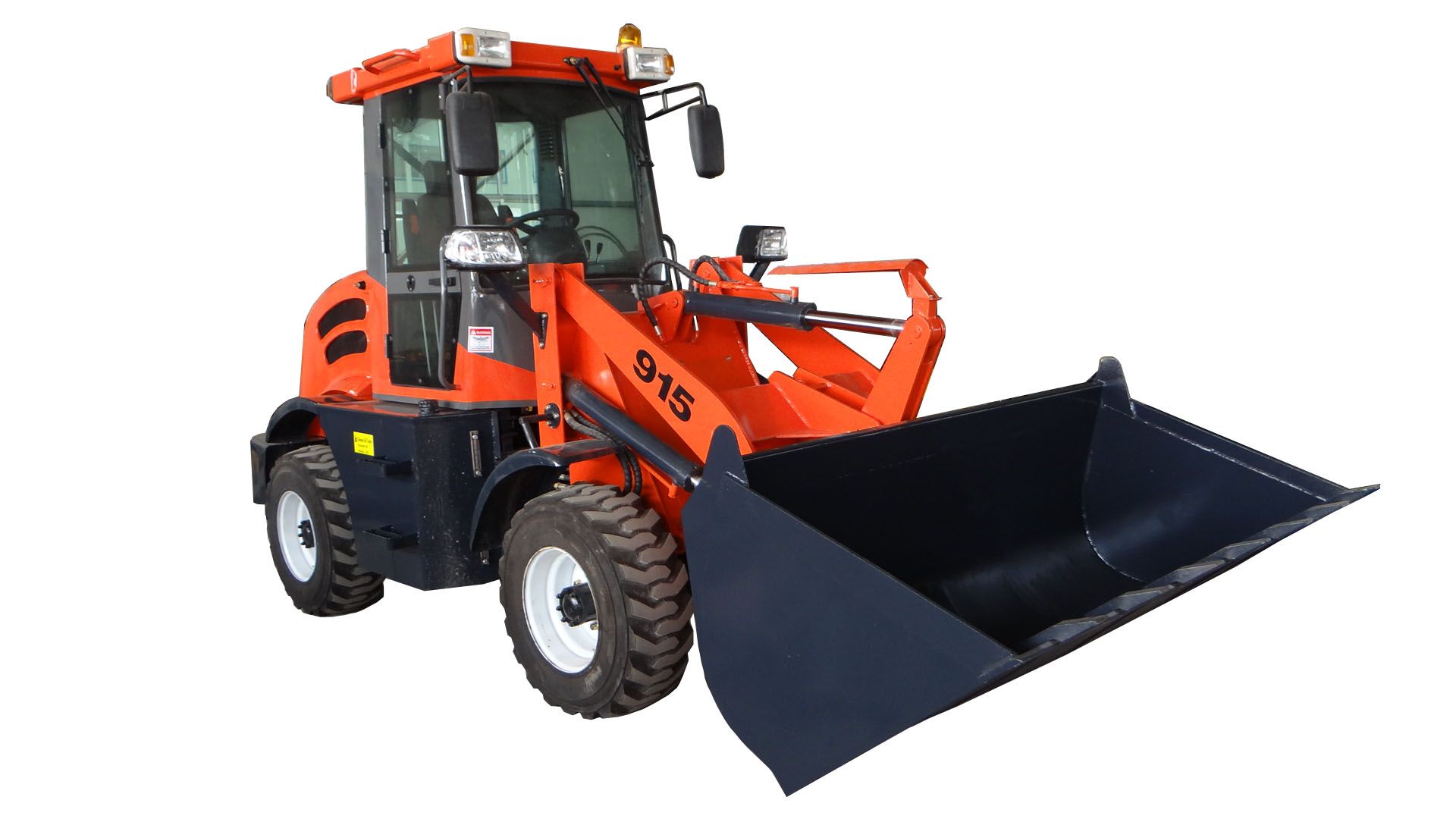

Product Description1.5ton Mini Wheel loader 915 with CE
1)Engine:498BT1 EURO III Engine
2)Hydraulic quick change
3)Joystick
Features:* Manufacturer
* Advanced configurations
* Good work performance
* Easy and convenient operation
* Reasonable price
* CE certification
* Euro III diesel engine
* Perfect after sale service
* CS915 mini wheel loader: 4 wheel drive, hydraulic steering, with stronger arms for loading and unloading work
Detailed facture
Packaging & Shipping 1 Packaging Details: wheel loaders are nude packed, well fixed, accessories are available. 3units/40'HQ
2 Delivery Detail: 20 workdays after receipt the wheel loader deposit
Why choose us?: 1)A professional international sales team, which enable us to turn inquiries into final products and export them to numerous countries and regions without barriers; 2) A well managed quality control system to customize on clients requirements. We can design according to customers usage invironment.
3)Unparalleled after sales service FAQ1. How to order?-After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 26 days after we getting the deposit, we will send to the port and deliver to you by sea.
-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.
-If you still don't understand, please do not hesitate to ask me
.2. Related products?ZL06F ZL08F ZL10F ZL12F ZL15F ZL16F ZL20F
3. How do we visit you and your factory?-First of all, welcome you or any appointed agent to vist and inspect our factory.
-You can fly to Shanghai airport, then come from Shanghai railway station to Weifang city. (3 hours)
-You can fly to Qingdao airport, then come from Qingdao railway station to Weifang city. (45 minutes)
-We can pick up you at Qingdao airport or Weifang railway station.
-Please kindly let us know your schedule in details, so that we can arrange everything for you.
5. Why you choose us?-As manufacturer, our products have excellent quality and competitive price.
-Good after-sales services and 24 months warranty are visible.
-Strictly testing and checking before shipping.
-7 years experience in manufacturing and 7 years exporting experience in Alibaba and Made-In-China.
6. How to contact with me?-Sales director: Mr Alex Zhu
-Mob: 86 13081451066
-Address: Office add: R 2007 rongguanhuafu B Kuiwen, Weifang, Shangdong, China
Factory add: Shanshui Road,Changle,Weifang,Shangdong,China
| Overall Dimension |
| 1 | Length(with bucket on ground) | 4900(mm) |
| 2. | Width(to outside of wheels) | 1830(mm) |
| 3 | Bucket width | 1700(mm) |
| 4 | Height(To the top of the cab) | 26500(mm) |
| 5 | Wheel base | 2060(mm) |
| 6 | Tread | 1400(mm) |
| 7 | Min. ground clearance | 210(mm) |
| Main Technical Specification |
| 1 | Rated load | 1500(Kg) |
| 2 | Operating weight | 3350KG |
| 3 | Rated bucket capacity | 0.5 (CBM) |
| 4 | Bucket type | Heavy-duty bolt teeth |
| 5 | Max. breakout force | 36kN |
| 6 | Max. dump clearance | 2650(mm) |
| 7 | Min. turning radius | 4500mm |
| 8 | Driving system | Hydraulic converter |
| 9 | Traveling speed(Km/h) | 2 forward and 2 reverse |
| (1) 1st gear forward | 5.75 |
| (2) 2nd gear forward | 23.86 |
| (3) 1st gear reverse 5.85 | 5.85 |
| (3) 2nd gear reverse | 24 |
| Diesel engine |
| 1 | Model | A498 BT1 EURO 3 |
| 2 | Type | In-line arrangement. Water cooling |
| 3 | Rated output | 37 (kW) |
| 4 | Inter-bore of cylinder/stroke | 95 (mm) |
| 5 | Rated speed | 2300(r/min) |
| 6 | Max. Torque | 275(N. M) |
| 7 | Starting type | Electric |
| 8 | Min. fuel consumption | 230(g/Kw. h) |
| 9 | Net weight | 240(kg) |
| Transmission System |
| A Torque Converter |
| 1 | Model | YJ240 |
| 2 | Type | Fixed-spindle power shift |
| 3 | Cooling type | Pressure oil circulating |
| B Transmission case |
| 1 | Type | Power shift, spur gear constantly in mesh |
| 2 | Gear shift position | 2 Forward and 2 reverse gears |
| C Axle and Tire |
| 1 | Type of main reducer | spiral bevel gear, single stage |
| 2 | Size of tire | 12-16.5 |
| Brake system |
| 1 | Service brake | 4 wheel hydraulic brake |
| 2 | Parking brake | Hand operated |
| Steering System |
| 1 | Type | Middle articulated frame with hydraulic power steering |
