Wuhan Kudat Industry & Trade Co., Ltd. >> 1.5tons Loaders with EPA Engine CS915

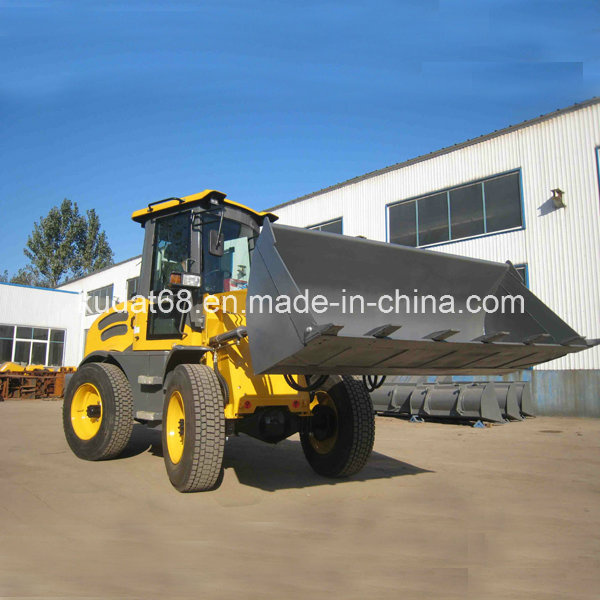

1.5tons Loaders with EPA Engine CS915

Name: 1.5tons Loaders with EPA Engine CS915
Brand: China-Manufacturer-Directory.com
SKU: 749295305
Availability: InStock
Rating: 5 (32 reviews)

Supplier:	Wuhan Kudat Industry & Trade Co., Ltd.
Price:	US $ 12680/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	CS915
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rate Load (Kg):	1500
Bucket Capacity (M3):	0.65
Wheel Track (Mm):	1626
Wheel Base (Mm):	1955
Min. Turning Radius (Mm):	4020
Dump Clearance(Mm):	2650
Dump Reach (Mm):	982
Operating Weight (Kg):	3600
Overall Dimensions (LengthWidthHeight):	485016502727
Engine Rated Power (Kw):	36.8
Walking Mode:	Wheeled
Condition:	New
Type:	Small Loader
Certification:	ISO9001: 2000
Load And Unload Method:	Front Discharge

Product Description

Main specification for CS915 mini Wheel Loader with CE and EURO III Engine

Model CS915
Rated loading weight: 1500kg
The minimum circle diameter 300mm
Rated bucket capacity 0.65 CBM
Wheel base 1955mm
Min. Turing diameter 4020mm
Min ground clearance 272mm
Max. Dumping reach 2652mm
Reach fully raised 982mm
Lifting time 4.5 s
Driving mode Four-wheel full hydraulic drive
Transmission gear box form
2 gear hydraulic speed change
Dimension(L*W*H) 4850*1650*2800mm
Engine model A498BT
Rated speed 36.8kW@2400rpm
Max. Angle 30 degree
Max bucket Force 45 KN
Main Specification:

Rate load (kg)	1500	Max. breakout force (kN)	45
Bucket capacity (m3)	0.65	Max. gradeability	30%
Wheel Track (mm)	1626	Drive Means	Four wheel Drive
Wheel base (mm)	1955	Operating weight (kg)	3600
Min. Turning radius (mm)	4020	Overall dimensions (Lengthwidthheight) (mm)	4850x1650x2727
Min. ground clearance (mm)	272	Overall dimensions (Lengthwidthheight) (mm)	4850x1650x2727
Dump clearance(mm)	2650	Engine Model	Cummins engine
Dump Reach (mm)	982	Engine Rated power (HP)	60
Lifting time of bucket (s)	4.5	Engine Rated output (rpm)	2200

Since 1990, Kudat Industry and Trade Company has exported engineering machinery, construction machinery and agricultural machinery to international markets. Satisfying customers' stated and implied needs have always been the focus of business policy of Kudat. As a further step to satisfy customers and to give them confidence in our quality & production capabilities, Kudat has adopted ISO 9001: 2000, the international quality management system. And some of our products have also passed CE and EPA certification.

With a rich inventory of numerous products and vast sourcing capabilities (more than 60 famous manufacturers) cater to the requirements of its customers. Except abundant of products, we also set up factory for studying and producing relative machinery products. From base to top, Kudat holds a unique position in the global market of machinery products which is combination of production and trade.

With 16 years experience in the export of machinery products, Kudat has gained reputation and confidence as a reliable Chinese supplier. By virtue of committed management and dedicated employees, Kudat has gained recognition from the government of China as an excellent exporter.
