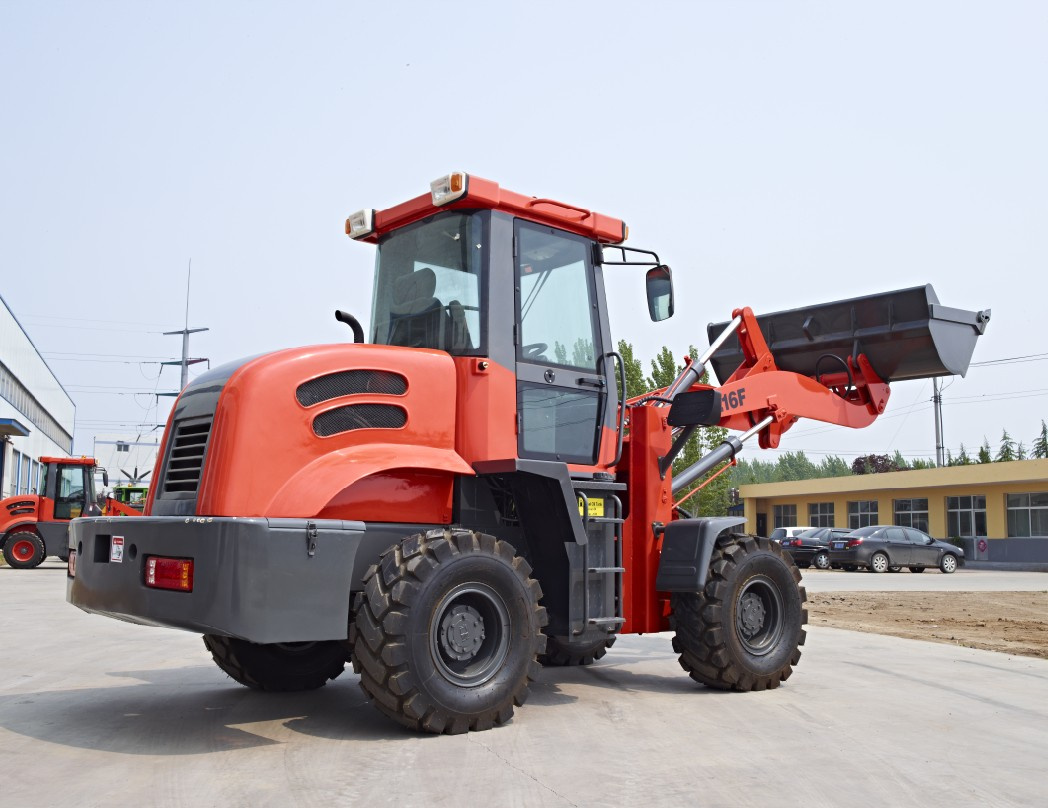

1.6ton Quick Hitch Front Loader Zl16f Wheel Loader

Name: 1.6ton Quick Hitch Front Loader Zl16f Wheel Loader
Brand: china-manufacturer-directory.com
SKU: 691481912
Availability: InStock
Rating: 4.7 (26 reviews)

Supplier:	Weifang Map Import & Export Co., Ltd.
Price:	US $ 10600/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ZL16F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engine:	Zh4100k14-3
Rated Load:	1600kg
Type:	Wheel Excavator
Size:	Small-Scale
Certification:	CE
Condition:	New
Bucket Capacity:	0.9m3

Product Description

Wheel loader ZL16F

Rated loading: 1600KG
Bucket capacity: 0.9m3
Max. Dumping clearance: 2800MM
Max. Traveling speed: 25 (km/h)
Forward gear: 10km/h
Forward gear: 24km/h
Reverse gear: 9/5km/h
Reverse gear: 23.5km/h.

Max. Gradeability: 60 (0)
Length (bucket on ground): 4952 (mm)
Width: 1950mm
Height: 2750mm
Engine Model: ZH4100K14-3
Vertical, in-line, water cooled, 4-stroke, 4 CYLINDERS diesel engine
Rated power: 29KW/2400RPM
Fuel consumption at rated load ≤ 251.6 (g/kw. H).

Overall Dimension

Length(with bucket on ground)

4800(mm)

Bucket width

1910(mm)

Height(To the top of the cab)

2700(mm)

Wheel base

2150(mm)

Tread

1500(mm)

Min. ground clearance

342(mm)

Main Technical Specification

Rated load

1600(Kg)

Operating weight

4300KG

Rated bucket capacity

1.0(CBM)

Max. breakout force

45KN

Max. dump clearance

2850
(mm)

Dump reach

960(mm)

Dump angle at any position

≤40

Digging depth(with bucket bottom horizontal)

146(mm)

9 Max. turning radius

(1) Outside of bucket

4850(mm)

(2) Outside of rear wheel

4675(mm)

Pivot angle frame

38+

Oscillating angle of rear axle +

±11°

Lifting time of bucket

≤5.9(sec.)

Lowering time of bucket

≤2.8(sec.)

Dumping time

≤2.0(sec.)

Traveling speed(Km/h) 2 forward and 2 reverse

(1) 1st gear forward

10.00

(2) 2nd gear forward

24.00

(3) 1st gear reverse

10.00

(3) 2nd gear reverse

24.00

Diesel engine

Model

ZH4102Weichai huafeng

Type

Direct injection. 4 Cylinders Water cooling

Rated output

47(kW)

Inter-bore of cylinder/stroke

100 (mm)

Total exhaust of cylinder

4(L)

Voltage of starting motor

24(V)

Rated speed

2300(r/min)

Max. Torque

270(N.M)

Starting type

Electric

Min. specific fuel consumption

251(g/Kw.h)

Net weight

360(kg)

Transmission System

( A)Torque Converter

Model

265

Type

3-elements.single stage

Torque ratio

3.06

Cooling type

Pressure oil circulating

(B)Transmission case

Type

power shift, spur gear constantly in mesh

Gear shift position

2 Forward and 2 reverse gears

(C)Axle and Tire

Type of main reducer

spiral bevel gear, single stage

Gear ratio of main reducer

5.83

Type of final reducer

Single stage planetary

Gear of ratio of final reducer

5.6

Gear ratio

32.66

Size of tire

16/70-16 or 20.5/70-16

Working Device Hydraulic System

Model of oil pump

CBG 1016

System pressure

160(kgf/cm2

Model of distribution valve ZS

ZS1-L20E-F-20

Priority-valve YX

YX2-F160L-N

(D*L)Dimension of lifting cylinder

φ90*50*548(mm)

(D*L)Dimension of tilting cylinder

φ110*63*409(mm)

Steering System

Type

Middle articulated frame. Co-axis flow amp. Steering

Model of steering pump

CBG 2063

Model of steering gear

BZZ5-250

System pressure

125(kgf/cm2

Dimension of steering cylinder

φ63*35*249(mm)

Parking System

Type of traveling brake

Assisted oil.4 wheel brake

Air pressure

5.9-7.9(kgf/cm)

3 Type of parking brake

inner expand hoof Automatic boosting. inner expand hoof

Oil Capacity

Fuel(diesel)

80(L)

Engine lubricating oil

16(L)

Oil for converter and gear box

20(L)

Oil for hydraulic system

100(L)

Oil for driving axles

26(L)

Weifang Map Power Co., Ltd., was founded in 2006. We are a professional manufacture and chain supplier specializing in construction machinery and agricultural equipments. 70% of our products are made for export.

We keep diverse products according to customer and market demand. We produce and supply site dumpers, wheel loaders, tractors, implements, wheel excavators, crawler excavators, backhoe loaders, forklifts, road rollers, light towers, concrete mixers, plate compactor, impact tampers, road cutters, concrete vibrators, and so on.

With experiences in professional manufacturing, Map Power has successfully sold equipments to around 30 countries and areas around the world including Australia, New Zealand, Canada, England, Poland, Dutch, Italy, Russia, India, Main countries of Africa...

Our main products list.

Agricultural machinery:

1. Tractor from 18HO-130HP

2. Farm implemants covered dics mower, lawn mower, tractor mouting front end loader, backhoe loader, sweeping machine, snow blower, dics plow, dics harrow and etc.

Construction machine:

Wheel Loader, Truct Crane, Wheel Excavator, Crawler excavator, Backhoe Loader, Forklift, Road Roller, Concrete Mixer, Plate Compactor, Impact Tampers, Road Cutters, Concrete Vibrators, and so on.

Customer's requirement is our first priority. We can provide reliable, fast and professional service for you through telephone, on-site or network channels. We are ready to provide all customers with 10 years spare parts supply. Furthermore, if your products parts are damaged, please also contact us to see if it could be restored, and if so, you can avoid the trouble and cost of purchasing new spare parts. In our spare parts department, customers can get professional technical advice, as well as the relevant information regarding all products and services

With experiences in professional manufacturing for more than 10 years. WEIFANG MAP POWER Co. Has successfully sold equipments to around 40 countries and areas. We sincerely welcome customers and friends all over the world to visit our factory and cooperate with us in the future.
