Product Specifications
| Prod Model: |
ZL16F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rate Load (Kg): |
1600 |
| Bucket Capacity (M3): |
0.8 |
| Wheel Track (Mm): |
1440 |
| Wheel Base (Mm): |
2150 |
| Dump Clearance(Mm): |
2400 |
| Dump Reach (Mm): |
885 |
| Operating Weight (Kg): |
4800 |
| Drive Means: |
Four Wheel Drive |
| Overall Dimensions (Length*Width*Height): |
5088*1905*2880 |
| Engine Rated Power (Kw): |
45 |
| Walking Mode: |
Wheeled |
| Condition: |
New |
| Type: |
Small Loader |
| Certification: |
ISO9001: 2000 |
| Load And Unload Method: |
Front Discharge |

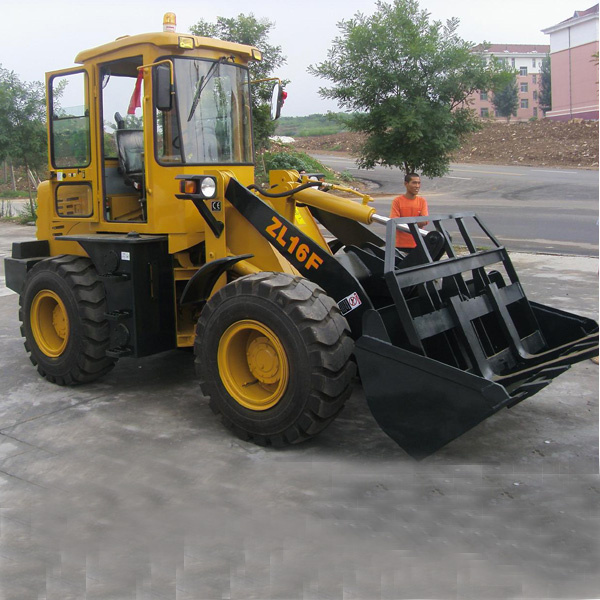

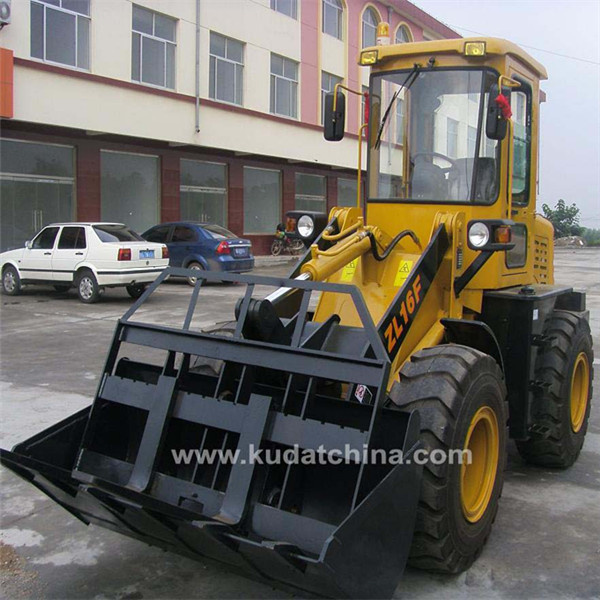

Product Description
1. Using direct injection diesel engine as power, with easy startup and low oil consumption
2. Using special drive axle, with strong ability to overcome obstacle
3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5. Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
|
Rate load (kg) |
1600 |
Max. breakout force (kN) |
48.87 |
|
Bucket capacity (m3) |
0.8 |
Hydraulic cycle time (s) |
9.2 |
|
Wheel Track (mm) |
1440 |
Drive Means |
Four wheel Drive |
|
Wheel base (mm) |
2150 |
Operating weight (kg) |
4800 |
|
Min. Turning radius (mm) |
4639 |
Overall dimensions (Length*width*height) (mm) |
5088*1905*2880 |
|
Min. ground clearance (mm) |
310 |
|
Dump clearance(mm) |
2400 |
Engine Model |
4 102 |
|
Dump Reach(mm) |
885 |
Engine Rated power (kw) |
45 |
|
Lifting time of bucket (s) |
4.8 |
Engine Rated output (rpm) |
2400 |
Since 1990, Kudat Industry and Trade Company has exported engineering machinery, construction machinery and agricultural machinery to international markets. Satisfying customers' stated and implied needs have always been the focus of business policy of Kudat. As a further step to satisfy customers and to give them confidence in our quality & production capabilities, Kudat has adopted ISO 9001: 2000, the international quality management system. And some of our products have also passed CE and EPA certification.
With a rich inventory of numerous products and vast sourcing capabilities (more than 60 famous manufacturers) cater to the requirements of its customers. Except abundant of products, we also set up factory for studying and producing relative machinery products. From base to top, Kudat holds a unique position in the global market of machinery products which is combination of production and trade.
With 16 years experience in the export of machinery products, Kudat has gained reputation and confidence as a reliable Chinese supplier. By virtue of committed management and dedicated employees, Kudat has gained recognition from the government of China as an excellent exporter.
