1-7t/H Large Capacity and Low Price Straw Rotary Cutter for Sale

Name: 1-7t/H Large Capacity and Low Price Straw Rotary Cutter for Sale
Brand: china-manufacturer-directory.com
SKU: 694163362
Availability: InStock
Rating: 4.6 (138 reviews)

Supplier:	Zhangqiu Tony Made Machinery Co., Ltd.
Price:	US $ 15000/Piece
Min Order:	1set
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	TPX2000
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	55-90kw
Number Of The Hammer:	18PCS
Number Of The Ragid Blade:	6 Set
Size:	200025002200mm
Weight:	4t
Capacity:	1-5 T/H
Type:	Hammer Crusher
Object:	Wood
Drive:	Electric
Crushing Style:	Grinding and Impact
Crushing Degree:	Fine Grinding Machine
Compressive Strength (',For Crushing):	>300MPA
Principle:	Roller Culling
Finished Surface:	Thread Process
Tongs' Features:	Adjustable Tongs
Cutter Material:	Hard Alloy

Product Description

1-7T/H Large capacity and low price straw rotary cutter for sale

General introduction of the Rotary Cutter :

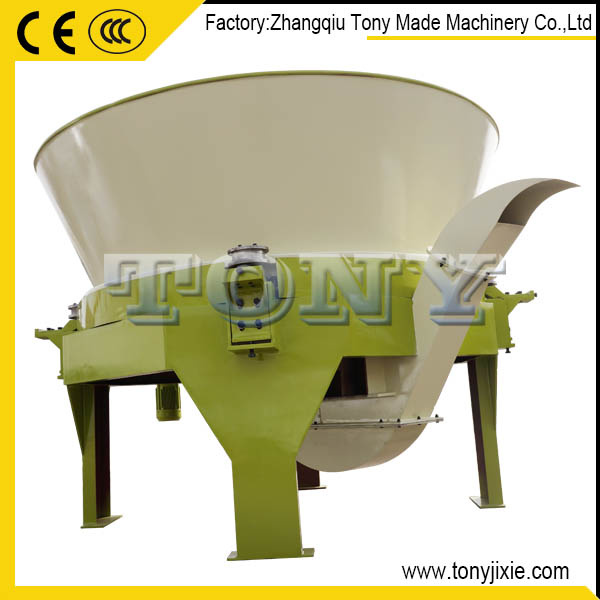

Rotary Cutter

TPX series rotary cutter is mainly used for grinding crop stalks, wheat straw, peanut seeding, sweet potato vine, tobacco stem, cotton stalk, corn stalk, herbage, seaweed and tree branches in bales and heaps.

Introduction:

TPX series rotary cutter is composed of machine frame, rotary cutting device, feeding device and overload protection device. The structure is reasonable and concise using steel forging and cast steel welding technology, durable and convenient for moving. The feeding device adopts 40Cr material sprocket chain driven rotation, with long service life, low damage rate, large torque, high efficiency and uniform performance. Sharp rotary cutting blades and diversified blade matching guarantee the high crushing efficiency.

It can handle various straw bale and branches of different diameters and lengths, suitable for a wide range of moisture content. Four-layer structure, convenient disassembling and transportation.

Characteristics:

1.The turntable can store a large amount of material to realize the intermittent feeding.

2.Rotary disk is provided with a damping plate to seize and rotate the bales for high cutting efficiency.

3.High shredding strength

4.Crushing materials in bales to reduce human labor

Advantages:
1. Low investment and energy consumption,
2. High output
3. High-quality finished products
4. Easy to operate and miantain

Specification of wood crushing machine:

Model	Power (KW)	Capacity(T)	The Number of Blade (Piece)	The Number of Hammers (Slice)	Size (MM)	Weight (T)	Remarks
TPX2000	55-90	1-5	6	18	200025002200	4	Binding is less than 1800
TPX2500	55-110	1-7	6	18	300030002200	5	Binding is less than 2200
TPX3000	90-160	6-12	24	0	350035002500	6	Binding is less than 2500

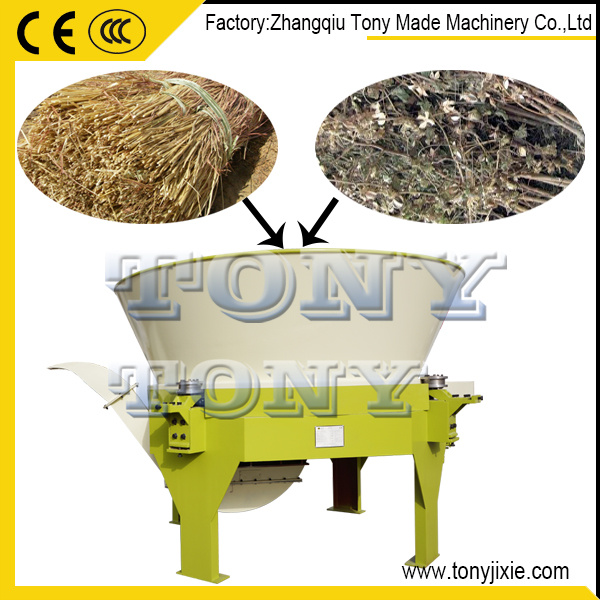

Raw material of wood crusher machine:

crop stalks, wheat straw, peanut seeding, sweet potato vine, tobacco stem, cotton stalk, corn stalk, herbage, seaweed and tree branches in bales and heaps.

About us:

Our factory professional manufacture series single shaft shredder machine/ two axle shredder, we can design the wood crushing machine according to your requirement,if want more details, please contact with us!
