| Supplier: | Shen Zhen Tian Bo Communication Equipment Co., Ltd. |
|---|---|
| Price: | US $ 25/Piece |
| Min Order: | 2/Piece |
| Quantity:: | |
| Trade Terms: | FOB |
|
|
| Prod Model: | TBC=3601E |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Copper Interface: | Rj-45 Port (Auto-Mdi / Mdi-X) Twisted Pair |
| Fiber Interface: | FC |
| Transmission Range: | 0-20km |
| Dimension (W X D X H): | 157*128*31mm |
| Emission: | FCC Class a, CE Class a |
| Operating Environment: | Temperature: 0~50 Degree C |
| Storage Environment: | Temperature: -40~70 Degree C |
| Humidity: | 5~90% Non-Condensing |
| Application: | Communication |
| Certification: | ISO9001 |
Description

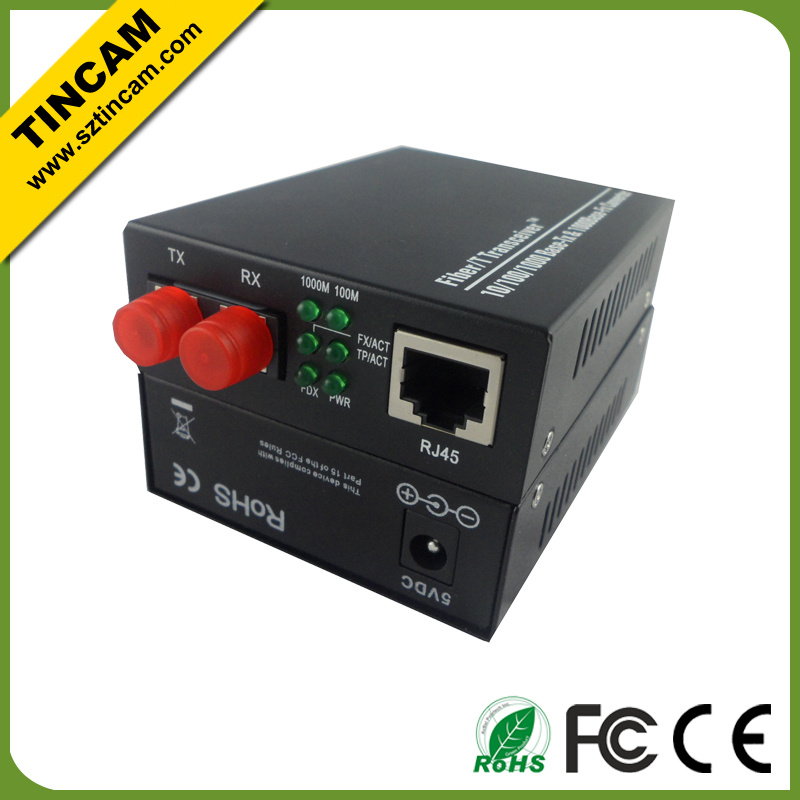

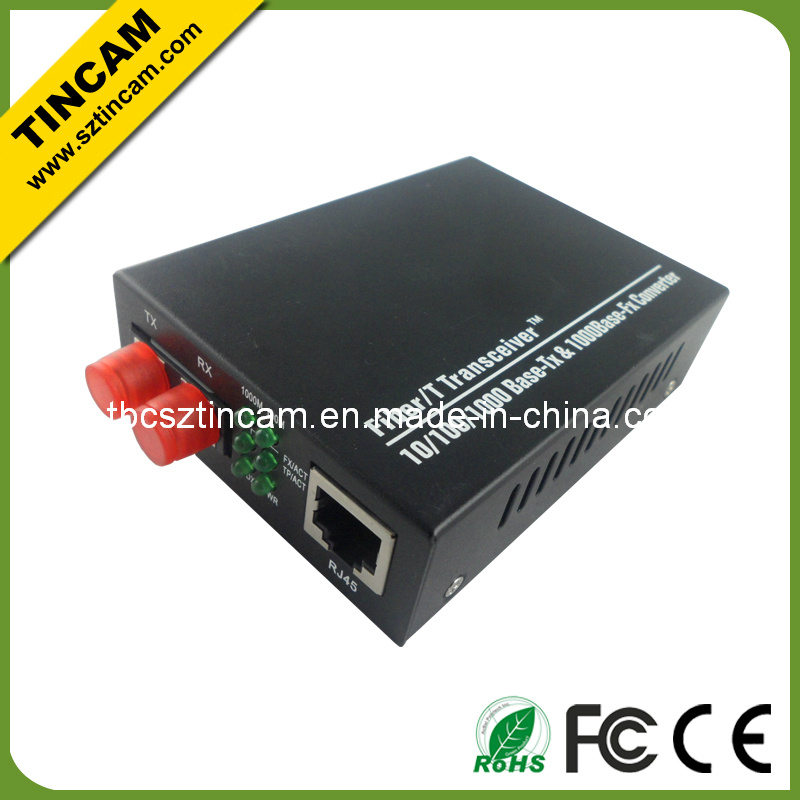

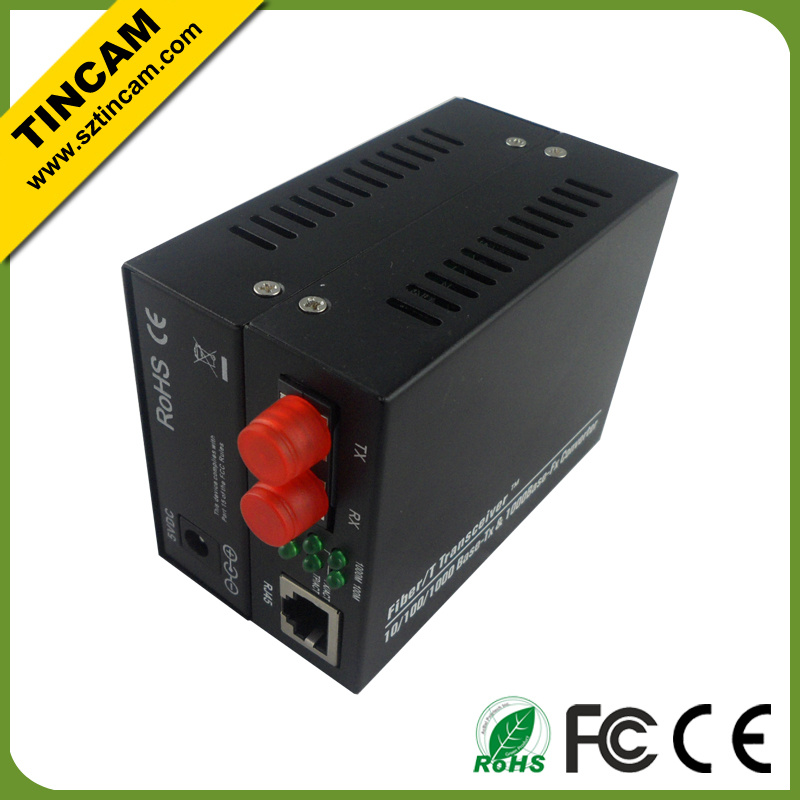

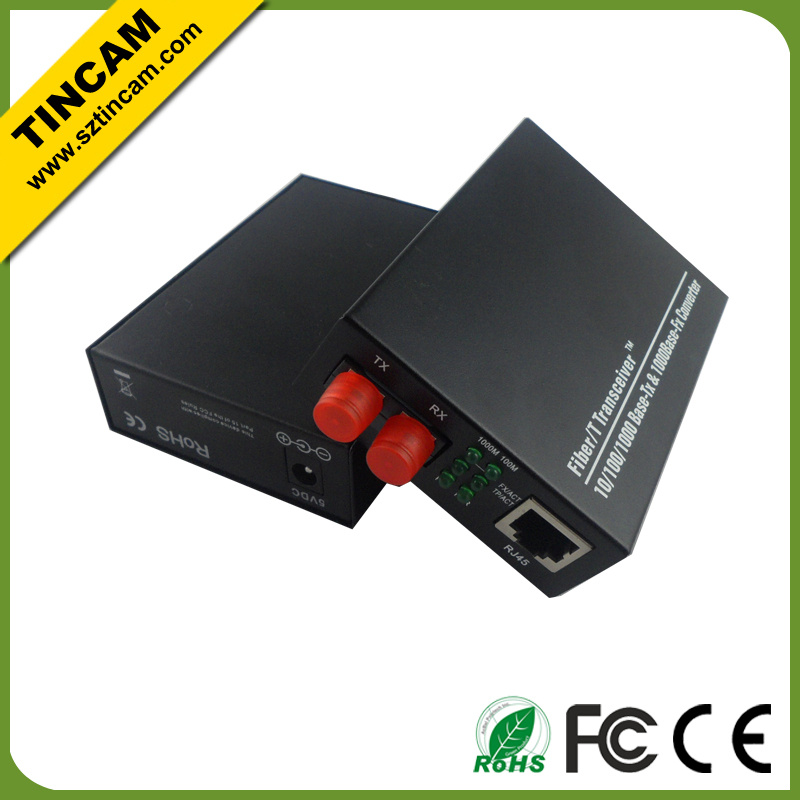

Optical Fiber Transceiver complies with IEEE802.3 and IEEE 802.3u Standards. This Fiber Media converter enables network managers to connect 10 Mbps and 100 Mbps twisted pair network segments and active equipment to fiber optic cabling more cost-effectively than ever.WDM Technology Combines Dual Fiber Cables into Single Fiber .Greatly save the Installation cost of Expensive Fiber Cable. Both a media and data rate converter, features 10/100 auto-negotiation on the twisted pair port while the fiber port operates at 100 Mbps. This Fiber media converters are ideal for any premises FTTD, LAN-to-LAN or LAN-to-WAN fiber networking applications.
Featrures
1. Auto negotiation function allows UTP port to select the transmission mode of 10/100M and Full
Duplex or Half Duplex.
2. UTP port supports MDI / MDI-X auto crossover.
3. Multiple optical interface to be chosen: SC, ST or FC, singlemode / multimode
4. Supporting 1552 Byte packet
5. Internal circuit of prevented thunder could greatly reduce damage of the converter caused by thunderbolt induction.
6. Design of internal or external power supply for selection by users
Specification:
| Standard Protocol | IEEE802.3 | |
| IEEE802.3u | ||
| 1 0/100Base-TX | ||
| 100Base-FX | ||
| Transmission speed | 10M/100M auto-negotiation | |
| Transmission mode | Full-duplex and semi duplex (auto-negotiation) | |
| Conversion mode | Media conversion,storage transmission,direct transmission | |
| Interface | UTP : RJ-45 | Fiber connector : SC/ST/FC |
| Twisted-pair | Cat5 UTP cable (the max distance up to 100m) | |
| F iber Cable | 8. 3/125, 8. 7/125, 9/125, 10/125μm(the max distance up to 20 -120km) | |
| 50/125, 62. 5/125μm(the max distance up to 2km or 5km) | ||
| Wavelength | Multi Mode: 850nm | Single Mode: 1310 /1550 nm |
| Conversion mode | Media conversion,storage transmission,direct transmission | |
| MAC address | 1K | |
| Buffer space | 288KB | |
| Packet length | Storage transmission:2046Bytes,straight-through,infinite. | |
| Time-delay | 9.6us | |
| Bit error rate | <1/1000000000 | |
| MTBF | 8 0,000 hours | |
| Power supply | AC100~2 50 V on media converter rack mounts | |
| Power dissipation | <2.5W | |
| Operating temperature | 0~50 Celsius degree | |
| Storage temperature | -20~70 Celsius degree | |
| Humidity | 5%~90% (no condensation) | |
| Dimensions(mm) | 115 * 77 * 26mm (L*W*H)(card without metal box) | |
