Shenzhen Leo Network Technology Co., Ltd. >> 10/100/1000Mbps Fiber Optic Transceiver with Sc Optic Interface and 2.5W Power

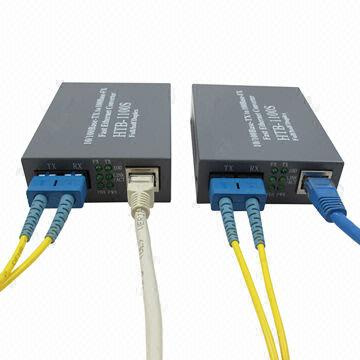

10/100/1000Mbps Fiber Optic Transceiver with Sc Optic Interface and 2.5W Power

Name: 10/100/1000Mbps Fiber Optic Transceiver with Sc Optic Interface and 2.5W Power
Brand: china-manufacturer-directory.com
SKU: 741163115
Availability: InStock
Rating: 4.9 (109 reviews)

Supplier:	Shenzhen Leo Network Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	ST-FMC-1100S-DX
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

We are one of the best quality fiber optic solution products manufactory in China, we have ability to provide the product with the superior quality,reasonable and competitive price.

Features and benefits
1.Easy for upgrading network
2.Unique IC solution applied
3.Supports 10/100 and 10/100/1000Mbps full/half duplex and auto-negotiations
4.Compliant with IEEE802.310Base-t, IEEE 802.3u 100Base-tx and 100Base-FX standards
5.Fiber connectivity up to 2km for multiple mode fiber, 20km for single-mode fiber
6.One auto-MDIX rj-45 connector interface
7.Supports packet length up to 1, 600 bytes
8.Provides fault propagation function for easy cable fault detection
9.8 diagnostic LEDs (100Mbps, fiber full duplex, UTP full duplex fiber link, UTP link, fiber signal detect, fiber far end-fault detect and power)

Fiber Parameters

1.Transmission Fiber
1)Multiple modes: 50/125, 62.5/125, 100/140um
2)Single-mode: 8.3/125, 8.7/125, 9/125 or 10/125

2.Transmission distance
1)Multiple mode: 2km
2)Single mode: 25, 40, 60, 80-120km
3)Cable UTP5:100m

Technical parameters		Indicators parameters
Technical parameters		Multi-mode		Single-mode
Other requirments	Emission wavelength	850/1310	1310		1550DFS
	Transmission distance	0~2	0~25	10~60	15~120
	transmitting power	-14~18.5	-8~-15	-5~0	-5~0
	Receiver sensitivity	-31	-31	-35	-35
	light Saturation	-14	-8	-3	-3
	light loss	3	0.5	0.5	0.25
	fiber interface type	SC ST			SC
Optical feature	Data transceiver Rate	100M bps,10M bps
	High-Speed Cable	256KB
	Work mode	Full-duplex /Half-duplex
	power requirements	DC 5V/1000m A Power
	Working Temperature	0~70
	Store temperature	-40~70ºC
	Relative Humidity	5%~90%
	Built-in size	26mm(H)71mm97mm(D)

Marketing Under "Solitone" Brand

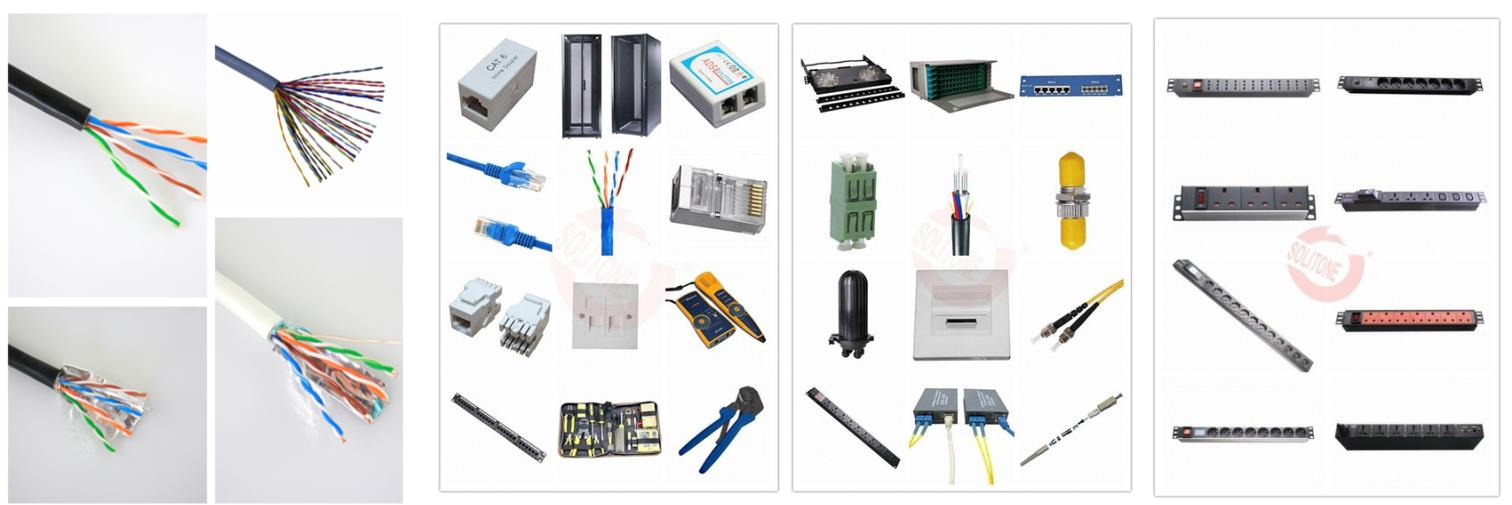

Shenzhen Leo Network Technology has 14 years of experience in supplying network communication products for various applications such as copper network cabling, fiber-optic, network cabinet, security cables and mini LAN SOHO systems to clients in the Americas, the Middle East, Africa, Asia, Western Europe and Australasia. Our products are well marketed under the brand "Solitone".
