1. General Description:

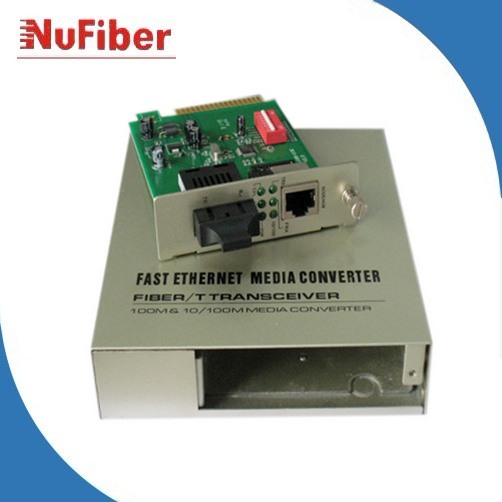

Optical Fiber Converter is a kind of quick enthernet Media Converter with the function of photo electricity switchover between 10BASE-TX or 100BASE-TX and 100BASE-FX. It can extend the conventional 10M Ethernet or 100M Quick Ethernet to 120KM via the quick Ethernet Fiber-optical Line. The stable and reliable switch supply enables long-term operation and makes it convenient to replace the power supply. Full-duplex and half-duplex optional. The configuration of DTE and MPR functions makes it convenient to connect the similar products.
2. Features:
* Inner power or external power optional
* Inner power adopt single slot configuration
* Media converter module could be used with rack mount
* Power supply AC 220V or DC -48V
* Auto identify MDI/MDIX
* Full/half duplex negotiation
* Extend fiber-optic distance up to 120km with single-mode fiber
3. Parameter:
Dimension: 95mm× 70mm× 25mm
Input: Voltage: 220VAC or -48VDC
Power: 4W
Weight: 0.85Kg
Working temperature: -10º C~70º C
Storage temperature: -20º C~80º C
Humidity: 5%~95%(no-condensing)
4. Protocol:
* IEEE802.3 Ethernet (10Mbps)
* IEEE802.1d Building tree protocol
* IEEE802.3u Quick Ethernet (100Mbps)
* IEEE802.1Q VLAN
* IEEE802.1p QOS PRI
* IEEE802.3X Full duplex flux control
* CISCO ISL & VTP protoco
