Product Specifications
| Prod Model: |
P102-9AT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resolution: |
800X480, Support up to 1920X 1440 |
| Contrast Ratio: |
300:1 |
| Brightness: |
250CD/M2 |
| Backlight: |
LED |
| Viewing Angle: |
65° /65° (L/R), 45° /65° (U/D) |
| Input Signal: |
VGA. AV1, Audio R. in&L. in, Audio in&out, S-Vide |
| Input Voltage: |
DC12V± 15% |
| Type: |
Coin Counter |
| Certification: |
CCC, RoHS, ISO |
| Currency Detector Type: |
Desktop Static Detector |
Product Description

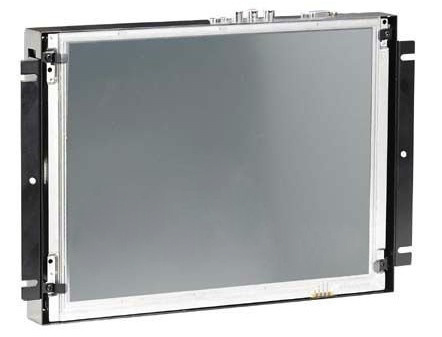

10.2" 16: 9 LCD Metal Frame Touch Monitor with VGA, S-Vdieo Input
Desciption: 10.2" 16: 9 LCD metal frame t monitor
Model: P102-9A
Brightness: 250CD/m²
Touch Screen: 4&5 Wire Resistive Touch(optional)
Touch Interface: USB&RS232 (optional)
DOT Resolution: 800X480 pixels (max to1920× 1440)
Contrast Ratio: 300: 1
Aspect Ratio: 16: 9
Backlight: LED
Viewing Angle: 65° /65° (L/R), 45° /65° (U/D)
Input Voltage: DC12V± 15%
Signal: VGA. AV1, Audio R. In&L. In, Audio in&out, S-video
Power Consumption: 6W
WorkTemperature: -20~60
Store Temperature: -30~70
Unit Size: 287.7L × 149W × 29.5H (mm)
Unit Weight: 1500g
| Description |
| Product Name: | 10.2" 16:9 LCD Metal Frame Touch Monitor with VGA,S-Vdieo Input |
| Product Model: | P102-9AT |
| LCD Module Model: | AT102TN03 V. 1 |
| TFT Display: | 10.2" TFT display with LED Backlight |
| Specification: |
| Touch screen: | 4-wire resistive touch panel |
| Interface of touch screen driver | USB type |
| Dot Resolution: | 800x480 pixels (up to1920× 1440) |
| Brightness: | 250 cd/m² |
| Response time: | Ton: 15ms, Toff: 20ms |
| Dot pitch: | 0.0925(W)X0.276(H) mm |
| Active area: | 222.0(W)X132.48(H) mm |
| Contrast Ratio: | 300: 1 |
| Aspect Ratio: | 16: 9 |
| Backlight: | LED |
| Viewing Angle: | 65° /65° (L/R) 45° /65° (U/D) |
| Input Voltage: | DC12V± 15% |
| Input Signal: | VGA . Video . S-video. Audio(HDMI & DVI for optional) |
| Power Consumption: | ≤ 6W |
| Operation Temperature: | -30° C~85° C |
| Storage Temperature: | -30° C~85° C |
| Unit Size: | 288L × 149W × 30H (mm) |
| Unit Weight: | 1500g |
| Application | Accessories |
| Medical equipment | ？ Home AC Adapter |
| Kiosks | ？ Remote Controller |
| POS terminals | ？ VGA Cable |
| Embedded system | ？ USB Touch Cable |
| Industrial control | ？ Touch Drive Disc(for optional) |
| Security | ？ Touch Pen(for optional) |
Goodwell Technology Limited major in producing and selling the high technology electronic products. Base on the R&D department and the demand of market, we develop many kinds of new products to meet the customer's demand of different period and different market.
Our major products are TFT LCD Monitors, Car Touchscreen monitors, LCD SKD modules, Mobile Embedded Computing Device, Satellite Finder, Photography Monitor.
We have own R&D team major in developing the intelligent meters and the industrial control system and equipment, Display instruments.
Attributing to our strict quality control in components selection before production and performance inspection. Our Products are popular in Europen and North American Countries.
We will develop more new produts and catch up the market change. OEM and ODM are Welcome.
