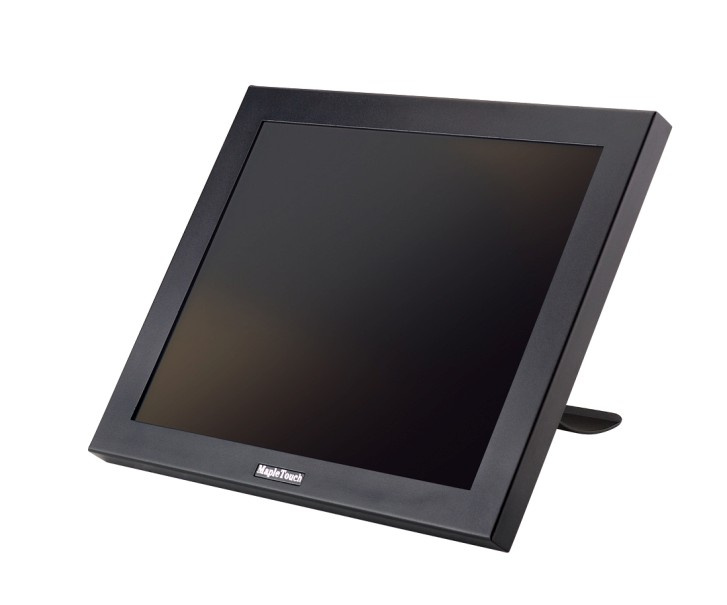

Model PC126-A(ATOM) PC156-A(ATOM) PC176-A (ATOM)
Display Area TFTLCD12.1" TFTLCD15.1" TFTLCD17.1"
Resolution 800*600 1024*768 1028*1024
Contrast Radio 250: 1 450: 1 500: 1
Color Resolution 262K 16.2M 16.2M
Brightness 250CD/M2 250CD/M2 300CD/M2
Standard Collocations:
Mainboard Intel 945GSE
CPU ATOM 1.6GHz
Memory DDRII 1G
HDD SSD 32G
LCD MTBF 50, 000 Hours
Back light MTBF 25, 000 Hours
USB port 4 units
RS232 port 4 units
Audio Interface AC97 Audio
Network Interface 100\1000Mbps high speed ethernet network (wireless network card optional)
I\O Connection:
VGA port dB-15 port
Controller USB
DC Adapter DC12V\5A
Circumstance Condition:
Operation Temperature -10 C~ 35 C
Store Temperature -20 C ~ 60 C
Optional Fittings:
Customer Display Optional
Magnetic Card Reader Optional
Product Certification FCC, CE
Others:
Installing ways Hanging, Wall Mounting, Desktop VESA
Power supply 100V-240VAC
Touch Screen MapleTouch Five-wire ResistiveTouch Screen (Hitting Life: More than 35 million times for any point)
Expand Funtion Can add WiFi, Blueteeth, etc (Optional)
Specifications( Industry) Brand: Mapletouch
Model: PC106-A, PC126-A, PC156-A, PC176-A
Sizes: 10.4inch, 12inch, 15inch, 17inch
|
CPU(GHz) |
1.86G |
|
Core Logic |
Intel Atom D2550 |
|
System Memory (DDRIII) |
2G ,or 4G |
|
OS Support |
Win XP, Win Vista, Win 7, WEPOS, Linux |
|
Display |
|
|
TFT LCD |
15" |
|
Brightness |
250 cd/ m2 |
|
Resolution |
1024x768 |
|
Touch Screen |
mapletouch 5wire resistive |
|
Tiliting Angle(degree) |
15-90 |
|
Storage Device |
|
|
HDD(GB) |
2.5" SSD 32G,optional 320G,SSD 16G |
|
I/O Ports |
|
|
Serial(RS232) |
2 x RS-232 (Maximum extension 6*RS232) |
|
USB |
4 USB-2.0 |
|
PS/2 |
1 |
|
LAN |
1*Realtek RTL8111DL 100/1000Mbps ,can optional two LAN interface |
|
VGA |
1*DB-15 |
|
Cash Drawer(RJ11) |
yes |
|
LPT |
1*DB-25 |
|
Audio |
Realtek ALC892 Audio |
|
Wirelee LAN |
optional |
|
Expansion |
1*PCIex1 ,1*Mini PCI-E Expansion slots |
|
Others |
|
|
Color |
Black , Silver |
|
Certifications |
CE, FCC, CCC, RoHS,CB |
|
Weight (Kg) |
8 |
Guangzhou yulian electronic technology Co., Ltd. is the mainly professional manufacturer in producing mapletouch POS terminals, industrial control systems and multifunction inquiry touch kiosks in China. We have been an innovative and creative force in the development and manufacturing of high quality, high performance systems since 2000. Now our products have obtained the certificates of ISO9001: 2000, CE, FCC, CCC, and widely applied to many fields.
