10-50km Analog Long Range AV Transmitter and Receiver
Product Specifications
| Prod Model: |
ST6300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Frequency: |
1.0-2.0GHz(L Band), 10.7-13GHz(Ku Band) |
| Transmission Distance: |
10-50km |
| Interface: |
AV Interface(BNC) |
| Power: |
AC220V |
| Application: |
Video Transmission |
Product Description

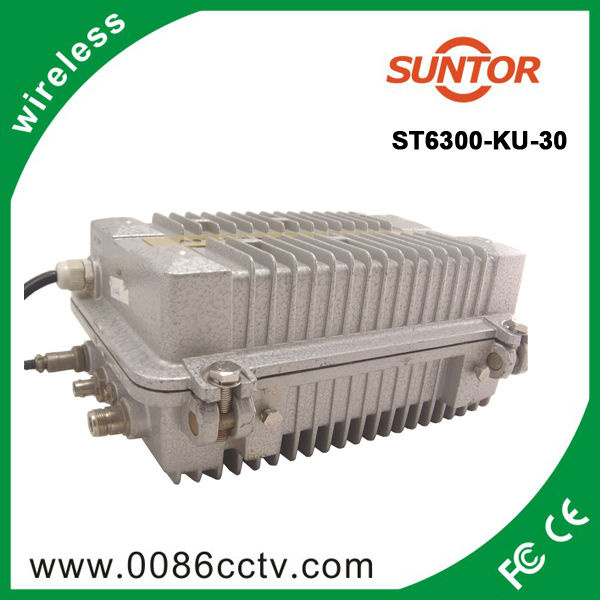

50km Wireless AV Transmission System (ST6300)
The series of ST-6300 microwave TV transmitter can transmit TV signals several ten kilometers away form one place to another. The most advanced GASSFET & technology makes the high quality and stability.
The very low noise figure makes picture clear and enjoyable. This product covers full band of microwave frequency on request and outdoor use available. The specially designed microwave multicarrier transposes (BK/BK Amplifier) with solar cell systems can resolve the problems of blockness of mountains or other objects.
ST-6300 works on FM modulation type (AM type offered on request). Visual and aural signals from camera or other program sources are put into the "Video in " and "Audio in " port of the transmitter, they are emitted through the directional or omni-directional antenna. The microwave signals travels several ten kilometers arriving at the receiving point. The microwave receiver changes it back to visual and aural signals. Then a beautiful picture will be obtained on the screen of your monitor.
INSTALLATION AND CONNECTIONS
1. The RF output port is N-type L 16 or SMA connector, it will be connected with the coaxial cable of 50Ω To the antenna.
2. The video input point is F-type connector. It will be connected by the coaxial cable of 75Ω To the video resource such as camera etc.
3. The Audio and +12VDC power input point are all in a 4-pin connecter. The "pin 1" is "+12VDC". "pin 2" is "audio in", The "pin 3" and "pin 4" are ground point.
4. The diagram of working principle as follows: SPECIFICATIONS OF ST-6300 RF PERFORMANCE
Frequency:
1.0-1.5GHz(L band), 2.3-2.7GHz(S band), 10.7-12.7GHz(Ku band)optional with dealers
Frequency Stability: 0.0005%(standard)
ModulationF. M.
Phase Noise@10kHz: -75dBc
Output Levels: 20-33dBm(Optional)
Output Impedance: 50Ohm
Output Connector: Type "SMA" for Ku-band, "l16" for L-Band and S-Band
AURAL PERFORMAN
Audio Input: 600Ohm balanced/unbalanced 0.5V
Pre-Emphasis: 75us/50us
Frequency Response: 50Hz to 15kHz(+/-0.5dB)
Subcarrier Frequency: 6.5MHz
Distortion: 3%
FM Noise: -50dB
VISUAL PERFORMANCE
Video Input: 75 Ohm unbalanced, 1.0Volt peak to peak
Differential Gain: 5%
Differential Phase: 5°
Signal To Noise Ratio: 55dB
Pre-Emphasis: CCIR STANDARD PAL
GENERAL
Power: 12VDC/300~1500mA
Ambient Temperature: -15° C-+55° C
Relative Humidity: 0.96%
Dimensions(W× D× H) 12"× 9.2"× 3.5"
