Product Specifications

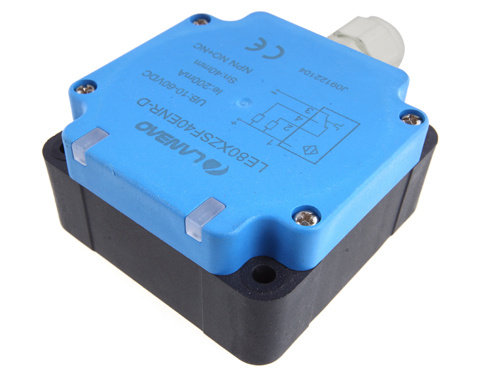

Prod Model: |
LE80XZ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Specification(Mm): |
80*80*40 |
Mounting: |
Flushed/ Non-Flushed |
Sensing Distance: |
50mm, 70mm |
Supply Voltage: |
10-60VDC 3/4wires |
Output: |
PNP/ NPN |
Frequency: |
50Hz/30Hz |
Ambient Temperature: |
-25~+70c |
Connection: |
Terminal/ M12 Connector |
Measuring Principle: |
Inductive Type |
Product Description
W e l c o m e! ! !
Lanbao Sensors____Inductive sensors____Extended sensing distance____Combination type
Note:
----------------------------------------------------------------
Customize for cable length, housing material and shape.
Details:
----------------------------------------------------------------
Installation type: Flushed type/ Non-flushed type optical
Output: NPN/ PNP/ DC/ AC type optical
Connection: Terminal, M12 optical
Housing: Stainless steel, Alloy, Plactis optical.
Low-voltage power supply,
Micro-current design
Apply to alert occasions of inflammable, explosive
Small volume for narowwness space
Non-contact detecting way effectively avoids abrasion, safe and reliable
Advantage:
----------------------------------------------------------------
1. Contactless, no abrasion, high reliability.
2. LED indicator
3. Diameter from φ 4-M30, multi lengths available
4. Cable and connector connection optical
5. Stable performance with professional IC design
6. Short-circuit protection, reverse polarity protection
7. Wide applied in position controlling and counting function.
Model |
LR80XZ |
Specification(mm) |
80*80*40 |
Mounting |
Flushed/ Non-flushed |
Sensing distance |
50mm, 70mm |
Supply voltage |
10-60V DC 3/4wires |
Output |
PNP/NPN N / NO/ NC+NO |
Return difference |
1-20% |
Repeated accuracy |
<3% |
Frequency |
50/30Hz |
Output display |
Yellow LED light |
Polarity protection |
Yes |
Insulation pressure resistance |
1000 V/AC,50/60Hz,60s |
Short-circuit protection |
Yes |
Ambient temperature |
-25~+70C |
Ambient humidity |
35~95% |
Protection degree |
IP67 |
Housing material |
PBT |
Connection |
Terminal/ M12 connector |
Certification |
CE |
