Product Specifications
| Prod Model: |
MSFP-1.25G-D03 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wavelength: |
1310nm, 1350nm |
| Connector: |
Single LC Connector |
| Support: |
Single 3.3V Power Supply |
| Distance: |
3km |
| Data Rate: |
1.25GB/S |
| Hot-Pluggable SFP Footprint: |
Support |
| Operating Temperature Range: |
0c to 70c |
| Compatible With: |
SFP Msa |
| Cage: |
Metal Enclosure, for Lower EMI |
| Power Dissipation: |
Low |
| Certification: |
RoHS |
| Type: |
Single-mode Fiber |
| Connection Structure: |
LC |
| Application: |
Communication |
Product Description

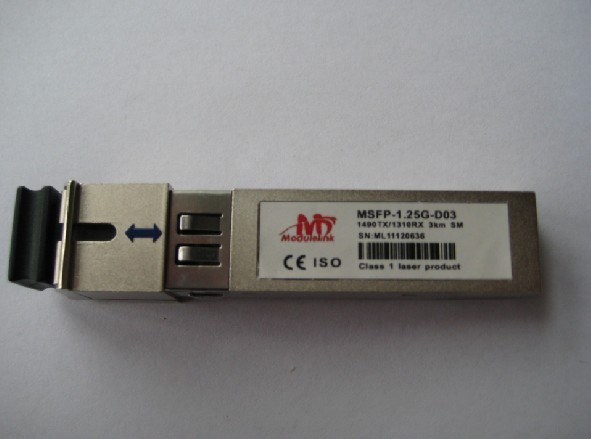

1000base-bx SFP, 1490tx(1550)/1310rx, 3km single fiber bi-directional SFP optical transceiver msfp-1.25g-d03 optical modules
Product features
Up to 1.25 GB/s bi-directional data links
Hot-pluggable SFP footprint
1310nm fp transmitter and 1550 pin receiver for msfp-1.25g-bidi03-r
1550nm fp transmitter and 1310 pin receiver for msfp-1.25g-bidi03-t
Single LC connector
Low power dissipation
Metal enclosure, for lower EMI
Up to 3km point to point transmission
Digital diagnostical management support
Single 3.3V power supply
Compatible with SFP msa
Operating temperature range: 0c to 70c
Applications
Ethernet
Point-to-point FTTX application
Notes:
1. Connected directly to tx data input pins. AC coupled thereafter.
2. Or open circuit.
3. Into 100 ohms differential termination.
4. 20 to 80 %
5. Loss of signal is lvttl. Logic 0 indicates normal operation; Logic 1 indicates no signal detected.
6. Receiver sensitivity is compliant with power supply sinusoidal modulation of 20 Hz to 1.5 MHz up to specified value applied through the recommended power supply filtering network.
