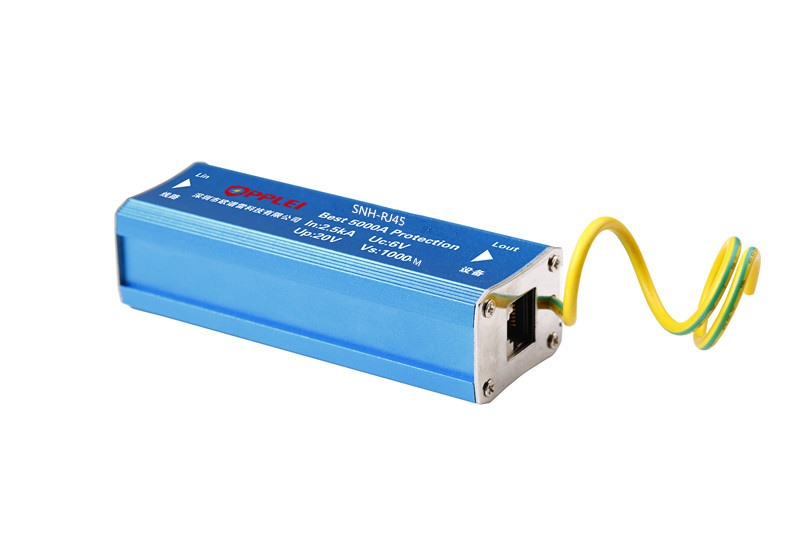

1000m Network Signal Surge Protector with One Port
Product Specifications
| Prod Model: |
SNH-RJ45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE, FCC, National Type Test |
| Brand: |
Tianqin |
Product Description
SNH-RJ45
1000M network signal surge protector with one port
1. Product features
Multi stage surge protection
Gas-Tube + TVS technology
TVS array technology
Dual protection in Common mode and differential mode, multi-channel optional
Low insertion loss
Quick response
High current capacity
Low limited voltage
Single port
2. Applications
Lightning protection of 100/1000Mbps network equipments
Computer
Server
Switch
3. Technical data
| Model | SNH-RJ45 |
| Nominal operating voltage Un | 5V |
| Nominal discharge current In (8/20μs) | 3KA |
| Maximum discharge current Imax (8/20μs) | 5KA |
| Protection level Up (8/20μs,3KA) | ≤20V |
| Response time Ta | ≤1ns |
| Transmission rate | 1000Mbps |
| Insertion loss | ≤0.5dB |
| Protection modes | 1/2, 3/6, 4/5, 7/8 |
| Protection route | 24 |
| Dimension | 85*25*25mm |
| Weight | 81g |
| Mounting type | Series connected before the protected equipments |
| Housing material | A3 steel |
| Index of protection | IP20 |
| Operating environment | Temperature:-40-+85ºC humidity: ≤95% |
| warranty | Five-year warranty, three-year replacement |
| Related items | SNH-RJ45/8, SNH-RJ45/16, SNH-RJ45/24 |
