100AMP Electrical Terminal Block Connectors

Product Specifications

Prod Model:	H/U-10012
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Keywords:	Terminal Block
Model:	U Type
Rated Current:	3A~100A
Rated Volate:	400V
Color:	White/Black/Customized
Wire Size:	2.5mm2~40mm2
Connection Rows:	1~12
Material:	PE,PA,PP
Port:	Ningbo/Shanghai
Working Temp.:	-40~65 Degree
Application:	Lighting
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Contact Termination Form:	Screws Fixed
Shape:	Strip
Brand:	Ygen

Product Description

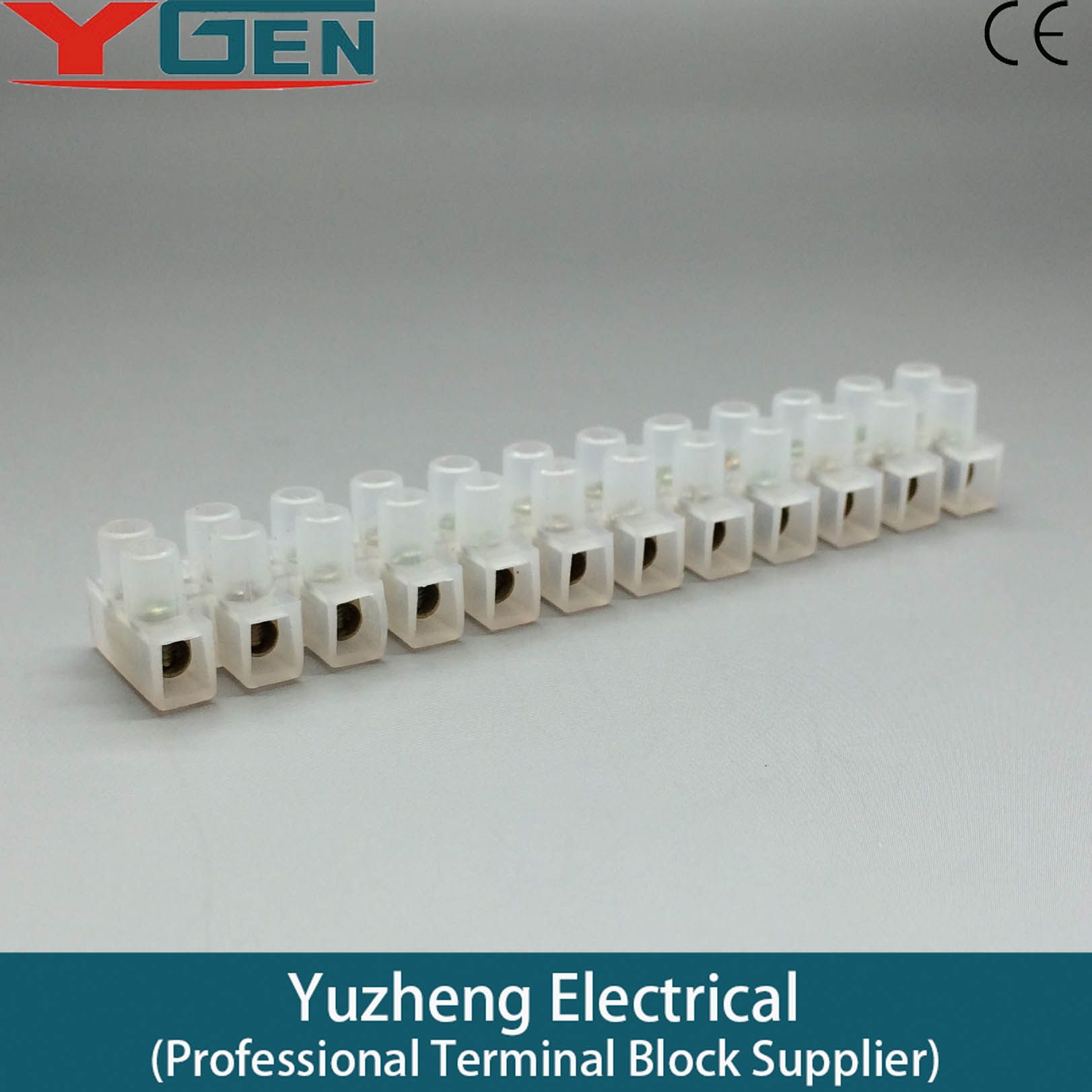

electrical terminal block connectors

Material:

Plastic have PA, PP, PE.
PA , Polyamide 66, 94-2 grade .Inflaming retarding,good resist dissolve ,good bounce impact fore. Working termpertaure:-30°C to 110°C.
PP, Polypropylene, inflaming retarding, low transparency, low rigidity, good bounce impact force.Working Temperature:-40°Cto 90°C.
PE, Polyethylene, good pliability, transparence, extensibility, resist dissolve, radiation. Working termpertaure:-40°C to 65°C.

Brass insert and Steel Screws.

Product Name	Feedthrough Terminal Block
Type:	H/U Type
Model No.	3A,5A,6A,10A,15A,20A,30A,60A,80A,100A,150A
Material:	PE/PP/PA, Brass insert and Steel screws
Working Temp:	-40°C - 65°C
Color:	Natural, Black, other color customized
Current:	3A~ 100A
Cable Wire:	2.5mm2~40mm2
MOQ	Small orders can be accepted.
Payment Term	T/T,L/C,Western Union,Paypal
Port:	Ningbo / Shanghai
Delivery time	5~15 working days,subject to the order quantity
Supply ability	500000 Pieces / Month
Packaging	10PCS + Heat Shrink Film + Label + Export Carton
HS Code	8536900000
Origin country	Zhejiang, China
Certificate	CE

Data of terminal block (H&U type)

Rated Current	Cable Size (mm2)	Pole NO.	Rated Voltage	L	A	H	W	B	Packing	Material
H-3A	2.5	12	400V	91	6	12	15.5	8	10 PCS	PE PP PA
H-10A	10	12	400V	110	8.4	15	17	10.5	10 PCS	PE PP PA
H-15A	12	12	400V	126	10	16	20	12	10 PCS	PE PP PA
H-20A	14	12	400V	131	11.5	18.5	19	13	10 PCS	PE PP PA
H-30A	16	12	400V	165	12	19	22.5	15	10 PCS	PE PP PA
H-100A	35	12	400V	224	22	31	36	21	10 PCS	PE PP PA
H-150A	40	12	400V	254	22	36	44	24	5 PCS	PE PP PA
U-3A	2.5	12	400V	88	6	11	15	8	10 PCS	PE PP PA
U-6A	6	12	400V	101	6.5	13	12.5	9.5	10 PCS	PE PP PA
U-10A	10	12	400V	110	8.4	12	17	10.5	10 PCS	PE PP PA
U-15A	12	12	400V	125	10	14	19	12	10 PCS	PE PP PA
U-20A	14	12	400V	125	10	14	19	12	10 PCS	PE PP PA
U-30A	16	12	400V	160	120	15	21.5	15	10 PCS	PE PP PA
U-60A	25	12	400V	168	13.5	21	24	16.5	10 PCS	PE PP PA
U-80A	30	12	400V	200	15	25	33	17	10 PCS	PE PP PA

Packaging Details:

H type terminal block 10PCS/bag (Compressed package).and accoding to different size to packing.Usually divided into 1200PCS,1000PCS,800PCS,500PCS,300PCS,200PCS,100PCS in a carton.More flexible packaging, saves the size, save freight cost!we also accept special packing ideas.Customer satisfaction is our biggest mission.


Service and Warranty:
1.Good services: We treat you as our friends.
2. Packaging: Package will do after several discussions with you.
3. Reasonable price: The products are directly from our factory. So it saves a lot secondary cost.
4. Good quality: The MP only will start after you confirm the samples and the  MP products will do 100% inspection before shipping .                                                                                                                             5.Aiming to get repeat orders from 80%customer after the trial orders
6.Responsible after-sales service
7.OEM service provided
