Shanghai Davey Machinery Co., Ltd. >> 100HP Variable Speed Screw Air Compressor

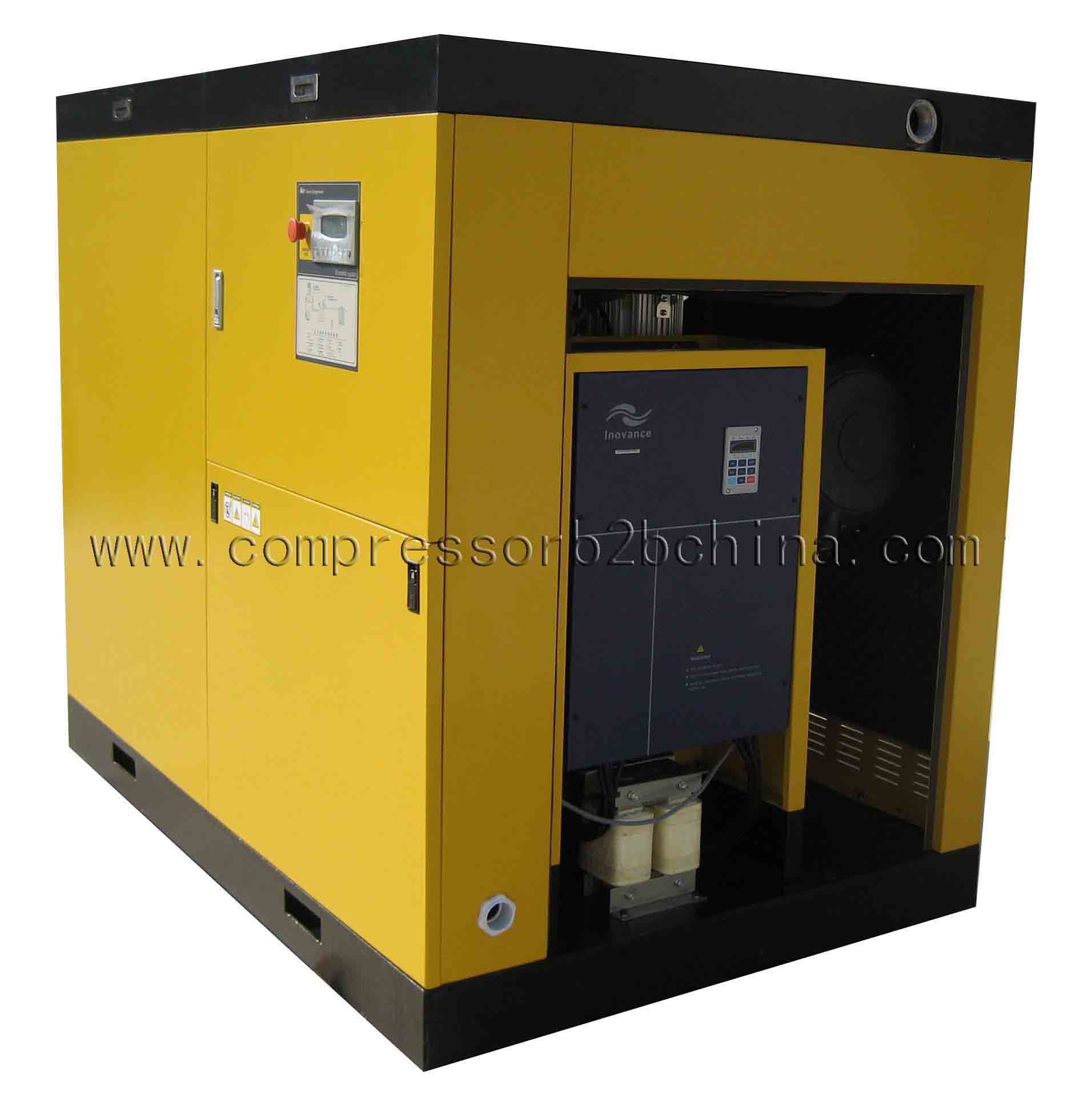

100HP Variable Speed Screw Air Compressor

Name: 100HP Variable Speed Screw Air Compressor
Brand: china-manufacturer-directory.com
SKU: 635722795
Availability: InStock
Rating: 4.4 (60 reviews)

Supplier:	Shanghai Davey Machinery Co., Ltd.
Price:	US $ 11900-12200/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	VSC-75
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Screw
Performance:	Low Noise
Drive Mode:	Electric
Power Source:	AC Power
Configuration:	Stationary
Material:	Carbon Steel
Piston Type:	Semi-Closed
Lubrication Style:	Lubricated
Application:	Low Back Pressure Type
Mute:	Mute

Product Description

Model: VSC75A, oil injected screw compressor
Free air delivery: 4.0--13.0 m3/min, 140--458 cfm
Rated operating pressure: 8 bar
Main motor: 100HP/75KW, TEFC/IP54/1.15 S. F/1480 RPM
Power supply: 380-415V/50Hz/3pH
Rotor speed: 4000 RPM
Control type: Microprocessor
Driven type: Belt/ Couping
Cooling type: Air cooling
Residual oil content: Less than 3 ppm
Oil volume: 70 liters
Delivery air temp: Less than 8º C above ambient temp
Operating condition: Less than 45º C of ambient temp
Noise level: Less than 78± 2 dB(A)
Dimension: 1900mm*1260mm*1600mm
Weight: 2000 kg
Exhaust hole: G-2 inch
Inverter: Siemens, ABB, Huicun

Screw air compressor is a machine which is designed according to the operational principle that twin-screw rotation cause changes of air cubic content.
Pressure of Air Compressor
The introductions of the pressure unit which is often used in screw air compressor
Operating pressure, commonly known as exhaust pressure which is the maximum pressure of exhaust air form air compressor.

	Pressure	F. A. D	Main Motor Power		Noice Level	Oulet
Model	Bar	m3/min	Kw.	Hp	Db(A)	Connection
SC 11 VSD	7.5	0.54-1.8	11	15	61	G3/4"
SC 15 VSD	7.5	0.67-2.0	15	20	61	G3/4"
SC 18 VSD	7.5	0.93-3.1	18	25	67	G1"
SC 22 VSD	7.5	1.15-3.8	22	30	69	G1"
SC 30 VSD	7.5	1.6-5.2	30	40	72	G1-1/4"
SC 37 VSD	7.5	2.0-6.8	37	50	73	G1-1/4"
SC 45 VSD	7.5	2.4-7.8	45	60	73	G1-1/4"
SC 55 VSD	7.5	3.2-10.5	55	75	73	G2"
SC 75 VSD	7.5	4.1-13.6	75	100	75	G2"
SC 90 VSD	7.5	5.0-16.4	90	125	77	G2"
SC 110 VSD	7.5	6.3-20.8	110	150	79	DN65
SC 132 VSD	7.5	7.2-24.0	132	175	80	DN65
SC 160VSD	7.5	8.4-28.0	132	175	80	DN65

DMC---A leading air & CNG compressor manufacturer for over 10 years

---ISO 9001 and CE certified

---Global competitive price and guaranty

---High quality integrated with Italy technology

---Customer over 20 countries in the world

DMC is a manufacturer in air compressor and CNG compressor industry. We have over 10 years experience in export business. Valued customers are at US Canada Mexico Argentine Peru Colombia Germany Italy Finland Poland Australia etc. Complete lines units with CE marked and ISO 9001.

European original screw airend and valve are be used to guarantee quality.

Our products line include:

--compact silent designed series PACK (5-20HP)

--3 in 1 compressor with dryer and air receiver series PACK-TA (5-20HP)

--stationary series SC (25-350HP)

--frequency variable speed drive series VSC (25-180HP)

--diesel portable series DSC (80-330HP)

--CNG gas compressor

Inherit excellence traditions of European compressor design, the core components of DMC compressor, such as screw air end and control valve, are all from European company. The air compressor products has quality performance of reliability, save energy, silent to meet customers more higher demand to compress air, reduce used cost and save money for customers instantly.

100% of our compressors are tested by using the latest inspection equipment and techniques, to assure the highest degree of product manufacturing quality and mechanical reliability.
