Product Specifications
| Prod Model: |
SN-RJ45/POE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Tandem Arrester |
| Certification: |
CE, FCC, National Type Test |
| Brand: |
Tianqin |
Product Description

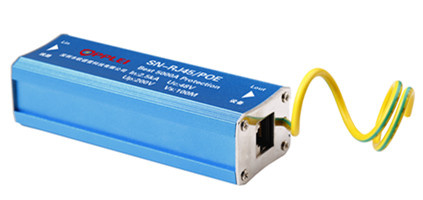

SN-RJ45/POE
100M POE signal surge protector with one port
1. Product features
Low insertion loss
Quick response
Low residual voltage
Injects regular CAT.5 input and 48VDC power input into PoE type output
Multi. Protection circuits, Gas-Tube+ TVS technology ensuring excellent performance
Dual protection in common mode and differential mode
TVS array technology, low capacitance
Multi-Strike Capability
2. Applications
Lightning protection of 10/100Mbps POE equipments
CAT5e and CAT5 compatible
PDH, SDH, SPDH
LAN, FDDI, CDDI, ATM,WLAN
Industrial control
802.3af
3. Technical data
|
Model | SN-RJ45/POE |
| Network | Nominal operating voltage Un | 5V |
| Nominal discharge current In (8/20μs) | 3KA |
| Maximum discharge current Imax (8/20μs) | 5KA |
| Protection level Up (8/20μs,3KA) | ≤20V |
| Response time Ta | ≤1ns |
| Transmission rate | 100Mbps |
| Insertion loss | ≤0.5dB |
| Protection modes | 1/2, 3/6 |
| Power | Nominal operating voltage Un | 48V |
| Nominal discharge current In (8/20μs) | 3KA |
| Maximum discharge current Imax (8/20μs) | 5KA |
| Protection level Up (8/20μs,3KA) | ≤150V |
| Response time Ta | ≤1ns |
| Protection modes | 4/5, 7/8 |
| Connector type | RJ45 |
| Mechanical parameters | Protection route | 24 |
| Dimension | 28(H)×48(W)×110(L)mm |
| Weight per unit | 120g |
| Mounting type | Series connected before the protected equipments |
| Housing material | A3 steel |
| Index of protection | IP20 |
| Operating environment | Temperature:-40-+85ºC humidity: ≤95% |
| Others | warranty | Five-year warranty, three-year replacement |
| Related items | SN-RJ45/POE/16,SN-RJ45/POE/24,SN-RJ45/POE/8 |
