Product Specifications
| Prod Model: |
NIC-10GDSFP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PCB Dimensions: |
13.8 Cm X 6.9 Cm |
| Chipset: |
Intel82599es |
| Motherboard Integrated: |
Separate Network Card |
| Type: |
Wired |
| Application: |
Server |
| Frequency Range: |
Single Frequency |
| Type Of Network: |
10-Gigabit Ethernet |
| Connecting Medium: |
Optical Fiber, Multi or Single Mode |
| Field: |
Notebook, iPad.Tablet, PC |
| Bandwidth: |
10gbps |
| Interface: |
Pcie*8 |
| Transmission Rate: |
10gbps |
Product Description

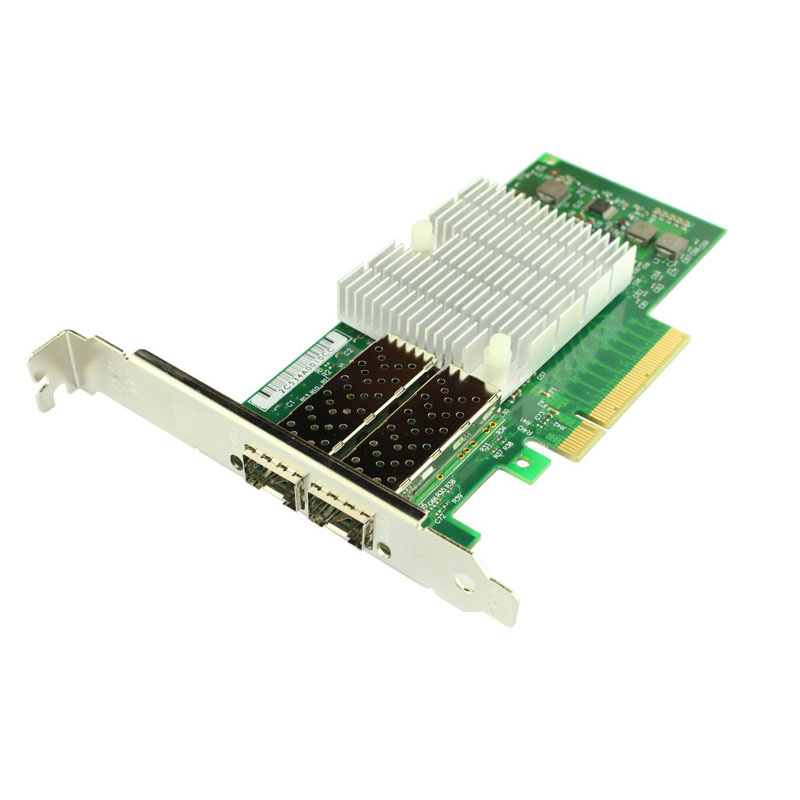

Phynam NIC-10GDSFP is based on intel JL82599ES 10 Gigabit Ethernet Controller. It is PCI-Express X8 network interface card that contains two 10 Gigabit SFP ports on a PCI-Express adapter.
| Host Interface: |
| PCI Express X8 lanes |
| Support PCI Express Base Specification 2.0 (5GT/s) |
| Low-Profile Adapter |
| Low power |
| SFP+ cage |
| Performance Features: |
| IPV4 and IPV6 Supports for IP/ TCP and IP/UDP Receive Checksum offload |
| Fragmented UDP checksum offload for Packet Reassembly |
| CPU utilization- the 82599 supports reduction in CPU utilization, mainly by supporting Receive Side Coalescing (RSC) |
| Support for 16 virtual machine Device Queues ( VMDq) per port |
| Support Direct Cache Access (DCA) |
| Advanced memory architecture reduces latency by preceding TSO packets. A TSO packet may be interleaved with other packets going to the wire |
| Minimized device I/O intterupts using MSI and MSI-X |
| Offload of TCP / IP / UDP checksum calculation and TCP segmentation |
| Large on chip receive packet buffer (512 KB) |
| Large on chip transmit packet buffer (160KB) |
| Supports the VPD (Vital Product Data) capability defined in the PCI specification ver. 3.0 |
| Time sync- IEEE1588- Precision Time Protocol (PTP) |
| Supports the BCN (Backward Congestion Notification) protocol in addition to the EEDC functionality |
| LAN Features: |
| IEEE 802. x flow control support |
| IEEE 802.1q VLAN tagging support |
| IEEE 802.1p layer 2 priority encoding |
| Jumbo Frame (up to 15.5KB) |
| Link Aggregation and Load Balancing |
| RFC2819 RMON MIB statistics |
| TCP Segmentation Offload Up to 256KB |
| Ipv6 Support for IP/TCP Receive Checksum Offload |
| LEDs indicator for link/Activity |
| Packing List |
1 x Network Card
1 x CD |
