Product Specifications
| Prod Model: |
active optical cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model 1: |
Active Optical Cable |
| Model 2: |
SFP+ Aoc |
| Model 3: |
SFP+ Dac |
| Model 4: |
SFP+ Copper Cable |
| Cable Type 1: |
Fiber Cable |
| Cable Type2: |
Copper Cable |
| Rate: |
10g SFP+ |
| Cable Length: |
1m 3m 5m 7m 10m ... |
| Type: |
Fiber Transceiver |
| Certification: |
FCC |
| Condition: |
New |
| Wiring Devices: |
SFP+ Cable |
Product Description
New designing with low price Compatible Cisco 40g qsfp transceiver with aoc cable
10G SFP+ AOC active optical cable
10G SFP+ DAC direct attach cable copper cable
40G QSFP+ to 10g sfp+ active optical cable
40G QSFP+ to 10g sfp+ direct attach cable copper cable

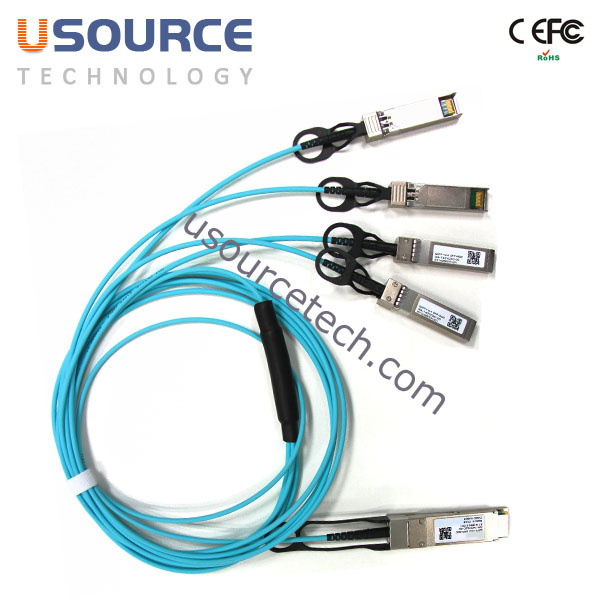

40G QSFP+ to 4x SFP+ AOC (Cisco QSFP-4X10G-AOC (1M, 2M, 3M, 5M, 7M, 10M) QSFP to four SFP+ active optical breakout cables)
Model | Description |
| QSFP-4X10G-AOC | 1 Metre |
| QSFP-4X10G-AOC | 2 Metre |
| QSFP-4X10G-AOC | 3 Metre |
| QSFP-4X10G-AOC | 5 Metre |
| QSFP-4X10G-AOC | 7 Metre |
Features
QSFP+ AOC end:
Compliant to the 40GBASE-SR4 and XLPPI Specification per
IEEE 802.3ba-2010 and supporting 40G-IB-QDR / 20G-IB-DDR /10G-IB-SDR applications
Compliant to the industry standard SFF-8436 QSFP+
Specification
Power Level 1: Max Power < 1.5 W
Operate at 10.3125 Gbps per channel with 64b/66b encoded data for 40GbE application and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDR application
Each 4× SFP+ end:
Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor "IPF"
Maximum power dissipation 350 mW
Active Optical Cable Assembly:
0 to 70 C degree case temperature operating range
Proven High Reliability 850 nm technology: Rayoptek VCSEL transmitter and Rayoptek PIN receiver
Hot pluggable for ease of servicing and installation
Two Wire Serial interface
Utilizes optical fiber for high density and thin, lightweight cable management
Applications
40GbE and 10GbE break-out applications for Datacom switch and router connections
40G to 4×10G density applications for Datacom and Proprietary protocol applications
Datacenter
Description
The Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4× SFP+ Active Optical Cable break-out solution is intended for 40G to 4×10G applications. This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 ×2.5G IB single IB SDR applications. This product is leveraged from USource Technologies QSFP+ to QSFP+ Active Optical Cable product and SFP+ Active Optical Cable product. This AOC incorporates USource Technologies' proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
