Product Specifications
| Prod Model: |
SCB11 10KV 30-2500KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Three |
| Application: |
Power |
| Coil: |
Core-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Cooling Method: |
Dry-type Transformer |
Product Description

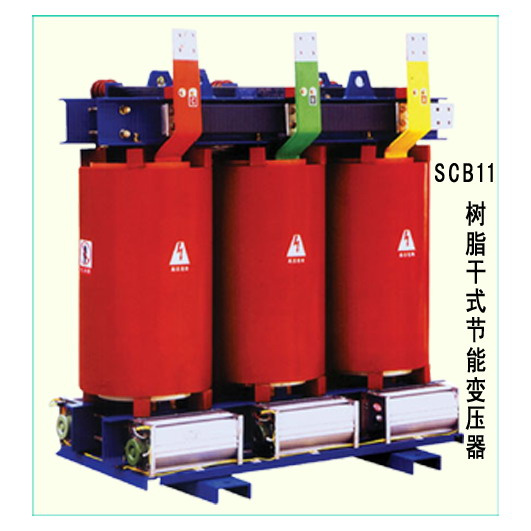

10kv 30-2500kVA Dry-Type Transformer
According to the market demand for low-loss energy-saving 10KV three-phase Resin Dry-Type Transformer, our company independently developed 10KV, 30 ~ 25000kVA, SCB11 series products. In order to improve the reliability of products, the existing mature technology is adopted in the design, the core material adopts 30Q110 high-quality cold-rolled silicon steel sheet, 45 degree oblique three joint structure, core pillar adopts binding band, iron yoke is a through pulling plate structure, in order to reduce the los. The core coated with F rust-proof resin paint and the imported SIGNODE - special binding belt in order to enhance the core strength, lower the noise, clamps is made of steel. High voltage winding is segmented layered structure, composed of double glass fiber-covered wire winded, inner surface using glass fiber grid cloth as the framework, and the vacuum pressure of resin casting condition, the impact of voltage winding can bear 75KV. 35KV power frequency withstands voltage, partial discharge in 5PC. Low voltage winding for foil type structure, composed of copper foil winding, vacuum casting, the winding has good short circuit characteristics and overload capacity. High and low pressure both using class F insulation material. Compared to the SCB11 and SC9 type transformer, no-load loss dropped by an average of 22%, the load loss is reduced by an average of 11%; With a higher level of performance, annual operating costs by an average of 12.5%, operation reliability, Therefore, after the promotion of this series of products, it will bring us obvious social benefit and economic benefits.
Our company supplys different kinds of transformers and other related products, including: Dry-type transformer, oil-immersed transformer, trunk-type transformer, reactor, switch cabinet and amorphous alloy transformer.
We have accumulated rich experience and good sales performance during the past 10 years. Last year sales had reached 100 million RMB. And now we begin to open a new prospect to welcome a wider market, the global market.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers' need. With the high quality and competitive price, we are looking forward your inquiry and make a good corporation in the near future.
