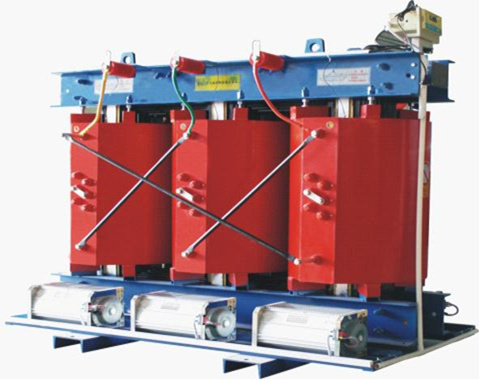

SC series resin insulation dry-type power transformer
Model Number:SC(B)(Z)9,10,11
Usage: Power
Phase:Three,3
Coil Structure: Toroidal
Coil Number: Autotransformer
winding material:copper
Packaging & Delivery
Packaging Detail:standard exporting wooden case or bare
Delivery Detail: 2 weeks
Specifications
Certificate of recognition:ISO9001 CCC
Reliable structure
Excellent material
Good technology and economic performance
The power transformer is low loss,low noise ,excellent fireproof and dampproof . No maintenance .
Workshop and office's photo:
Normal specifications as below :
|
technical specification of 10kV SC(B)(9/10)(11)SERIES dry-type transformer insulated with resin |
rated capacity
( kVA ) |
rated voltage(kV) |
connection symbol |
no-load loss(W) |
on-load loss(W) |
no-load current |
impedance voltage |
overall dimensions |
distance between two bottom rails |
weight |
|
high voltage |
low voltage |
SC(B)(10) |
SC(B)(9) |
SC(B)(10) |
SC(B)(9) |
(%) |
(%) |
a*b*h(mm) |
horizontal*vertical(mm) |
(kg) |
|
30 |
11 10.5 10 6.3 6 |
0.4 |
Yyn0 or Dyn11 |
190 |
220 |
710 |
750 |
2.4 |
4 |
1000*610*880 |
550*550 |
425 |
|
50 |
270 |
310 |
1000 |
1060 |
2.4 |
1060*610*995 |
550*550 |
400 |
|
80 |
370 |
420 |
1380 |
1460 |
1.8 |
830*750*1060 |
550*700 |
520 |
|
100 |
400 |
450 |
1570 |
1670 |
1.8 |
910*750*1030 |
550*700 |
640 |
|
125 |
470 |
530 |
1850 |
1960 |
1.6 |
910*750*1030 |
550*700 |
710 |
|
160 |
540 |
610 |
2130 |
2250 |
1.6 |
995*800*1050 |
550*750 |
835 |
|
200 |
620 |
700 |
2530 |
2680 |
1.4 |
1000*800*1090 |
550*750 |
935 |
|
250 |
720 |
810 |
2760 |
2920 |
1.4 |
1020*800*1225 |
550*750 |
1120 |
|
315 |
880 |
990 |
3470 |
3670 |
1.2 |
1060*800*1260 |
550*750 |
1350 |
|
400 |
980 |
1100 |
3990 |
4220 |
1.2 |
1060*850*1260 |
550*800 |
1520 |
|
500 |
1160 |
1310 |
4880 |
5170 |
1.2 |
1130*850*1260 |
660*800 |
1765 |
|
630 |
1300 |
1460 |
5960 |
6310 |
1 |
6 |
1320*850*1400 |
660*800 |
2065 |
|
800 |
1520 |
1710 |
6960 |
7360 |
1 |
1320*1000*1320 |
820*950 |
2295 |
|
1000 |
1770 |
1990 |
8130 |
8610 |
1 |
1480*1000*1470 |
820*950 |
2810 |
|
1250 |
2090 |
2350 |
9690 |
10260 |
1 |
1480*1000*1470 |
820*950 |
3095 |
|
1600 |
2450 |
2760 |
11730 |
12400 |
1 |
1570*1000*1690 |
820*950 |
4090 |
|
2000 |
3050 |
3400 |
14450 |
15300 |
0.8 |
1630*1000*1845 |
820*820 |
4815 |
|
2500 |
3600 |
4000 |
17170 |
18180 |
0.8 |
1750*1200*1965 |
1070*950 |
6250 |
|
Tapping range:±5% or ±2*2.5%;Frequency:50Hz |
|
The sizes aforesaid are only for reference,for the design of the product has been improving.Please contact us if you have special requirements. |
