Product Specifications
| Prod Model: |
DZ47LE-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current (a): |
6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Rated Voltage (V): |
230, 400 |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CCC |
| Operation: |
Manual Type |
| Installation: |
Insert |
| Speed: |
Normal Type Circuit Breaker |
| Structure: |
RCCB |
| Poles Number: |
1p+N, 2p, 3p, 3p+N |
Product Description
Why choose us?
1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
Application

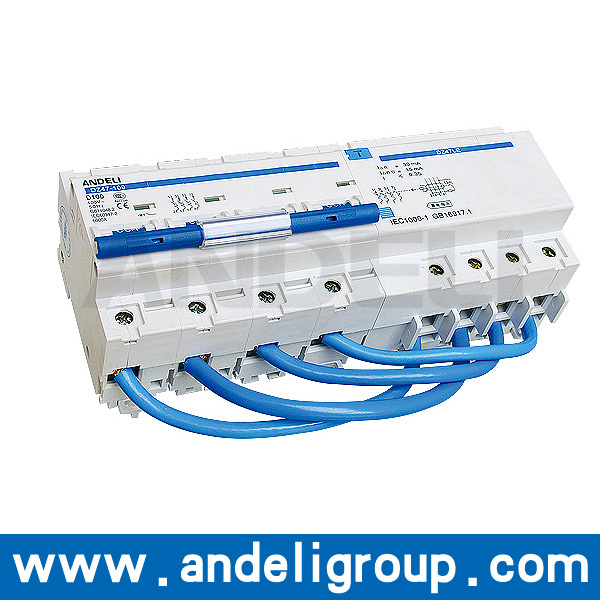

DZ47LE-100 is applicable to a line of AC 50Hz/60Hz, rated voltage 230V for single pole two-wire, 2-pole or 400V for 3-pole, 3-pole 4-wire, 4-pole and rated current up to 40A. It can protectthe line and motor from overload and short circuit. It can also be used for infrequent line conver-sion and infrequent motor start. It conforms with the standards of IEC60947-2.
|
Type |
DZ47LE-100 |
|
Pole |
1P+N, 2P |
3P, 3P+N, 4P |
|
Rated current (A) |
63, 80, 100 |
|
Rated voltage(V) |
230 |
400 |
|
Rated short circuit breaking capacity Icn(KA) |
6 |
|
Rated residual making/breaking capacity Im(A) |
2000 |
|
Rated residual action current In(A) |
0.03, 0.1, 0.3 |
|
Rated residual non-action current Ino(A) |
0.5In |
|
Over voltage protection grade |
280V± 5% |
Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.
With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.
Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.
Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.
Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
